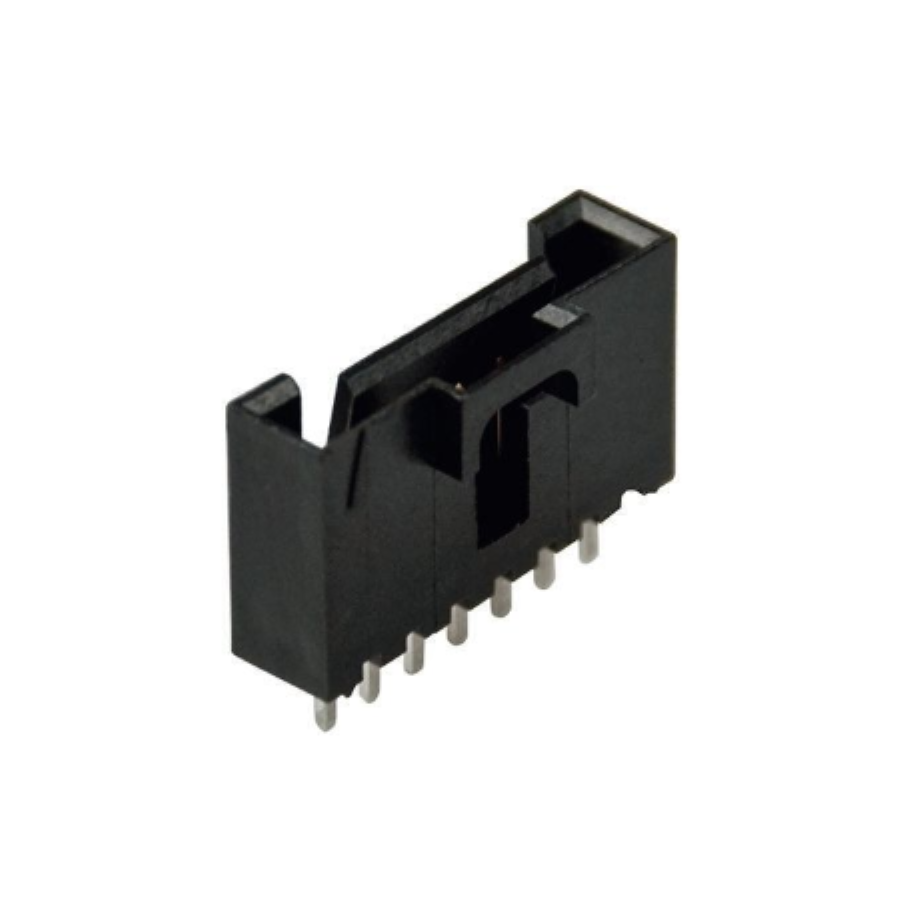

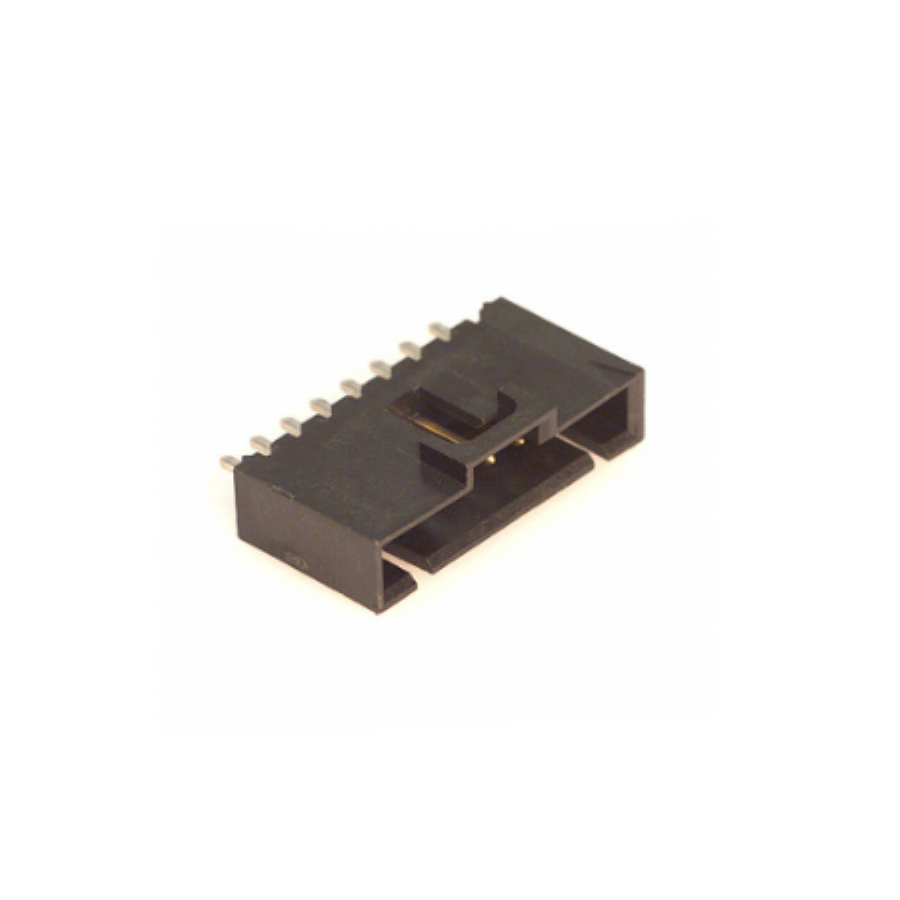

70543-0007
Manufacturer:
Molex
Mfr.Part #:
70543-0007
Datasheet:
Description:
Headers and Wire Housings Through Hole Shrouded Number of Positions:8 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Termination | Through Hole |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Height | 12.07 mm |
| Material | Brass |
| Packaging | Tube |
| Voltage Rating | 250 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Copper |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA, UL |
| Number of Circuits | 8 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Black |
| Gender | Male |
| Number of Contacts | 8 |
| ELV | Compliant |
| Body Material | Glass, Polyester |
| Connector Type | Shrouded |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Housing Material | Thermoplastic |
| Contact Resistance | 30 mΩ |
| Housing Color | Black |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Mating Post Length | 6.1 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
| Termination Post Length | 3.3 mm |
Stock: 5365
Distributors
pcbx
pcbxUnit Price$0.71985
Ext.Price$0.71985
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.71985 | $0.71985 |
| 10 | $0.68822 | $6.88220 |
| 25 | $0.63314 | $15.82850 |
| 50 | $0.58247 | $29.12350 |
| 100 | $0.53585 | $53.58500 |
| 300 | $0.49296 | $147.88800 |
| 500 | $0.45351 | $226.75500 |
| 1000 | $0.41720 | $417.20000 |
