70553-0001
Manufacturer:
Molex
Mfr.Part #:
70553-0001
Datasheet:
Description:

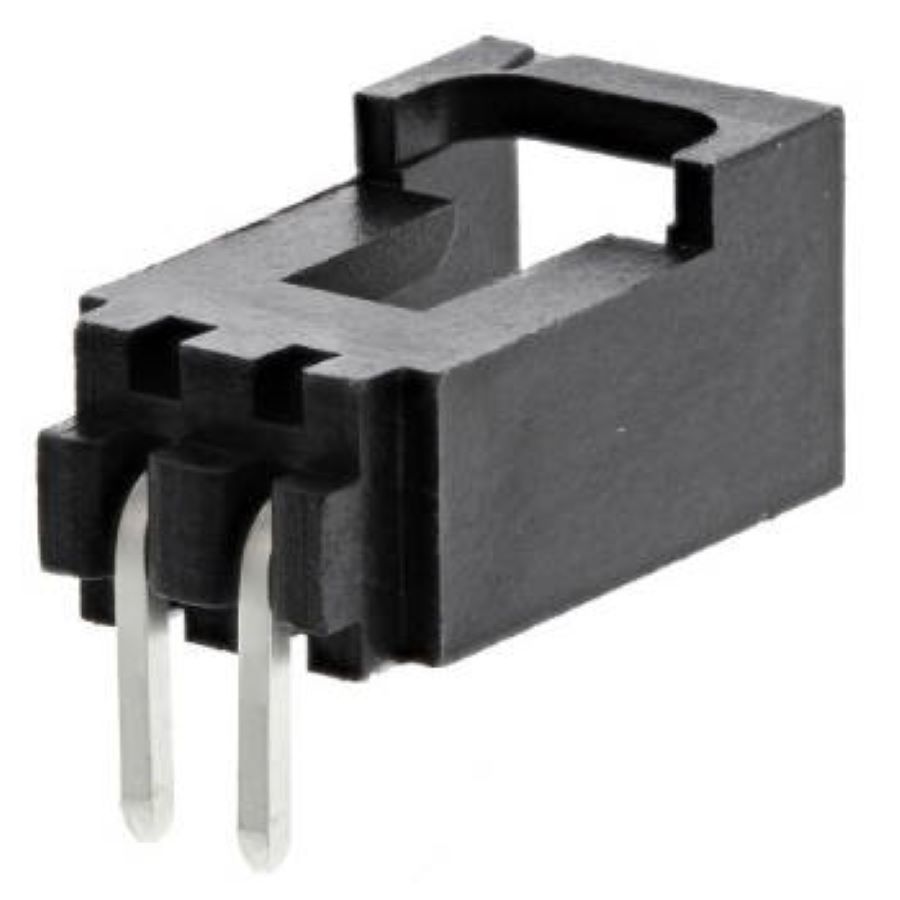

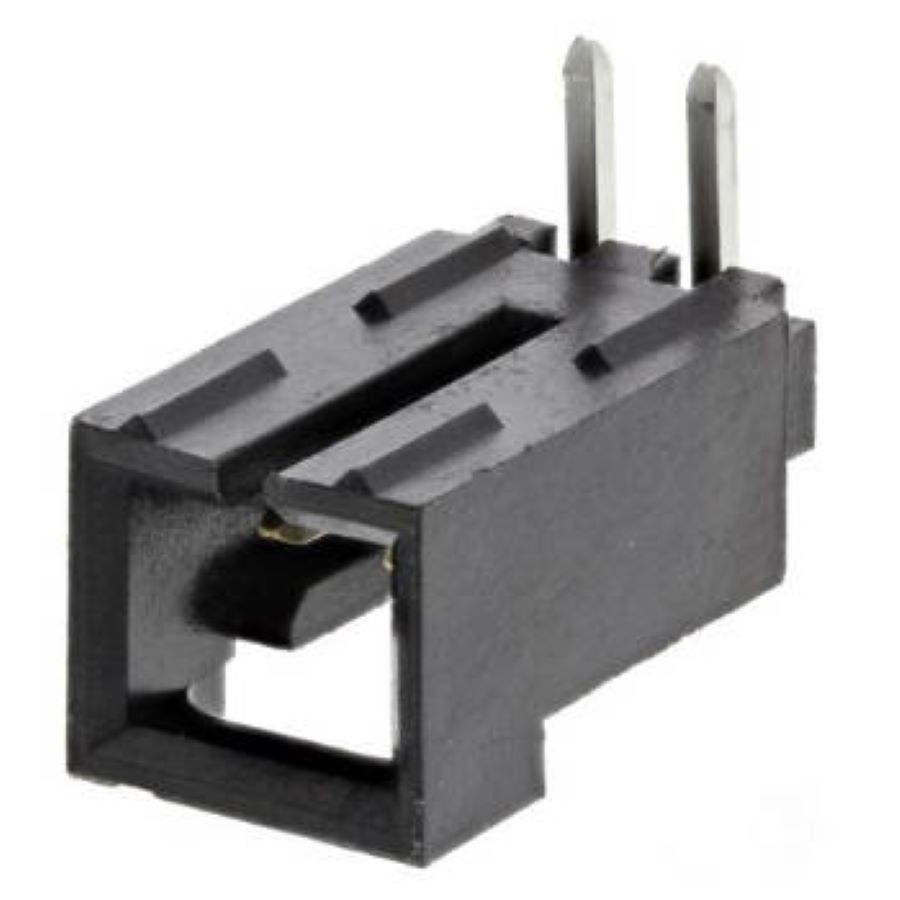

Headers and Wire Housings Through Hole Header Number of Positions:2 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Height | 7.12 mm |
| Material | Brass |
| Packaging | Tube |
| Voltage Rating | 250 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze, Gold, Nickel |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA, UL |
| Number of Circuits | 2 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Black |
| Gender | Pin (Male) |
| Number of Contacts | 2 |
| ELV | Compliant |
| Connector Type | Header |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Thermoplastic |
| Contact Resistance | 30 mΩ |
| Housing Color | Black |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Mating Post Length | 6.1 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
| Termination Post Length | 3.3 mm |
Stock: 8936
Distributors
pcbx
pcbxUnit Price$0.49415
Ext.Price$0.49415
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.49415 | $0.49415 |
| 10 | $0.46764 | $4.67640 |
| 25 | $0.34710 | $8.67750 |
| 50 | $0.32966 | $16.48300 |
| 100 | $0.31309 | $31.30900 |
| 300 | $0.29736 | $89.20800 |
| 500 | $0.28242 | $141.21000 |
| 1000 | $0.26823 | $268.23000 |
| 3000 | $0.25475 | $764.25000 |
| 5000 | $0.24194 | $1209.70000 |
