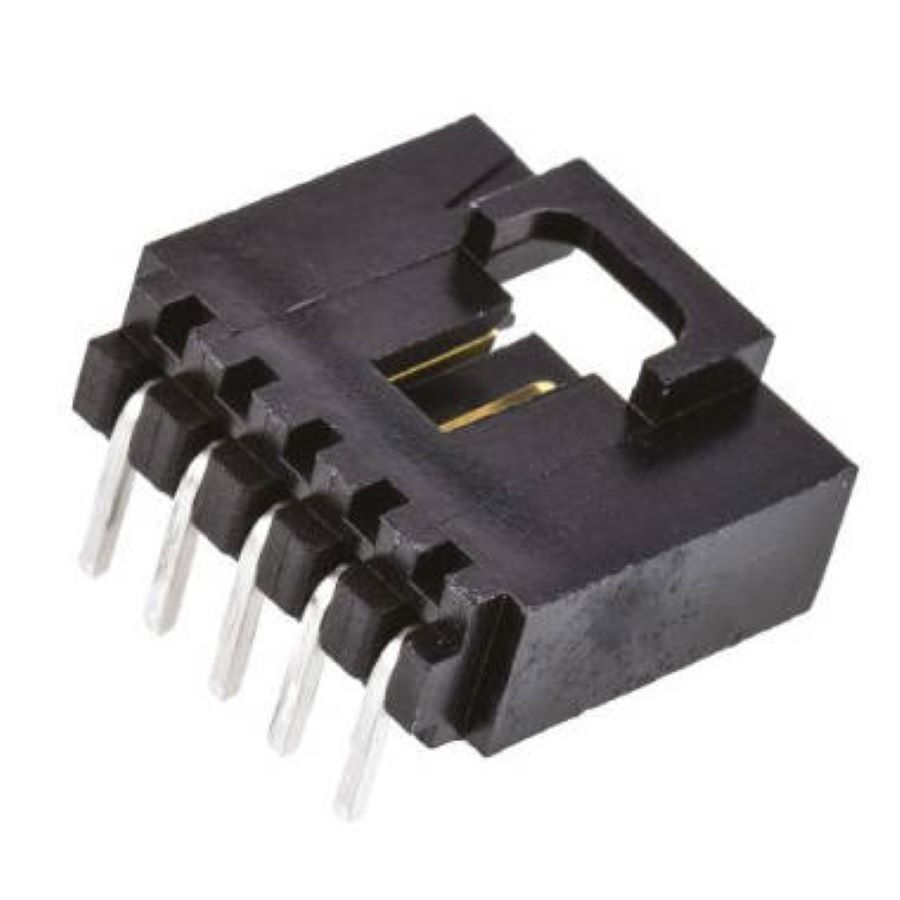

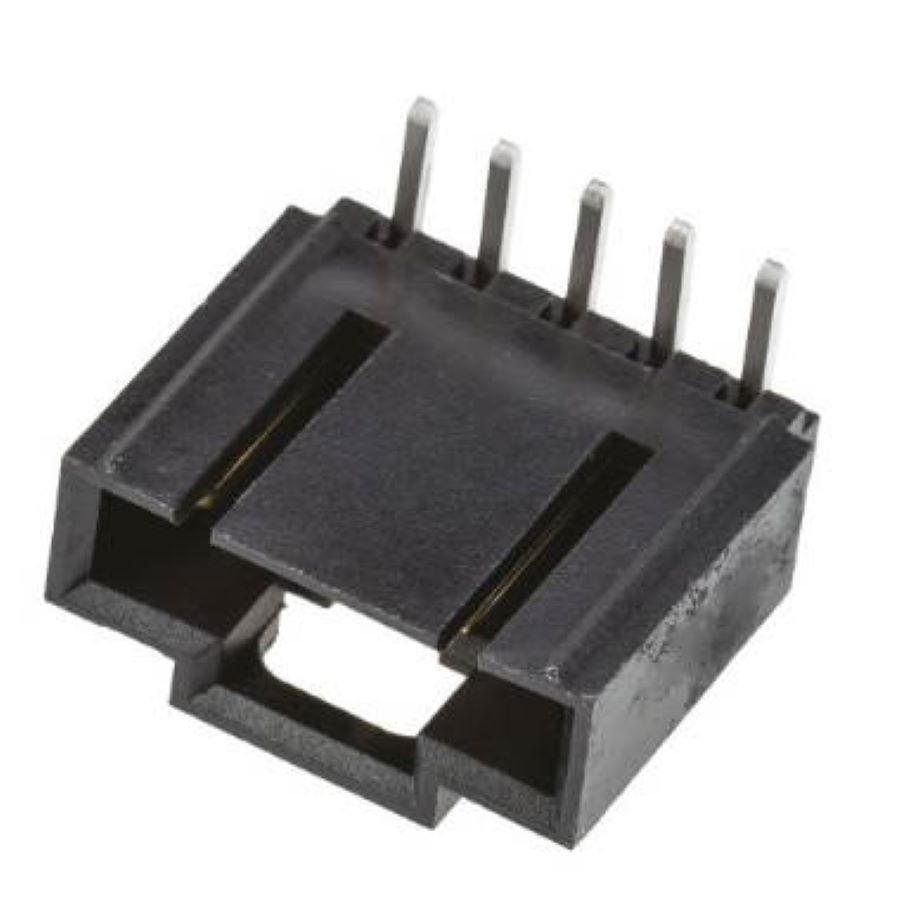

70553-0004
Manufacturer:
Molex
Mfr.Part #:
70553-0004
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:5 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 5 |
| Material | Brass |
| Packaging | Tube |
| Voltage Rating | 250 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA, UL |
| Number of Circuits | 5 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Black |
| Gender | Pin (Male) |
| Number of Contacts | 5 |
| ELV | Compliant |
| Connector Type | Header |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Housing Material | Thermoplastic |
| Contact Resistance | 30 mΩ |
| Housing Color | Black |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Mating Post Length | 6.1 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
| Termination Post Length | 3.3 mm |
Stock: 3913
Distributors
pcbx
pcbxUnit Price$0.88827
Ext.Price$0.88827
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.88827 | $0.88827 |
| 10 | $0.85750 | $8.57500 |
| 25 | $0.73866 | $18.46650 |
| 50 | $0.65060 | $32.53000 |
| 100 | $0.57304 | $57.30400 |
| 300 | $0.50473 | $151.41900 |
| 500 | $0.44456 | $222.28000 |
| 1000 | $0.39156 | $391.56000 |
