705530002
Manufacturer:
Molex
Mfr.Part #:
705530002
Datasheet:
Description:

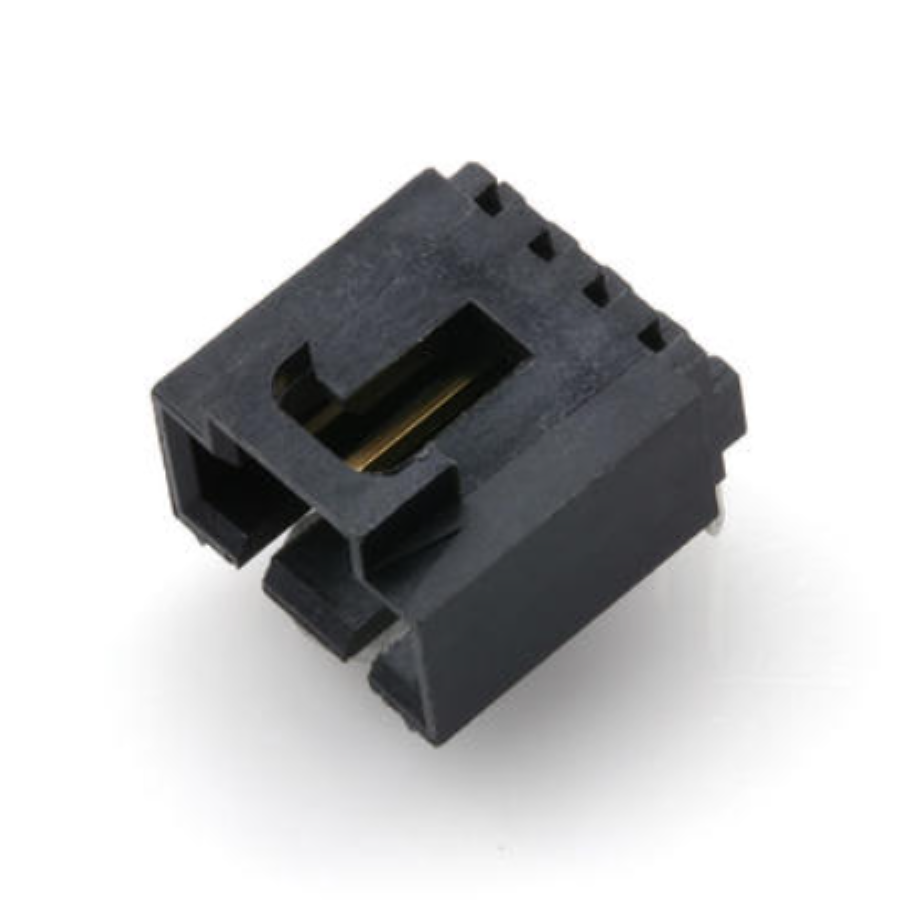

Headers and Wire Housings Through Hole Header Number of Positions:3 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Height | 7.12 mm |
| Material | Brass |
| Packaging | Tube |
| Voltage Rating | 250 V |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA, UL |
| Number of Circuits | 3 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 8 months ago) |
| Color | Black |
| Gender | Male |
| Number of Contacts | 3 |
| ELV | Compliant |
| Connector Type | Header |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Housing Material | Thermoplastic |
| Contact Resistance | 30 mΩ |
| Housing Color | Black |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Contact Gender | Male |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 8 months ago) |
| Country of Origin | US |
| Termination Post Length | 3.3 mm |
