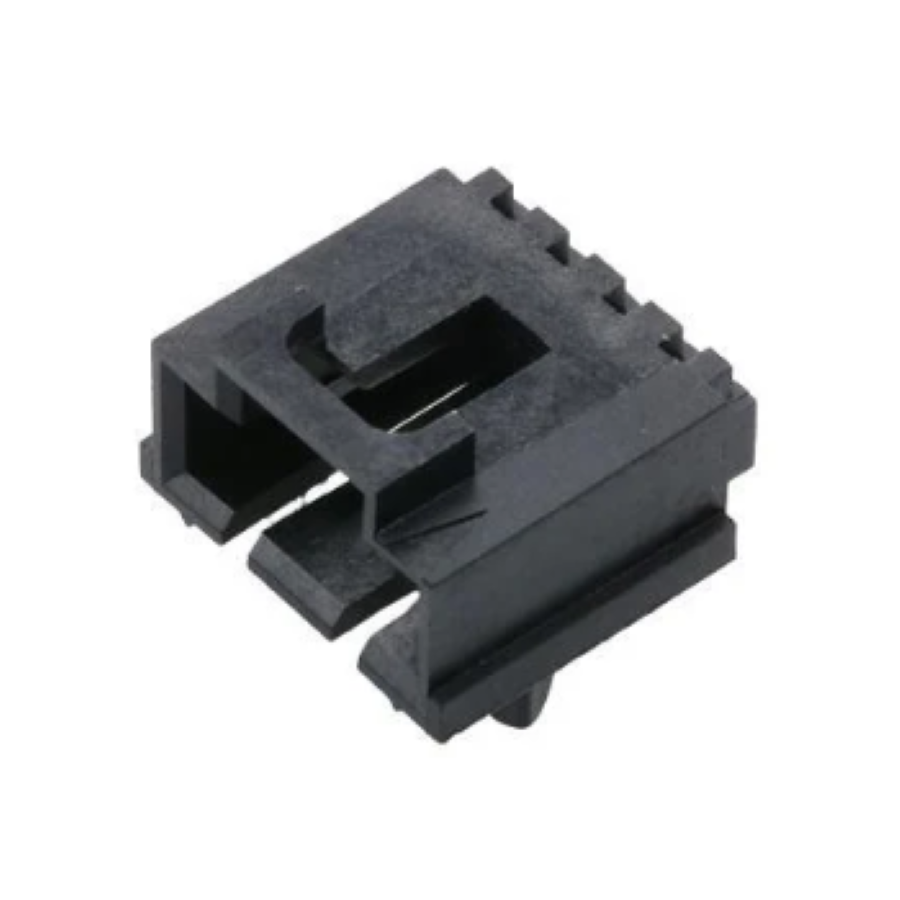

70555-0037
Manufacturer:
Molex
Mfr.Part #:
70555-0037
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:3 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Length | 101.19 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Height | 6.04 mm |
| Material | Brass |
| Packaging | Tube |
| Voltage Rating | 250 V |
| Depth | 11.93 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Insulation Resistance | 1 GΩ |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze, Copper |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Max Current Rating | 3 A |
| Max Voltage Rating (DC) | 250.25 kV |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 3 |
| Orientation | Right Angle |
| Operating Supply Voltage | 250 V |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Black |
| Gender | Pin (Male) |
| Number of Contacts | 3 |
| ELV | Compliant |
| Connector Type | Header |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Housing Material | Polycyclohexylenedimethylene |
| Contact Resistance | 10 mΩ |
| Max Voltage Rating (AC) | 475 V |
| Housing Color | Black |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Mating Post Length | 6.1 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
| Termination Post Length | 3.3 mm |
Stock: 3125
Distributors
pcbx
pcbxUnit Price$0.60101
Ext.Price$0.60101
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.60101 | $0.60101 |
| 10 | $0.51040 | $5.10400 |
| 25 | $0.43687 | $10.92175 |
| 50 | $0.41805 | $20.90250 |
| 100 | $0.40004 | $40.00400 |
| 300 | $0.38280 | $114.84000 |
| 500 | $0.36631 | $183.15500 |
| 1000 | $0.35052 | $350.52000 |
