70ADH-6-ML0
Manufacturer:
Bourns
Mfr.Part #:
70ADH-6-ML0
Datasheet:
Description:

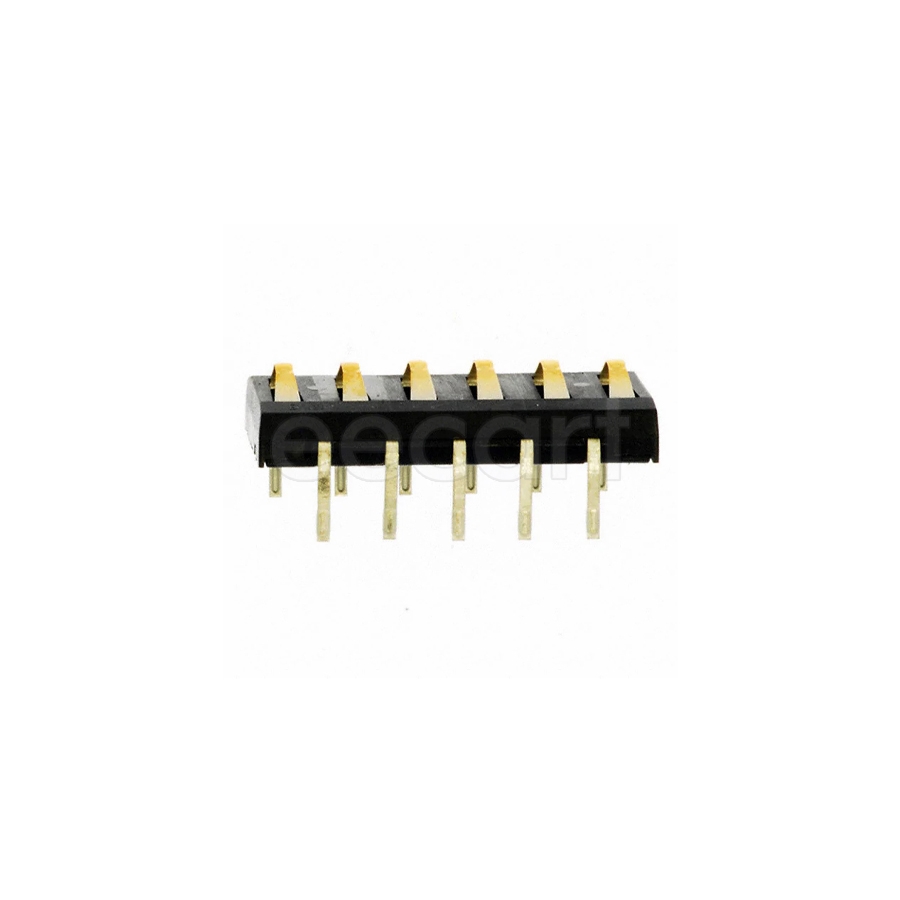

Power Connectors Through Hole Compression Contact, Male Male
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 30 V |
| Length | 23.7 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Tube |
| Depth | 11.2 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Pitch | 4 mm |
| Number of Terminals | 6 |
| Max Voltage Rating (DC) | 30 V |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Color | Black |
| Gender | Male |
| Number of Contacts | 6 |
| Connector Type | Compression Contact, Male |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Housing Material | Thermoplastic |
| Number of Ports | 1 |
| Housing Color | Black |
| Number of Batteries | 6 |
| Contact Gender | Male |
| RoHS | Compliant |
Stock: 3356
Distributors
pcbx
pcbxUnit Price$1.71440
Ext.Price$1.71440
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.71440 | $1.71440 |
| 10 | $1.58092 | $15.80920 |
| 25 | $1.45783 | $36.44575 |
| 50 | $1.34433 | $67.21650 |
| 100 | $1.23969 | $123.96900 |
| 300 | $1.17124 | $351.37200 |
| 500 | $1.10658 | $553.29000 |
| 1000 | $1.05378 | $1053.78000 |
