7112S0825X01LF
Manufacturer:
Amphenol
Mfr.Part #:
7112S0825X01LF
Datasheet:
Description:

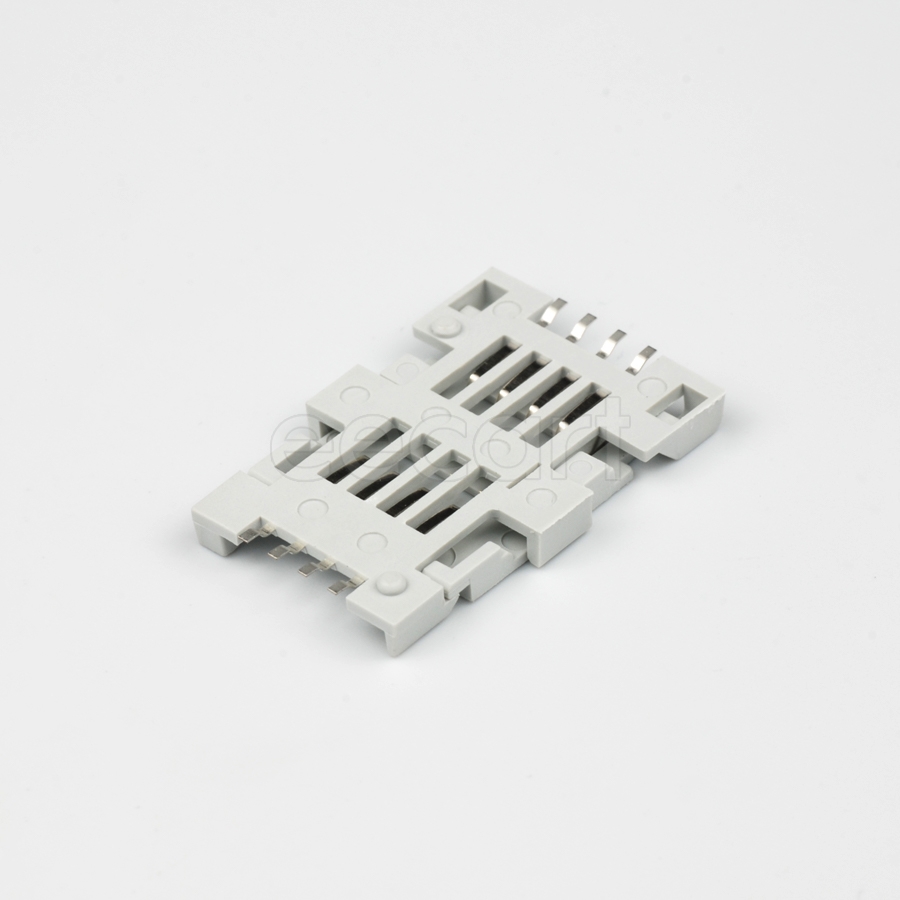

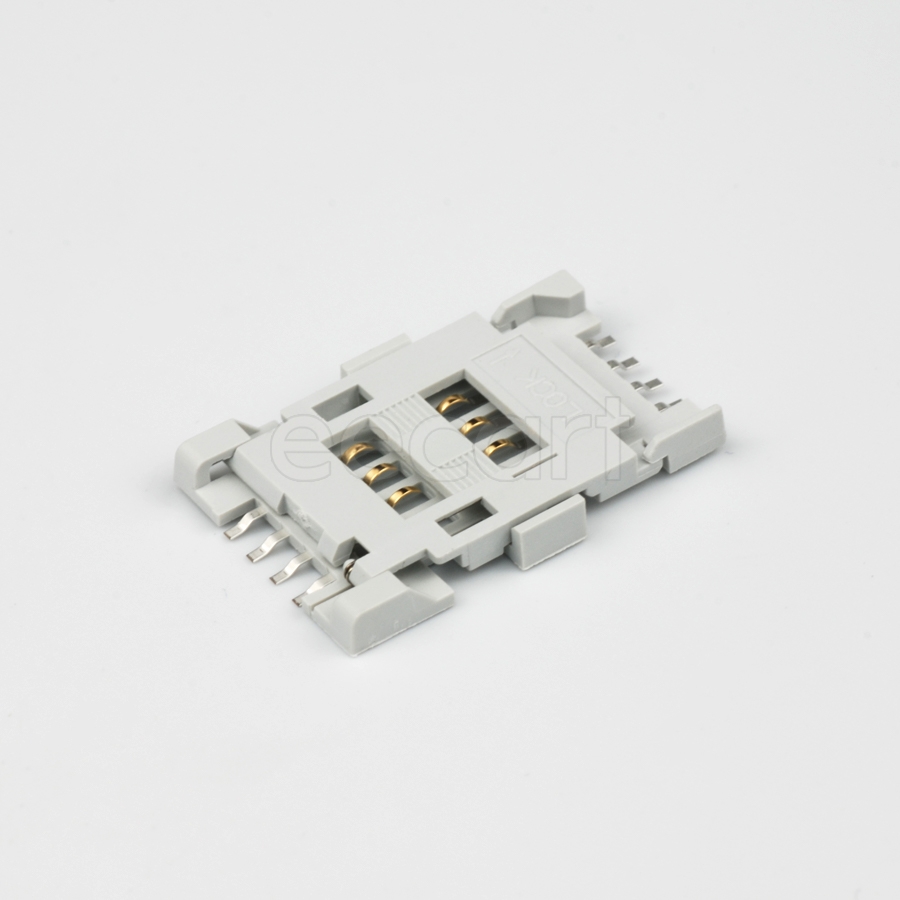

Memory Connectors PCB Mount Number of Positions:8 Connector, Socket
| Parameter | Value |
|---|---|
| Length | 20 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 90 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Reel |
| Voltage Rating | 1000 V (1 kV) |
| Depth | 30 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 1 GΩ |
| Contact Plating | Gold |
| Pitch | 2.54 mm |
| Current Rating | 1 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Number of Contacts | 8 |
| Connector Type | Connector, Socket |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Row Spacing | 3.5 mm |
| Housing Material | Thermoplastic |
| Housing Color | Black |
| Contact Material(Contact Finish) | Copper Alloy |
Stock: 662
Distributors
pcbx
pcbxUnit Price$0.78824
Ext.Price$0.78824
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.78824 | $0.78824 |
| 10 | $0.67625 | $6.76250 |
| 25 | $0.63180 | $15.79500 |
| 50 | $0.59845 | $29.92250 |
| 100 | $0.57024 | $57.02400 |
| 300 | $0.52483 | $157.44900 |
| 500 | $0.48303 | $241.51500 |
| 1000 | $0.44456 | $444.56000 |
