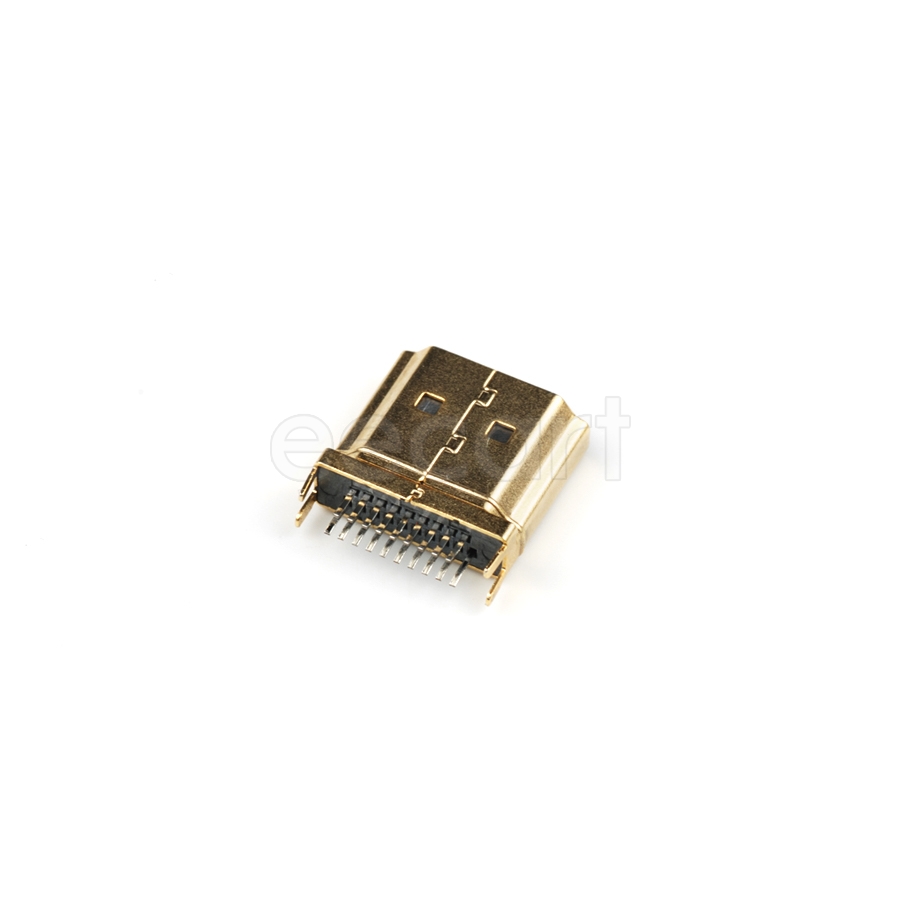

71436-0164
Manufacturer:
Molex
Mfr.Part #:
71436-0164
Datasheet:
Description:
Board to Board Connectors SMD/SMT Plug Number of Positions:64 Number of Rows:2 Pitch:1 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 100 V |
| Length | 35.9 mm |
| Width | 35.9 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 100 V |
| Height | 6.6 mm |
| Voltage Rating | 100 V |
| Depth | 6.1 mm |
| Halogen Free | Low Halogen |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 1 mm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 1 mm |
| Number of Terminals | 64 |
| Current Rating | 1 A |
| Working Voltage | 100 V |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 64 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Natural |
| Number of Contacts | 64 |
| Connector Type | Plug |
| Number of Positions | 64 |
| Number of Rows | 2 |
| Housing Material | Thermoplastic |
| Number of Ports | 1 |
| Contact Resistance | 30 mΩ |
| Max Voltage Rating (AC) | 100 V |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Stack Height | 8 mm |
| Mated Stacking Heights | 8 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
| Packaging | Tube |
| Mounting Angle | Vertical |
