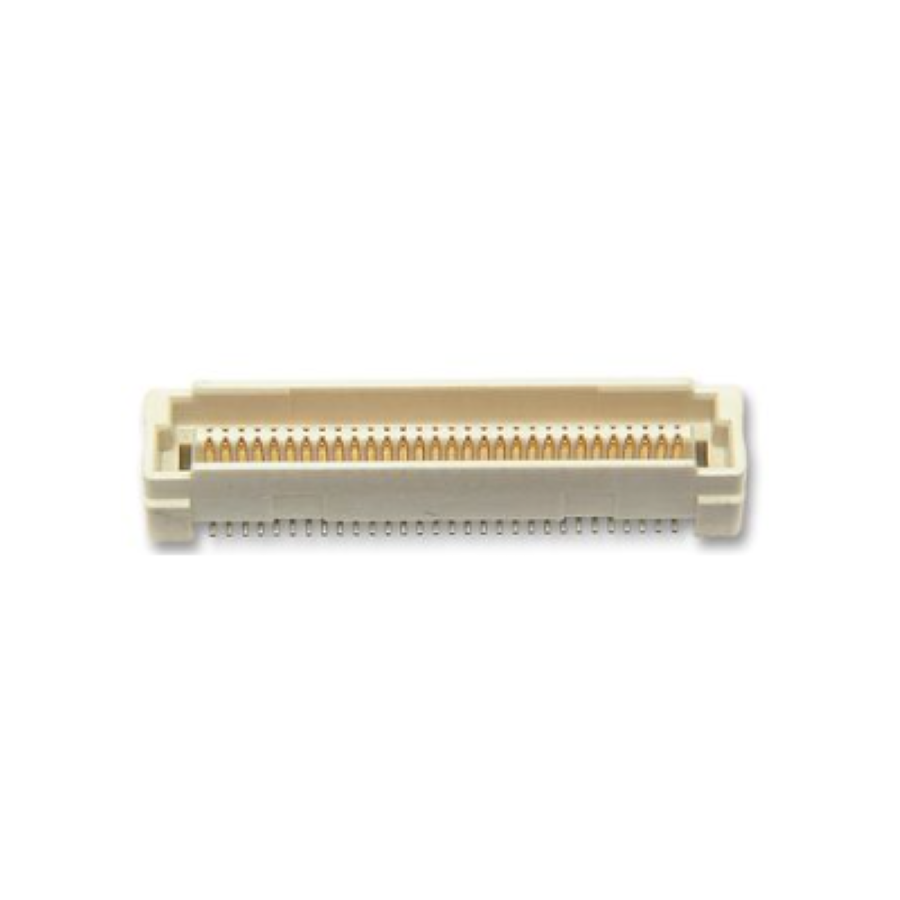

71436-2164
Manufacturer:
Molex
Mfr.Part #:
71436-2164
Datasheet:
Description:
Board to Board Connectors SMD/SMT Number of Positions:64 Number of Rows:2 Row Spacing:1 mm Pitch:1 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 100 V |
| Length | 13.3 mm |
| Width | 35.9 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 100 V |
| Height | 1.9 mm |
| Packaging | Tube |
| Voltage Rating | 100 V |
| Depth | 2.1 mm |
| Halogen Free | Low Halogen |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 1 mm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Copper |
| Pitch | 1 mm |
| Current Rating | 1 A |
| Working Voltage | 100 V |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 64 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Natural |
| Gender | Male |
| Number of Contacts | 64 |
| Number of Poles | 64 |
| Number of Positions | 64 |
| Number of Rows | 2 |
| Row Spacing | 1 mm |
| Housing Material | Thermoplastic (TP) |
| Contact Resistance | 30 mΩ |
| Max Voltage Rating (AC) | 100 V |
| Housing Color | White |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Stack Height | 10 mm, 12 mm, 13 mm, 15 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
| Mounting Angle | Vertical |
Stock: 1793
Distributors
pcbx
pcbxUnit Price$2.78450
Ext.Price$2.78450
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.78450 | $2.78450 |
| 10 | $2.12792 | $21.27920 |
| 25 | $2.07150 | $51.78750 |
| 50 | $2.02790 | $101.39500 |
| 100 | $1.95860 | $195.86000 |
| 300 | $1.89167 | $567.50100 |
| 500 | $1.82703 | $913.51500 |
| 1000 | $1.76457 | $1764.57000 |
