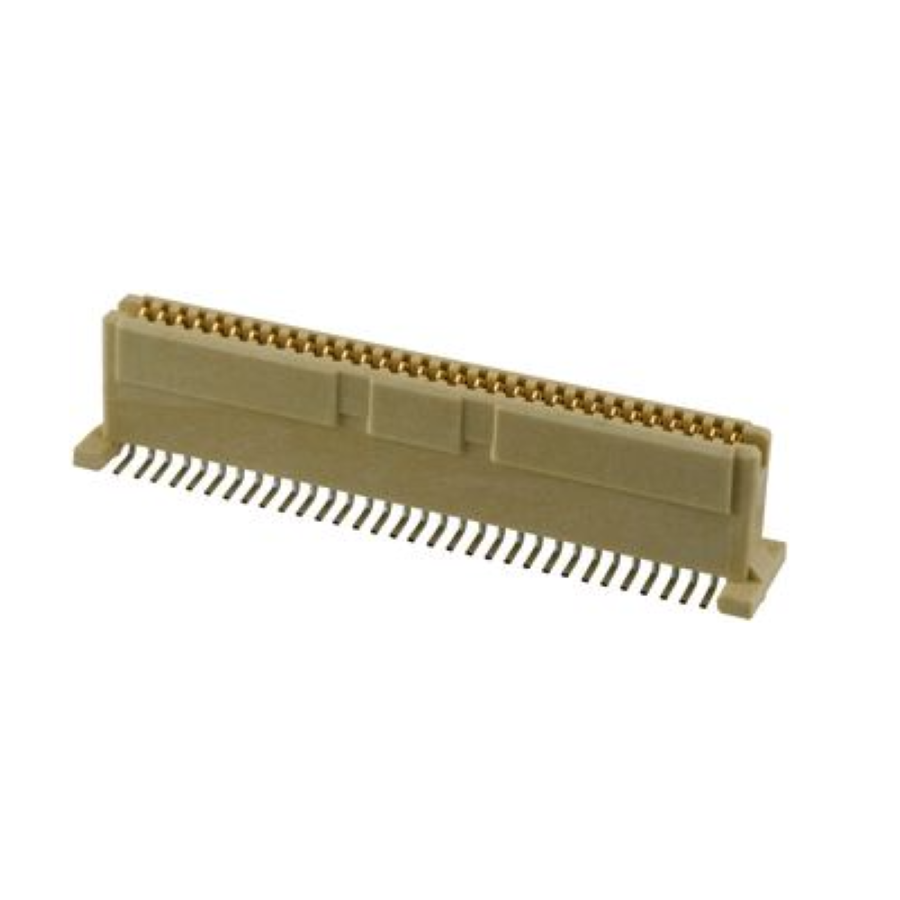

71439-2164
Manufacturer:
Molex
Mfr.Part #:
71439-2164
Datasheet:
Description:
Board to Board Connectors SMD/SMT Number of Positions:64 Number of Rows:2 Pitch:1 mm
| Parameter | Value |
|---|---|
| Length | 35.9 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Tube |
| Voltage Rating | 100 V |
| Depth | 6.1 mm |
| Halogen Free | Low Halogen |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 1 mm |
| Current Rating | 1 A |
| Number of Circuits | 64 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Gender | Receptacle |
| Number of Contacts | 64 |
| Number of Positions | 64 |
| Number of Rows | 2 |
| Housing Material | Thermoplastic (TP) |
| Housing Color | Natural |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Stack Height | 13 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
| Mounting Angle | Vertical |
Stock: 103
Distributors
pcbx
pcbxUnit Price$4.90644
Ext.Price$4.90644
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $4.90644 | $4.90644 |
| 10 | $4.43709 | $44.37090 |
| 25 | $4.19257 | $104.81425 |
| 50 | $4.09255 | $204.62750 |
| 100 | $3.88651 | $388.65100 |
| 300 | $3.45152 | $1035.45600 |
| 500 | $3.06521 | $1532.60500 |
| 1000 | $2.72210 | $2722.10000 |
