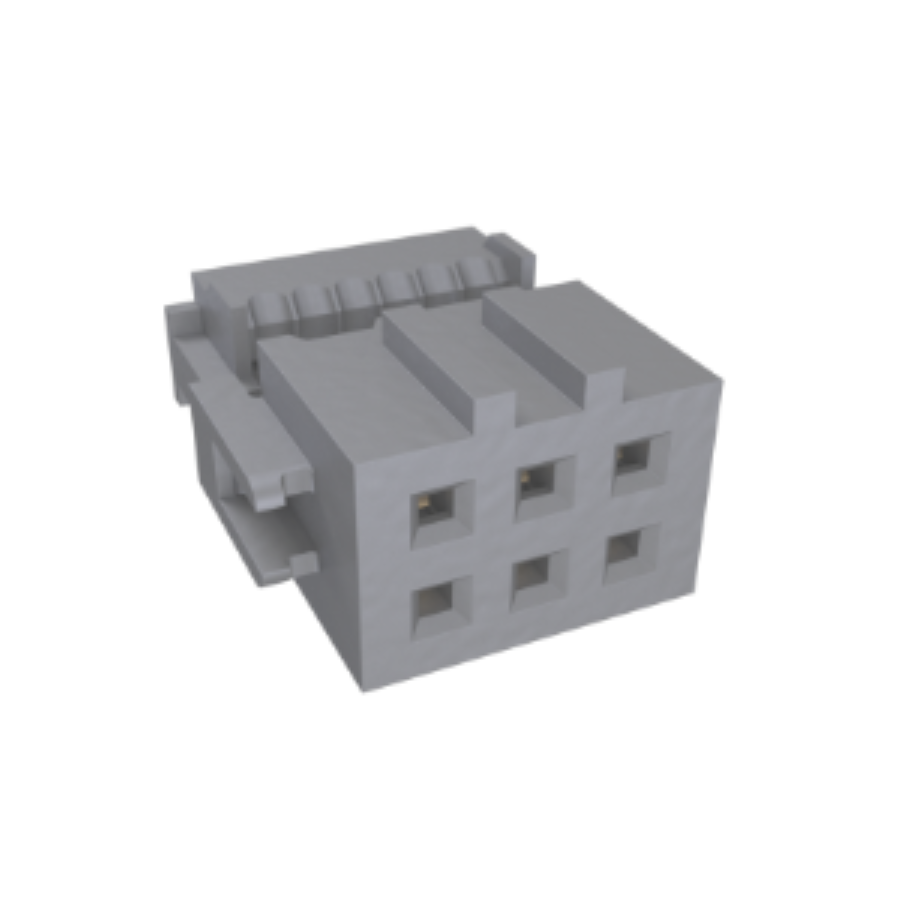

71600-016LF
Manufacturer:
Amphenol
Mfr.Part #:
71600-016LF
Datasheet:
Description:
Headers and Wire Housings Cable, Free Hanging IDC, Receptacle, Socket Number of Positions:16 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 24.79 mm |
| Width | 6.1 mm |
| Termination | IDC |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -65 °C |
| Number of Pins | 16 |
| Packaging | Tube |
| Voltage Rating | 1000 V (1 kV) |
| Depth | 7.1 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Insulation Resistance | 50 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Current Rating | 1 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA, UL |
| Orientation | Right Angle |
| Color | Grey |
| Gender | Receptacle |
| Number of Contacts | 16 |
| Hole Diameter | 1 mm |
| Number of Poles | 16 |
| Connector Type | IDC, Receptacle, Socket |
| Number of Positions | 16 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Thermoplastic |
| Wire/Cable Type | Ribbon |
| Contact Resistance | 15 mΩ |
| Max Voltage Rating (AC) | 1000 V (1 kV) |
| Contact Current Rating | 1 A |
| Wire Gauge (Max) | 30 AWG |
| Wire Gauge (Min) | 28 AWG |
| Housing Color | Gray |
| Contact Gender | Female |
Stock: 5382
Distributors
pcbx
pcbxUnit Price$1.10115
Ext.Price$1.10115
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.10115 | $1.10115 |
| 10 | $0.81987 | $8.19870 |
| 25 | $0.78226 | $19.55650 |
| 50 | $0.77279 | $38.63950 |
| 100 | $0.76345 | $76.34500 |
| 300 | $0.68170 | $204.51000 |
| 500 | $0.60871 | $304.35500 |
| 1000 | $0.57964 | $579.64000 |
