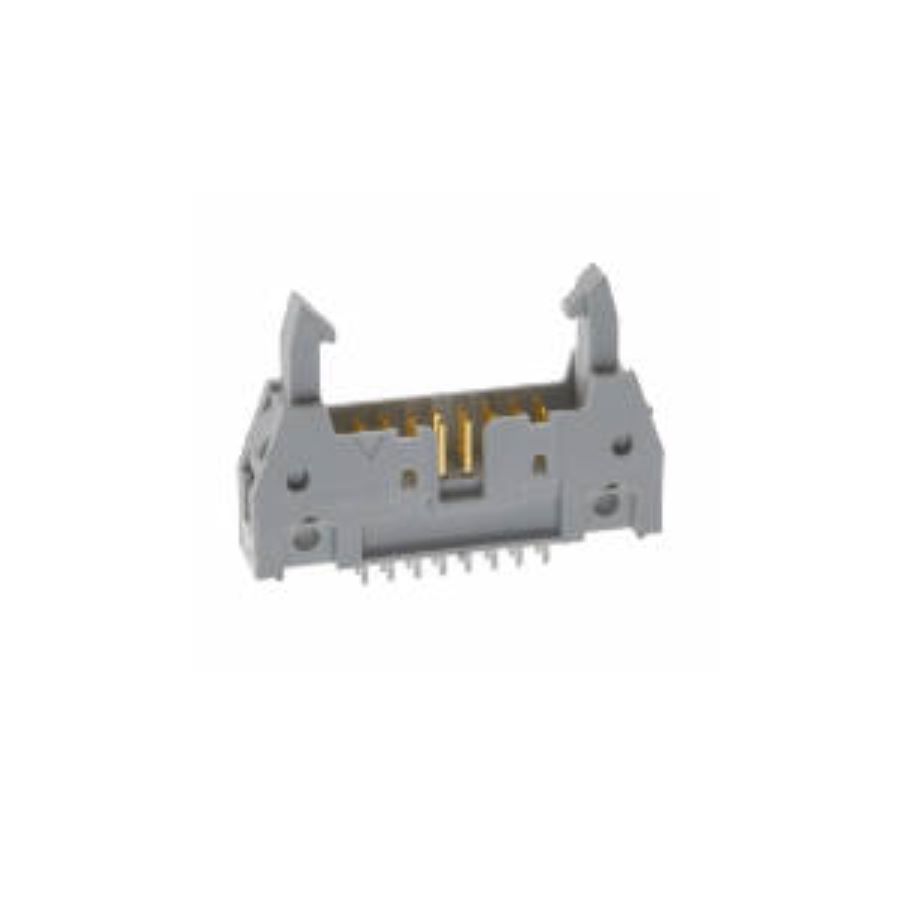

71918-116LF
Manufacturer:
Amphenol
Mfr.Part #:
71918-116LF
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:16 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Termination | Solder Pin |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -65 °C |
| Number of Pins | 16 |
| Packaging | Tube |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Insulation Resistance | 100 GΩ |
| Contact Plating | Gold |
| Pitch | 2.54 mm |
| Current Rating | 1 A |
| Orientation | Straight |
| Color | Grey |
| Gender | Male |
| Number of Contacts | 16 |
| Connector Type | Header |
| Number of Positions | 16 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Mating Post Length | 5.8 mm |
| Termination Post Length | 2.9 mm |
Stock: 432
Distributors
pcbx
pcbxUnit Price$1.05156
Ext.Price$1.05156
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.05156 | $1.05156 |
| 10 | $0.81390 | $8.13900 |
| 25 | $0.81047 | $20.26175 |
| 50 | $0.80706 | $40.35300 |
| 100 | $0.76944 | $76.94400 |
| 300 | $0.73703 | $221.10900 |
| 500 | $0.70599 | $352.99500 |
| 1000 | $0.67625 | $676.25000 |
