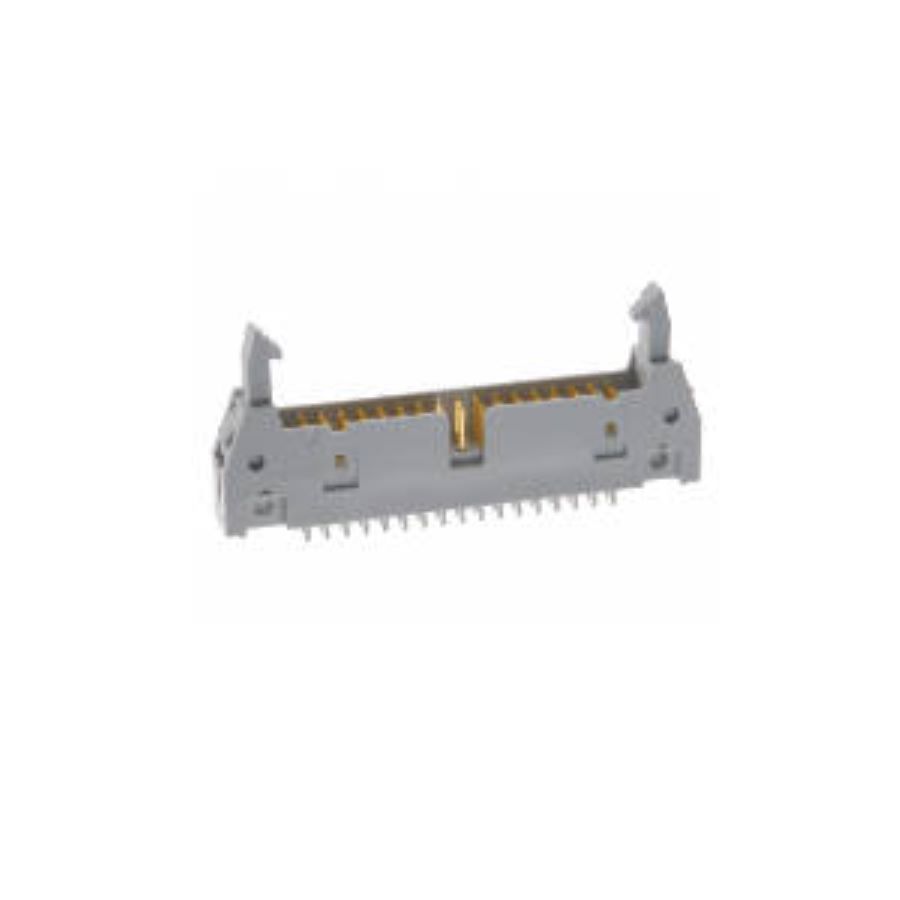

71918-134LF
Manufacturer:
Amphenol
Mfr.Part #:
71918-134LF
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:34 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 62.48 mm |
| Width | 8.6 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -65 °C |
| Number of Pins | 34 |
| Height | 26.8 mm |
| Packaging | Tube |
| Voltage Rating | 1500 V (1.5 kV) |
| Depth | 8.6 mm |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Insulation Resistance | 100 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Lead Length | 2.9 mm |
| Contact Material(Contact Finish) | Bronze, Gold, Nickel |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA, UL |
| Orientation | Straight |
| Color | Grey |
| Gender | Male |
| Number of Contacts | 34 |
| Hole Diameter | 1 mm |
| Number of Poles | 34 |
| Connector Type | Male Pin |
| Number of Positions | 34 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Thermoplastic |
| Fastening Type | Latch |
| Max Voltage Rating (AC) | 1500 V (1.5kV) |
| Housing Color | Gray |
| Contact Mating Length | 5.7912 mm |
| Mating Post Length | 5.8 mm |
| Termination Post Length | 2.9 mm |
Stock: 97
Distributors
pcbx
pcbxUnit Price$1.01394
Ext.Price$1.01394
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.01394 | $1.01394 |
| 10 | $0.91990 | $9.19900 |
| 25 | $0.89511 | $22.37775 |
| 50 | $0.88827 | $44.41350 |
| 100 | $0.87630 | $87.63000 |
| 300 | $0.78328 | $234.98400 |
| 500 | $0.70013 | $350.06500 |
| 1000 | $0.62581 | $625.81000 |
