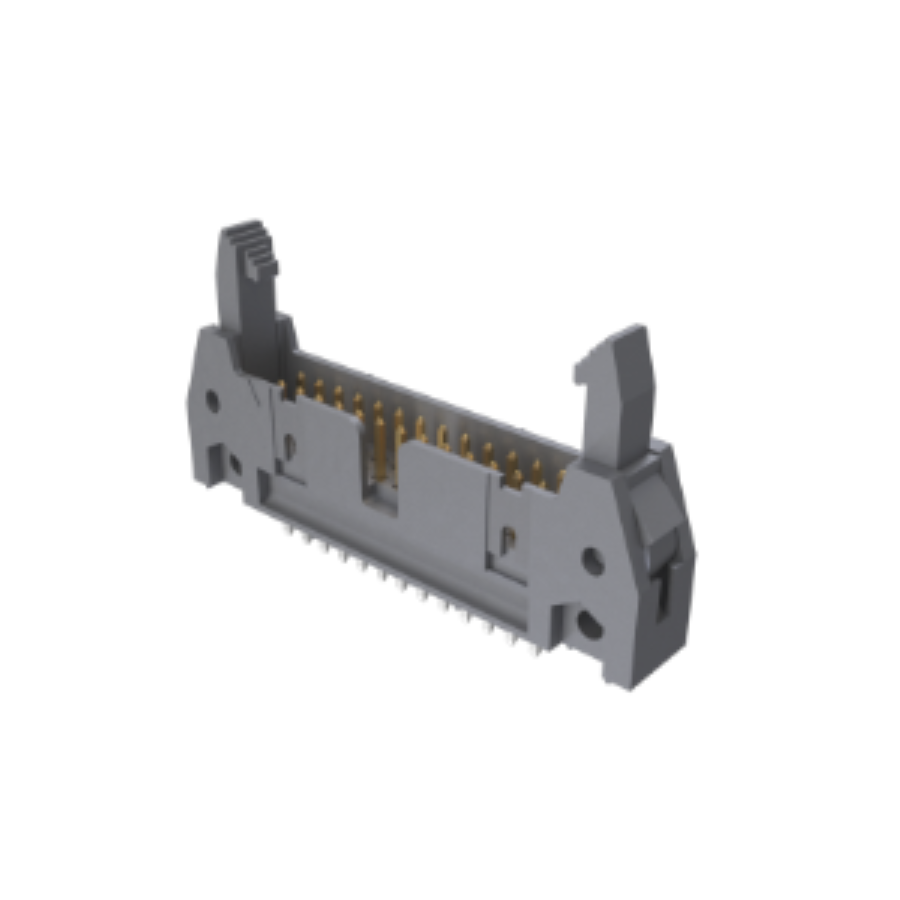

71918-140LF
Manufacturer:
Amphenol
Mfr.Part #:
71918-140LF
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:40 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 70.1 mm |
| Width | 8.6 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -65 °C |
| Height | 24.6 mm |
| Packaging | Tube |
| Depth | 8.6 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Insulation Resistance | 100 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Lead Length | 2.9 mm |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Max Current Rating | 2 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA, UL |
| Orientation | Straight |
| Color | Grey |
| Gender | Male |
| Number of Contacts | 40 |
| Hole Diameter | 1 mm |
| Number of Poles | 40 |
| Connector Type | Male Pin |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Thermoplastic |
| Fastening Type | Latch |
| Max Voltage Rating (AC) | 1.5 kV |
| Housing Color | Gray |
| Contact Mating Length | 5.7912 mm |
| Mating Post Length | 5.8 mm |
| Termination Post Length | 2.9 mm |
Stock: 410
Distributors
pcbx
pcbxUnit Price$2.00909
Ext.Price$2.00909
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.00909 | $2.00909 |
| 10 | $1.75260 | $17.52600 |
| 25 | $1.69618 | $42.40450 |
| 50 | $1.66455 | $83.22750 |
| 100 | $1.58731 | $158.73100 |
| 300 | $1.51366 | $454.09800 |
| 500 | $1.44342 | $721.71000 |
| 1000 | $1.37644 | $1376.44000 |
