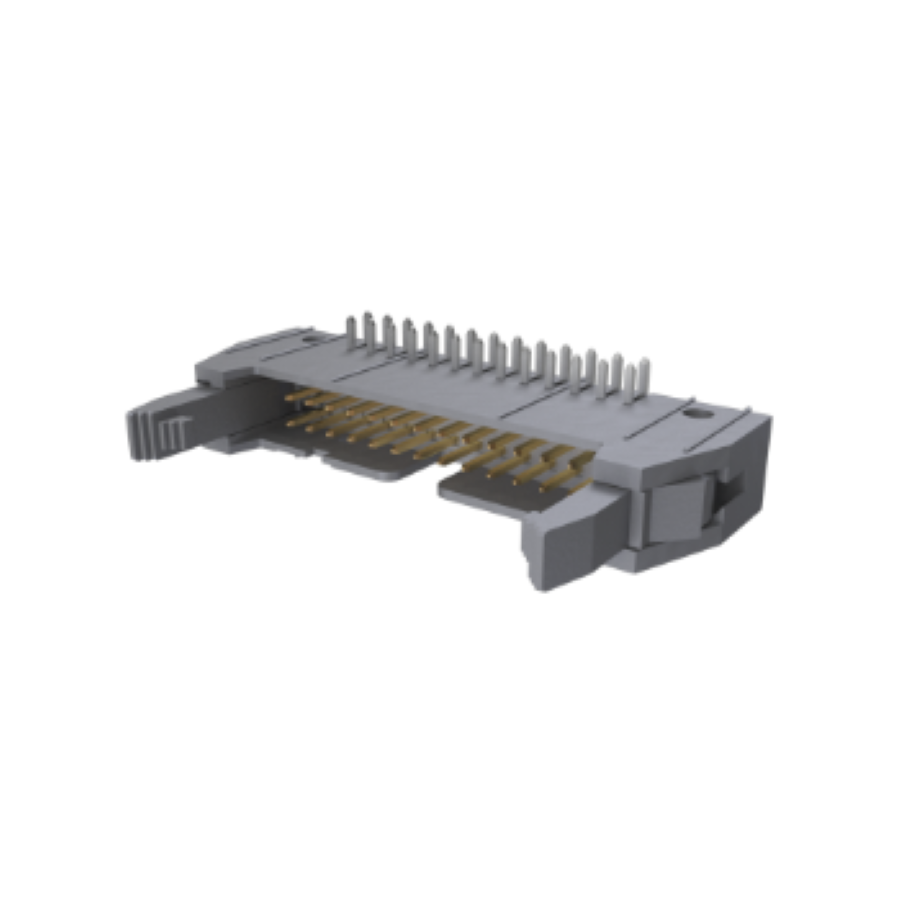

71922-126LF
Manufacturer:
Amphenol
Mfr.Part #:
71922-126LF
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:26 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 52.32 mm |
| Width | 17.4 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -65 °C |
| Packaging | Tube |
| Voltage Rating | 1500 V (1.5 kV) |
| Depth | 26.8 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Insulation Resistance | 100 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Lead Length | 2.9 mm |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA, UL |
| Orientation | Right Angle |
| Color | Grey |
| Gender | Male |
| Number of Contacts | 26 |
| Hole Diameter | 1 mm |
| Number of Poles | 26 |
| Connector Type | Male Pin |
| Number of Positions | 26 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Thermoplastic |
| Fastening Type | Latch |
| Max Voltage Rating (AC) | 1.5 kV |
| Housing Color | Gray |
| Contact Mating Length | 5.7912 mm |
| Contact Gender | Male |
| Mating Post Length | 5.8 mm |
| Termination Post Length | 2.9 mm |
Stock: 672
Distributors
pcbx
pcbxUnit Price$1.50211
Ext.Price$1.50211
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.50211 | $1.50211 |
| 10 | $1.39524 | $13.95240 |
| 25 | $1.34776 | $33.69400 |
| 50 | $1.30189 | $65.09450 |
| 100 | $1.25760 | $125.76000 |
| 300 | $1.14079 | $342.23700 |
| 500 | $1.03483 | $517.41500 |
| 1000 | $0.93871 | $938.71000 |
