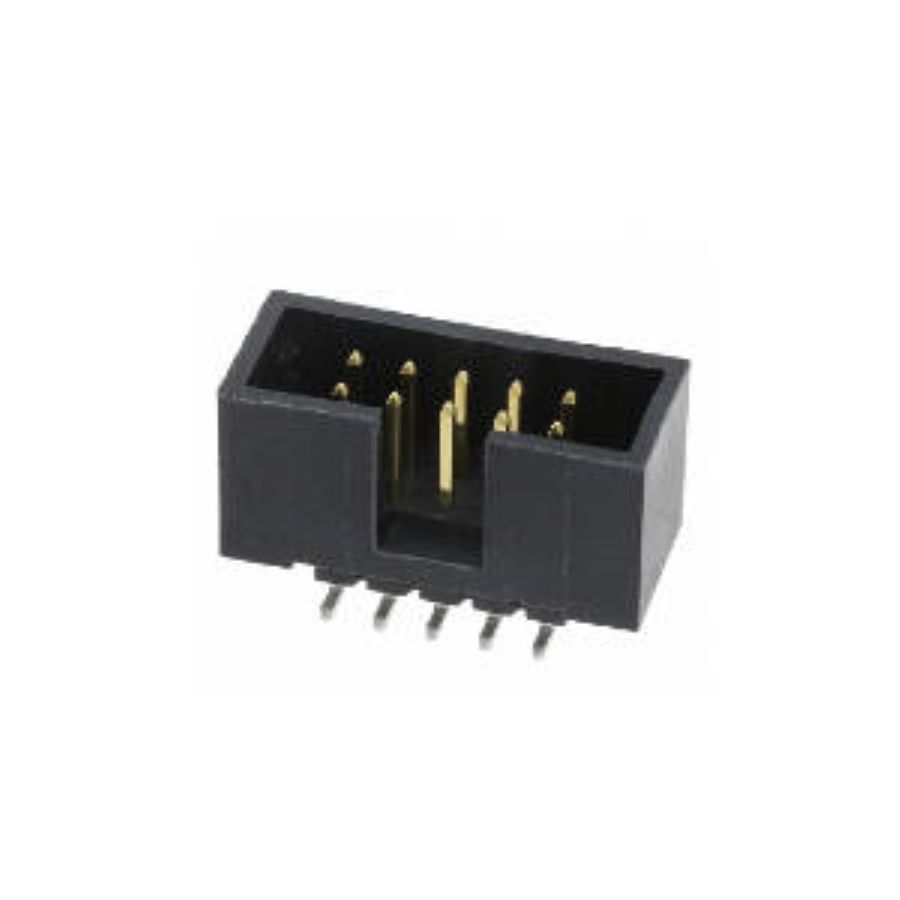

72454-010VLF
Manufacturer:
Amphenol
Mfr.Part #:
72454-010VLF
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Male Pin Number of Positions:10 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 20.07 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -65 °C |
| Packaging | Reel |
| Voltage Rating | 1000 V (1 kV) |
| Depth | 8.76 mm |
| RoHS | Compliant |
| Insulation Resistance | 1 GΩ |
| Contact Plating | GXT, Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Orientation | Straight |
| Color | Black |
| Gender | Male |
| Number of Contacts | 10 |
| Connector Type | Male Pin |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Polycyclohexylenedimethylene |
| Max Voltage Rating (AC) | 1000 V (1 kV) |
| Housing Color | Black |
| Contact Mating Length | 5.842 mm |
| Contact Gender | Male |
| Mating Post Length | 5.84 mm |
Stock: 213
Distributors
pcbx
pcbxUnit Price$1.93983
Ext.Price$1.93983
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.93983 | $1.93983 |
| 10 | $1.65173 | $16.51730 |
| 25 | $1.54005 | $38.50125 |
| 50 | $1.43592 | $71.79600 |
| 100 | $1.33882 | $133.88200 |
| 300 | $1.28015 | $384.04500 |
| 500 | $1.22405 | $612.02500 |
| 1000 | $1.17040 | $1170.40000 |
