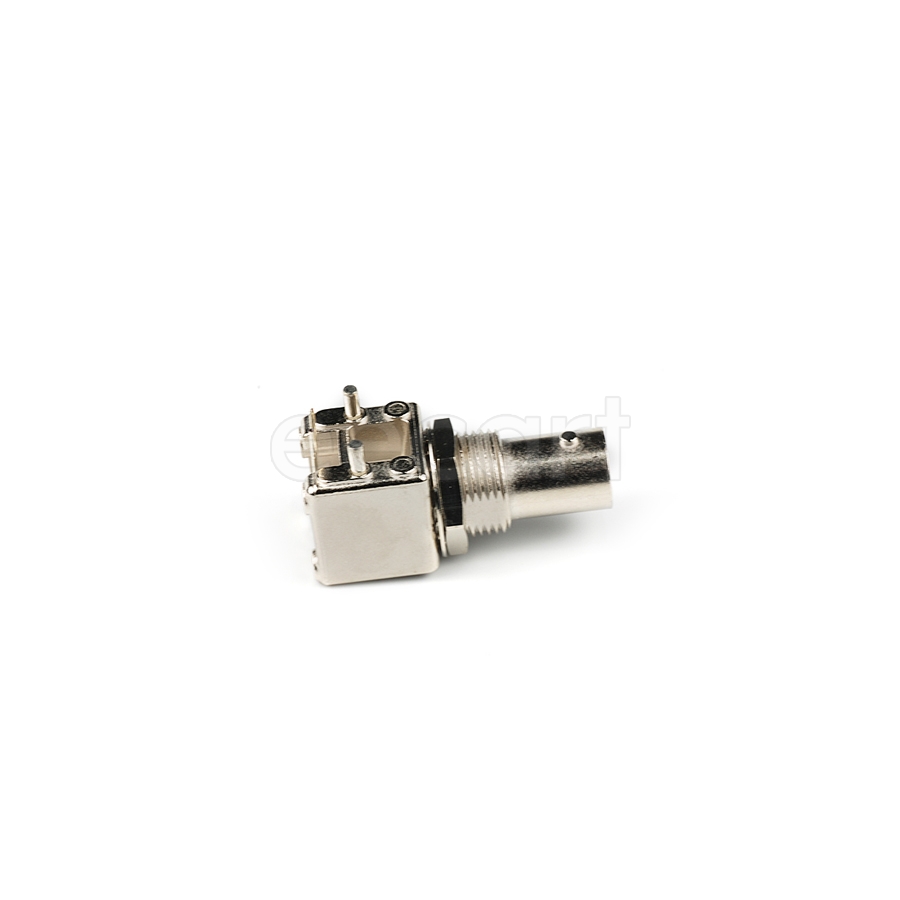

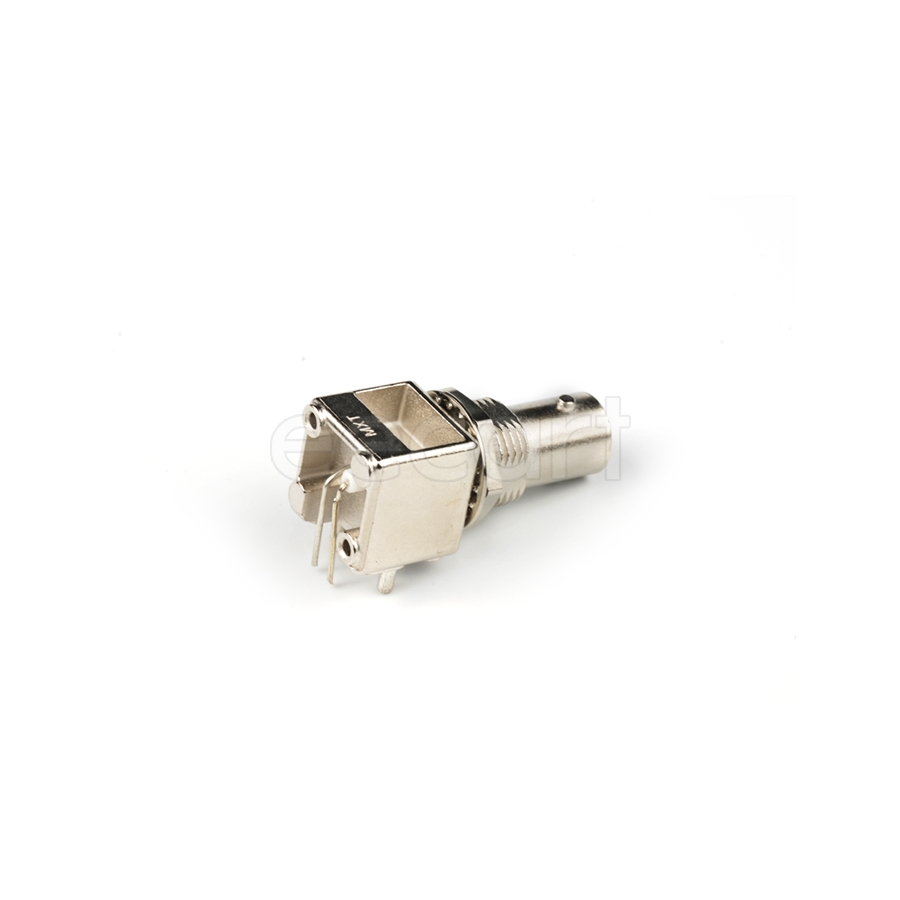

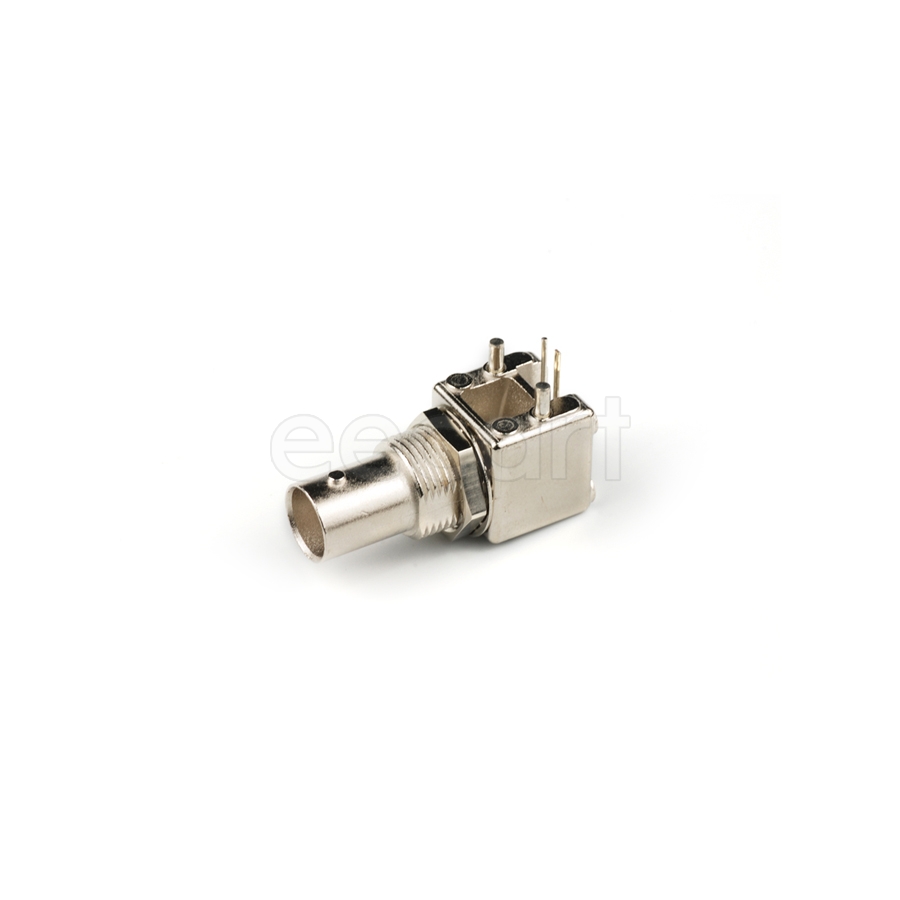

73138-5033
Manufacturer:
Molex
Mfr.Part #:
73138-5033
Datasheet:
Description:
RF / Coaxial Connectors Through Hole BNC, Receptacle, Socket 50 Ω
| Parameter | Value |
|---|---|
| Length | 35.43 mm |
| Termination | Solder |
| Packaging | Bulk |
| Depth | 14.66 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Dielectric Material | PP |
| Contact Plating | Gold |
| Impedance | 50 Ω |
| Contact Material(Contact Finish) | Bronze |
| Frequency | 2 GHz |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Gender | Female |
| Body Material | Zinc |
| Connector Type | BNC, Receptacle, Socket |
| Insulation Material | Polypropylene |
| Fastening Type | Bayonet |
| Housing Color | Silver |
| Body Plating | Nickel |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
| Max Frequency | 2 GHz |
| Contact Termination | Solder |
| RF Series | BNC |
Stock: 537
Distributors
pcbx
pcbxUnit Price$3.21026
Ext.Price$3.21026
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $3.21026 | $3.21026 |
| 10 | $2.72893 | $27.28930 |
| 25 | $2.55966 | $63.99150 |
| 50 | $2.39451 | $119.72550 |
| 100 | $2.24002 | $224.00200 |
| 300 | $2.09549 | $628.64700 |
| 500 | $1.96029 | $980.14500 |
| 1000 | $1.83383 | $1833.83000 |
