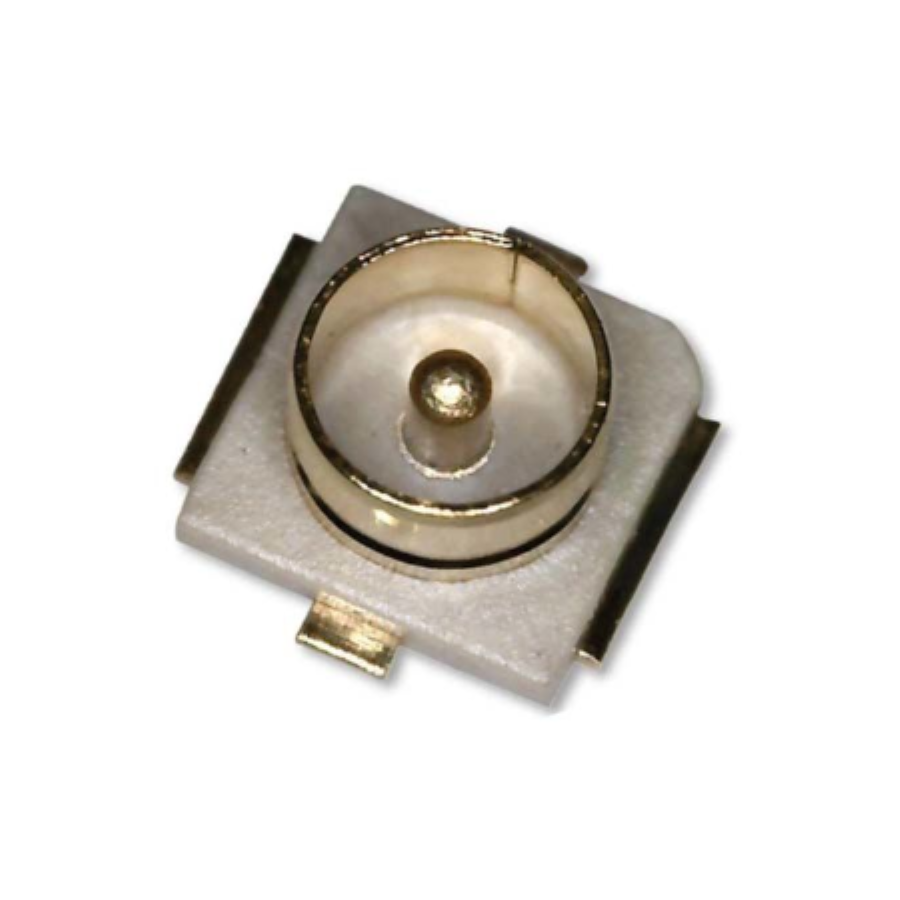

73412-0110
Manufacturer:
Molex
Mfr.Part #:
73412-0110
Datasheet:
Description:
RF / Coaxial Connectors SMD/SMT Coaxial 50 Ω
| Parameter | Value |
|---|---|
| Length | 3 mm |
| Width | 3 mm |
| Termination | Solder |
| Max Operating Temperature | 90 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 60 V |
| Height | 1.25 mm |
| Material | Bronze |
| Packaging | Reel |
| Voltage Rating | 60 V |
| Halogen Free | Low Halogen |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 500 MΩ |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Impedance | 50 Ω |
| Contact Material(Contact Finish) | Brass, Bronze |
| Frequency | 6 GHz |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Gender | Female |
| Body Material | Liquid Crystal Polymer, Polymer |
| Connector Type | Coaxial |
| Max Frequency | 6 GHz |
| Body Plating | Gold |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
| RF Series | Micro-RF |
| Contact Termination | Solder |
| Shield Termination | Solder |
Stock: 23970
Distributors
pcbx
pcbxUnit Price$0.46936
Ext.Price$0.46936
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.46936 | $0.46936 |
| 10 | $0.40780 | $4.07800 |
| 25 | $0.37104 | $9.27600 |
| 50 | $0.36414 | $18.20700 |
| 100 | $0.35736 | $35.73600 |
| 300 | $0.33894 | $101.68200 |
| 500 | $0.32146 | $160.73000 |
| 1000 | $0.28640 | $286.40000 |
| 3000 | $0.27728 | $831.84000 |
| 5000 | $0.26845 | $1342.25000 |
| 10000 | $0.25563 | $2556.30000 |
