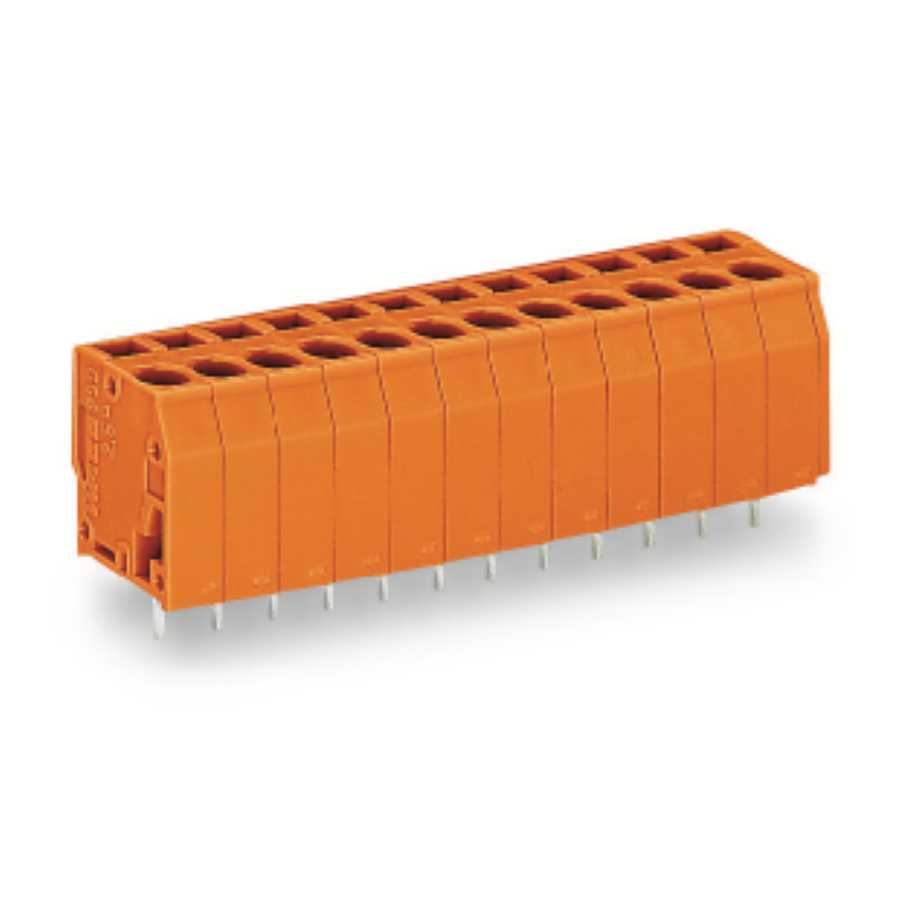

739-152
Manufacturer:
WAGO
Mfr.Part #:
739-152
Datasheet:
Description:
Terminal Blocks Through Hole 2 5.08 mm 24 A 320 V 28 AWG to 12 AWG
| Parameter | Value |
|---|---|
| Length | 11.58 mm |
| Width | 19 mm |
| Termination | Spring Clamp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -60 °C |
| Number of Pins | 2 |
| Height | 14.3 mm |
| Packaging | Bulk |
| Voltage Rating | 320 V |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Contact Material(Contact Finish) | Copper, Tin |
| Pitch | 5.08 mm |
| Current Rating | 24 A |
| Flammability Rating | UL94 V-0 |
| Color | Orange |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Wire Gauge (Max) | 12 AWG |
| Wire Gauge (Min) | 28 AWG |
| Housing Color | Orange |
| Connection Method | Push-In |
| Wire Gauge Range | 28 AWG to 12 AWG |
Stock: 83
Distributors
pcbx
pcbxUnit Price$1.35805
Ext.Price$1.35805
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.35805 | $1.35805 |
| 10 | $0.97734 | $9.77340 |
| 25 | $0.85169 | $21.29225 |
| 50 | $0.77124 | $38.56200 |
| 100 | $0.70353 | $70.35300 |
| 300 | $0.64418 | $193.25400 |
| 500 | $0.58984 | $294.92000 |
| 1000 | $0.55628 | $556.28000 |
| 3000 | $0.52930 | $1587.90000 |
| 5000 | $0.50362 | $2518.10000 |
