74320-1003
Manufacturer:
Molex
Mfr.Part #:
74320-1003
Datasheet:
Description:

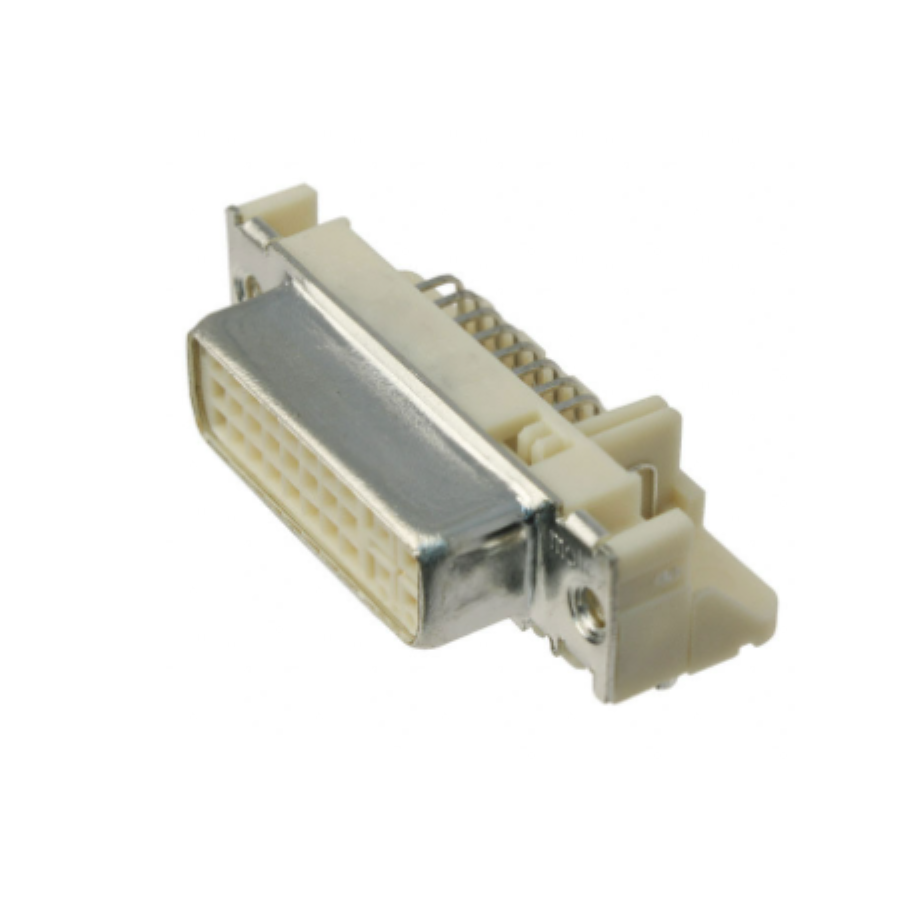

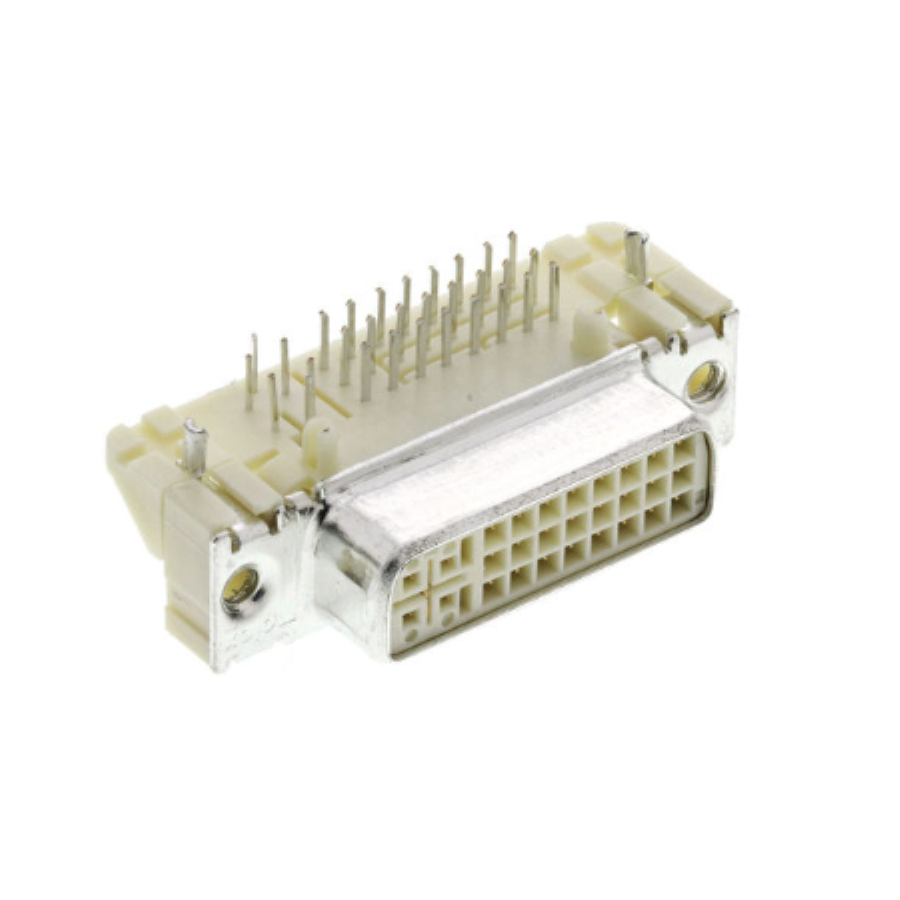

Audio / Video Connectors Through Hole Receptacle Number of Positions:29 Right Angle DVI
| Parameter | Value |
|---|---|
| Length | 36.83 mm |
| Width | 9.91 mm |
| Termination | Through Hole |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -20 °C |
| Voltage Rating (AC) | 40 V |
| Height | 9.91 mm |
| Packaging | Tray |
| Voltage Rating | 40 V |
| Depth | 18.03 mm |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Pitch | 1.91 mm |
| Number of Terminals | 29 |
| Current Rating | 3 A |
| Max Current Rating | 3 A |
| Number of Circuits | 29 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Natural |
| Gender | Receptacle |
| Number of Contacts | 29 |
| Body Material | Metal |
| Connector Type | DVI |
| Number of Positions | 29 |
| Number of Rows | 3 |
| Housing Material | Polymer |
| Number of Ports | 1 |
| Max Voltage Rating (AC) | 40 V |
| Plating | Tin |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
Stock: 1
Distributors
pcbx
pcbxUnit Price$5.86339
Ext.Price$5.86339
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $5.86339 | $5.86339 |
| 10 | $5.03434 | $50.34340 |
| 25 | $4.71910 | $117.97750 |
| 50 | $4.42360 | $221.18000 |
| 100 | $4.14665 | $414.66500 |
