744772680
Manufacturer:
Wurth Electronics
Mfr.Part #:
744772680
Datasheet:
Description:

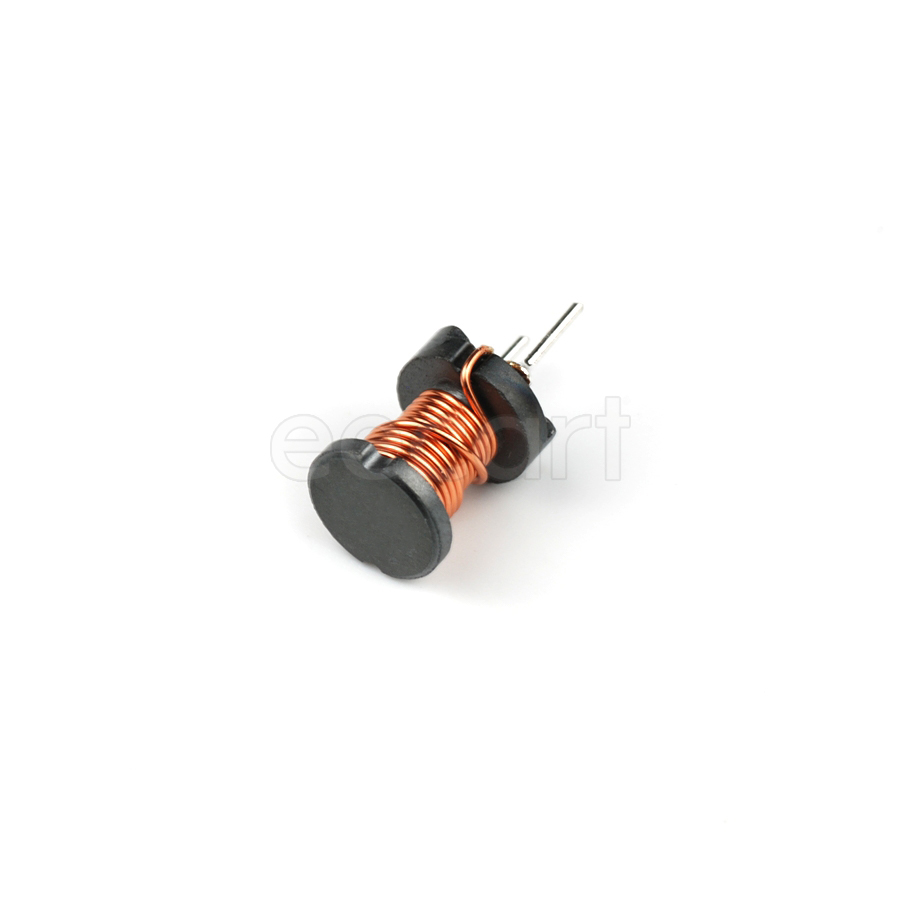

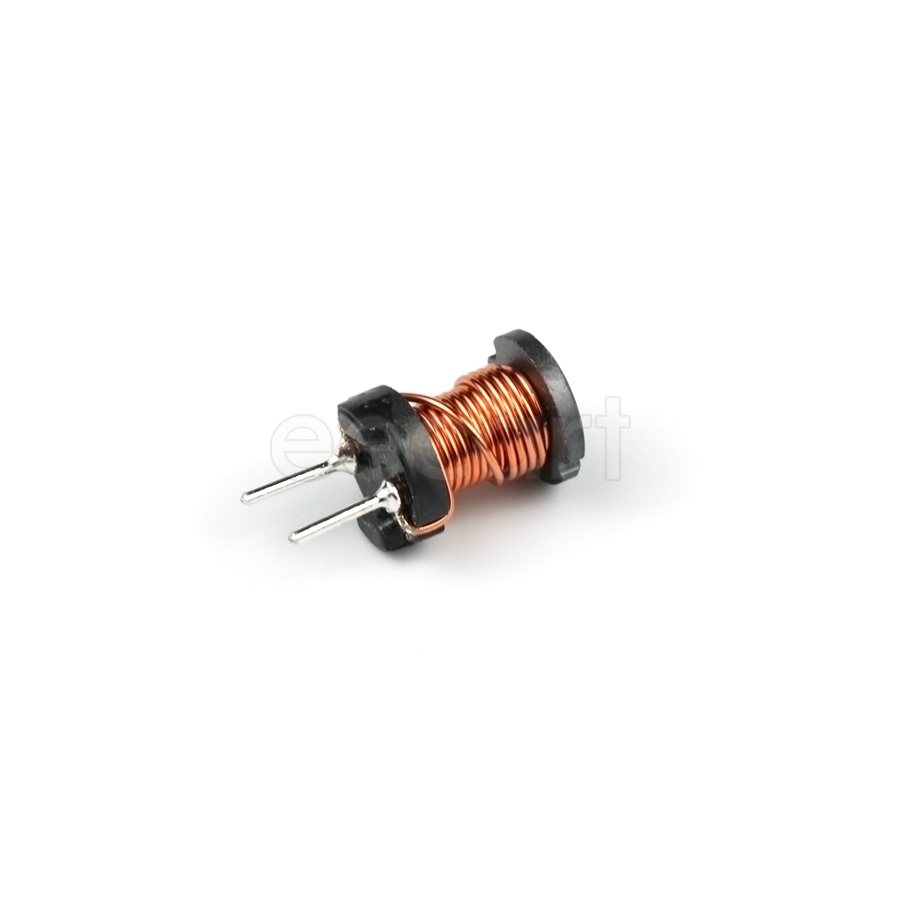

Fixed Inductors Radial Through Hole 68 µH 10 % 1.7 A 140 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 10 % |
| Height - Seated (Max) | 10 mm |
| Length | 9.5 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Packaging | Tray |
| RoHS | Compliant |
| Self Resonant Frequency | 6.4 MHz |
| Type | Wirewound |
| DC Resistance (DCR) | 140 mΩ |
| Test Frequency | 1 kHz |
| Shielding | Unshielded |
| Inductance | 68 µH |
| Core Material | Ferrite |
| inductance tolerance | 10 % |
| Saturation Current | 2.1 A |
| Current Rating | 1.7 A |
Stock: 1180
Distributors
pcbx
pcbxUnit Price$0.57537
Ext.Price$0.57537
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.57537 | $0.57537 |
| 10 | $0.54544 | $5.45440 |
| 25 | $0.52674 | $13.16850 |
| 50 | $0.50868 | $25.43400 |
| 100 | $0.45226 | $45.22600 |
