74AUP2G125GXX
Manufacturer:
Nexperia
Mfr.Part #:
74AUP2G125GXX
Datasheet:
Description:

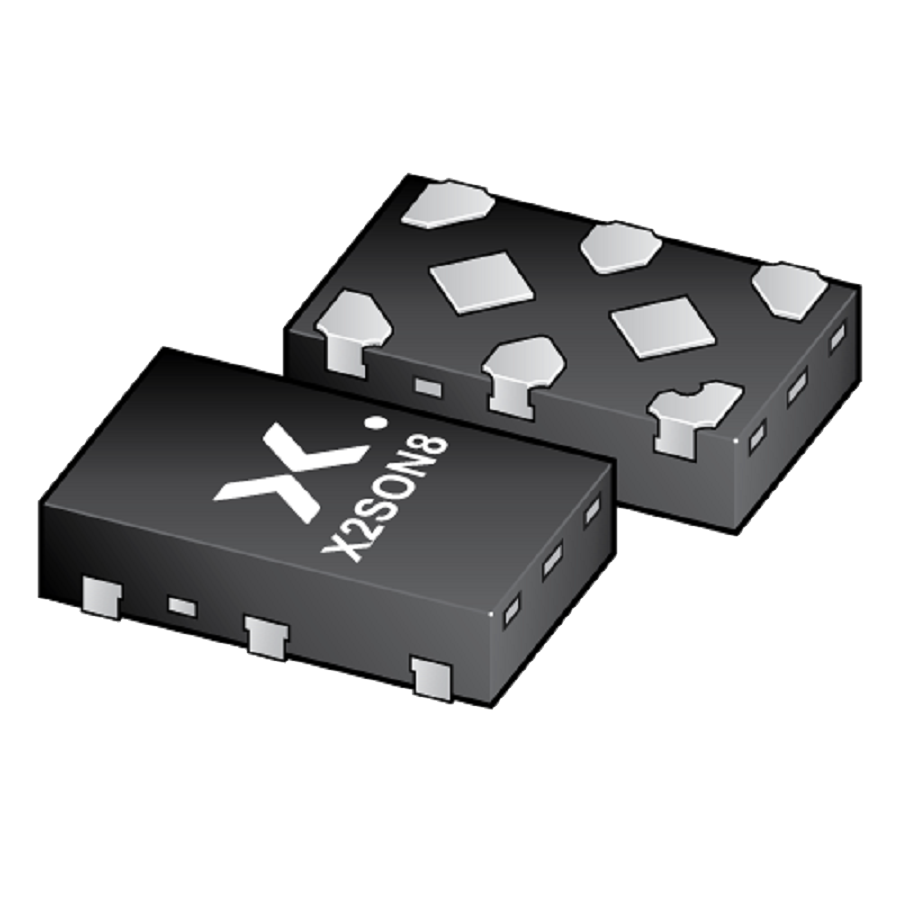

Buffers, Drivers, Resceivers and Transceivers X2SON-8 SMD/SMT 3-State
| Parameter | Value |
|---|---|
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Reel |
| RoHS | Compliant |
| Polarity | Non-Inverting |
| Number of Elements | 2 |
| Output Type | 3-State |
| Max Supply Voltage | 3.6 V |
| Min Supply Voltage | 800 mV |
| Operating Supply Current | 1.4 µA |
| Propagation Delay | 3.5 ns |
| High Level Output Current | -4 mA |
| Low Level Output Current | 4 mA |
| Number of Bits per Element | 1 |
| Number of Output Lines | 2 |
| Number of Input Lines | 2 |
Stock: 5908
Distributors
pcbx
pcbxUnit Price$0.29733
Ext.Price$0.29733
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.29733 | $0.29733 |
| 10 | $0.20829 | $2.08290 |
| 50 | $0.18335 | $9.16750 |
| 100 | $0.16140 | $16.14000 |
| 500 | $0.14254 | $71.27000 |
| 1000 | $0.13738 | $137.38000 |
| 3000 | $0.13136 | $394.08000 |
| 5000 | $0.12560 | $628.00000 |
| 10000 | $0.12009 | $1200.90000 |
