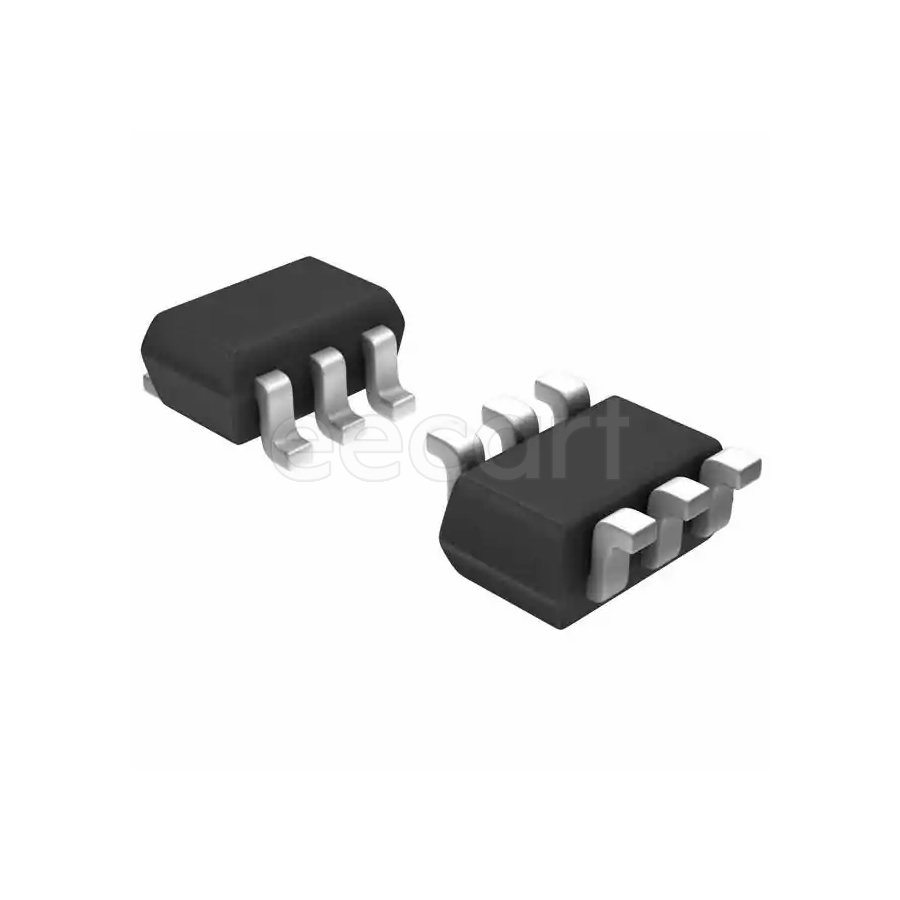

74HC2G17GW,125
Manufacturer:
Nexperia
Mfr.Part #:
74HC2G17GW,125
Datasheet:
Description:
Buffers, Drivers, Resceivers and Transceivers SC-88-6 SMD/SMT 3-State
| Parameter | Value |
|---|---|
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 6 |
| Packaging | Reel |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Non-Inverting |
| Contact Plating | Tin |
| Number of Elements | 2 |
| Operating Supply Voltage | 5 V |
| Output Type | 3-State |
| Max Supply Voltage | 6 V |
| Min Supply Voltage | 2 V |
| Number of Channels | 2 |
| Turn-On Delay Time | 175 ns |
| Quiescent Current | 1 µA |
| Propagation Delay | 18 ns |
| High Level Output Current | -5.2 mA |
| Low Level Output Current | 5.2 mA |
| Logic Function | Buffer, Schmitt Trigger |
| Number of Inputs | 2 |
| Number of Bits per Element | 1 |
| Number of Outputs | 2 |
| Number of Input Lines | 2 |
| Number of Output Lines | 2 |
