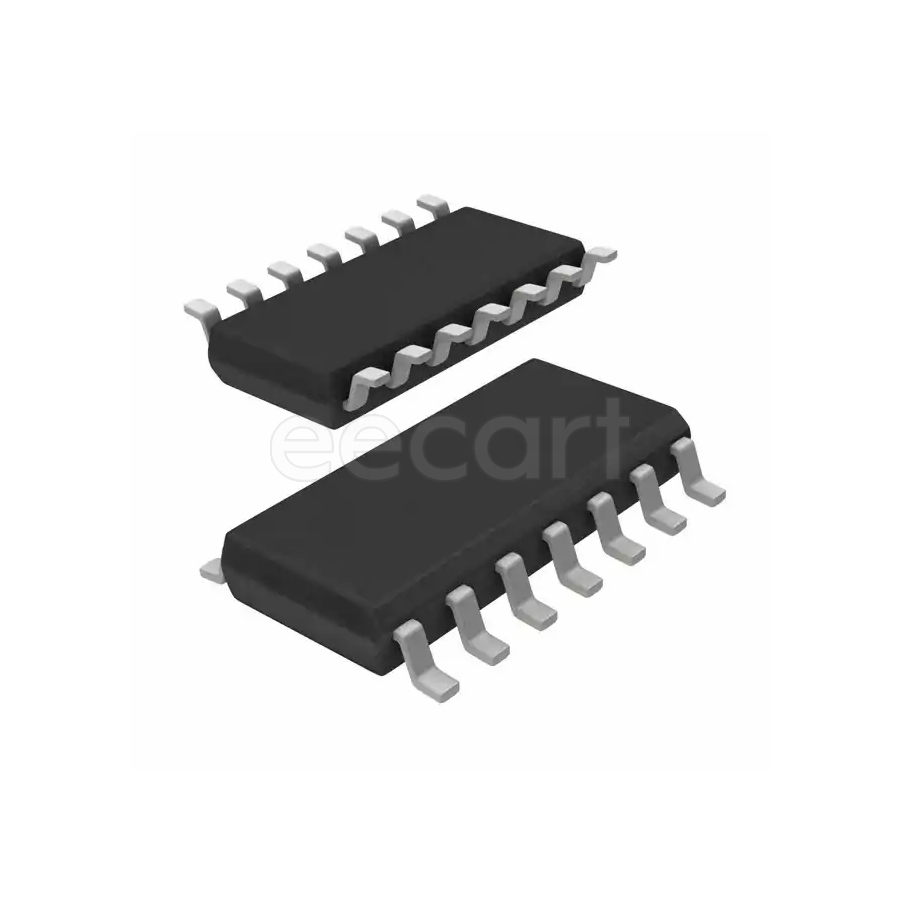

74HC4066D,652
Manufacturer:
Nexperia
Mfr.Part #:
74HC4066D,652
Datasheet:
Description:
Analogue Switch ICs SO-14 SMD/SMT Number of Channels:4 85 Ω 30 ns 20 ns
| Parameter | Value |
|---|---|
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Bulk |
| RoHS | Compliant |
| Lifecycle Status | Active |
| Max Supply Voltage | 10 V |
| Min Supply Voltage | 2 V |
| Mounting Style | Surface Mount |
| lead free status | Lead Free |
| Number of Channels | 4 |
| operating temperature | -40.0 °C to 125 °C |
| pin count | 14 |
| rohs status | Compliant |
| Turn-On Delay Time | 30 ns |
| Turn-Off Delay Time | 20 ns |
| -3db Bandwidth | 200 MHz |
| Propagation Delay | 75 ns |
| High Level Output Current | |
| Low Level Output Current | |
| Number of Inputs | 4 |
| Number of Outputs | 4 |
| On Resistance (RON) | 85 Ω |
| Logic Family | 74HC |
| Configuration | 4 x SPST |
