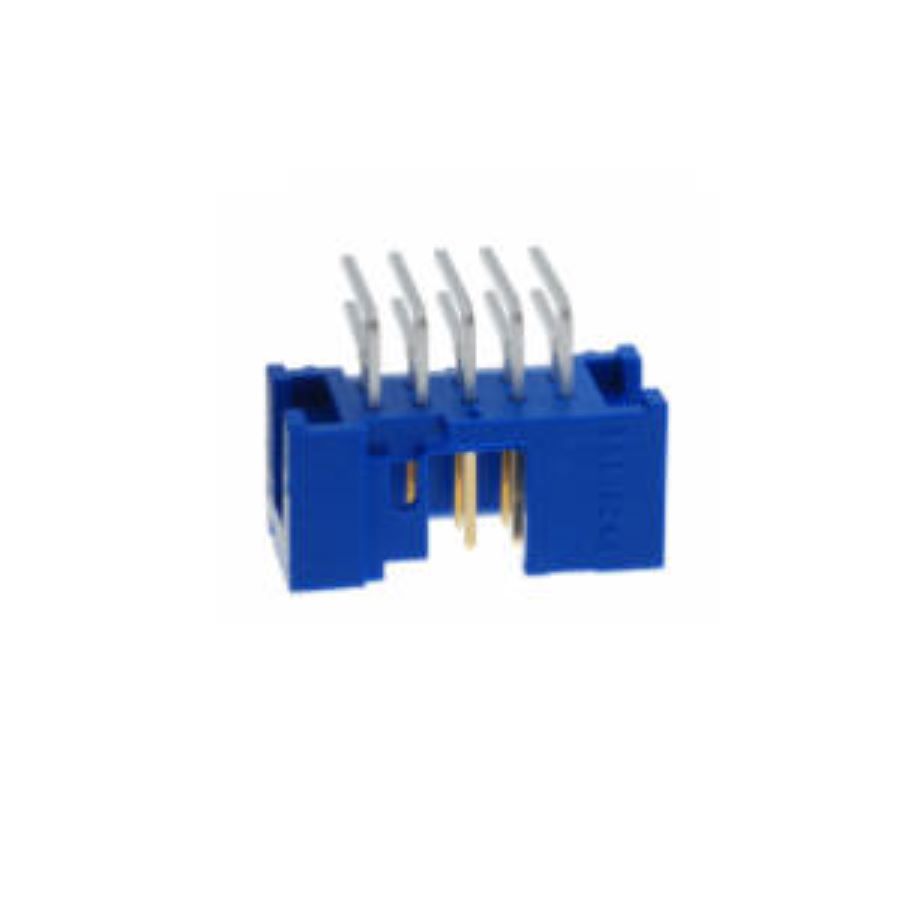

75867-101LF
Manufacturer:
Amphenol
Mfr.Part #:
75867-101LF
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:10 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 19.91 mm |
| Width | 9.57 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -65 °C |
| Packaging | Tube |
| Voltage Rating | 500 V |
| Depth | 13.91 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Insulation Resistance | 100 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Lead Length | 3.05 mm |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.54 mm |
| Current Rating | 1 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Right Angle |
| Color | Blue |
| Gender | Pin (Male) |
| Number of Contacts | 10 |
| Hole Diameter | 1 mm |
| Number of Poles | 10 |
| Connector Type | Header |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Thermoplastic |
| Max Voltage Rating (AC) | 500 V |
| Housing Color | Blue |
| Contact Mating Length | 5.9944 mm |
| Mating Post Length | 6 mm |
| Termination Post Length | 3.05 mm |
Stock: 767
Distributors
pcbx
pcbxUnit Price$0.75733
Ext.Price$0.75733
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.75733 | $0.75733 |
| 10 | $0.70929 | $7.09290 |
| 25 | $0.66430 | $16.60750 |
| 50 | $0.62216 | $31.10800 |
| 100 | $0.58269 | $58.26900 |
| 300 | $0.54573 | $163.71900 |
| 500 | $0.51111 | $255.55500 |
| 1000 | $0.47869 | $478.69000 |
| 3000 | $0.44832 | $1344.96000 |
| 5000 | $0.41988 | $2099.40000 |
| 10000 | $0.39324 | $3932.40000 |
