75867-131LF
Manufacturer:
Amphenol
Mfr.Part #:
75867-131LF
Datasheet:
Description:

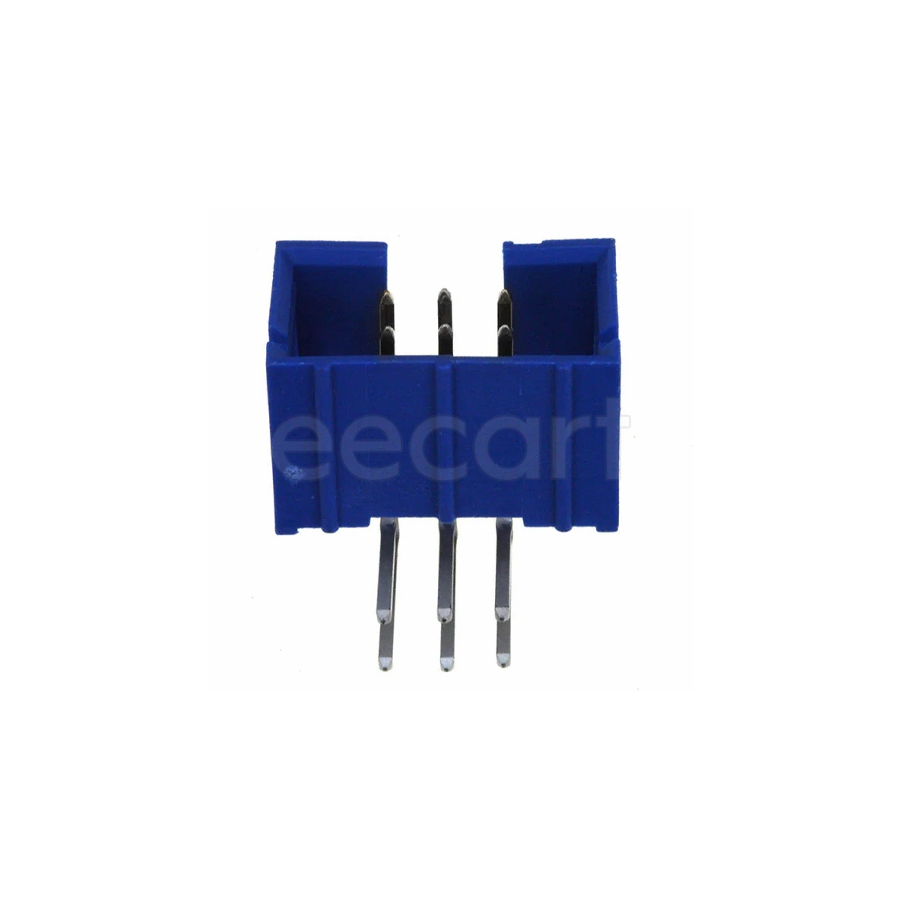

Headers and Wire Housings Through Hole Male Pin Number of Positions:6 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 14.83 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -65 °C |
| Voltage Rating | 500 V |
| Depth | 13.91 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Lead Length | 3.05 mm |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Orientation | Right Angle |
| Color | Blue |
| Gender | Male |
| Number of Contacts | 6 |
| Connector Type | Male Pin |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Thermoplastic |
| Max Voltage Rating (AC) | 500 V |
| Housing Color | Blue |
| Contact Mating Length | 5.9944 mm |
| Mating Post Length | 6 mm |
| Packaging | Bulk |
| Termination Post Length | 3.05 mm |
Stock: 4929
Distributors
pcbx
pcbxUnit Price$0.51980
Ext.Price$0.51980
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.51980 | $0.51980 |
| 10 | $0.45311 | $4.53110 |
| 25 | $0.41977 | $10.49425 |
| 50 | $0.40780 | $20.39000 |
| 100 | $0.38900 | $38.90000 |
| 300 | $0.36290 | $108.87000 |
| 500 | $0.33855 | $169.27500 |
