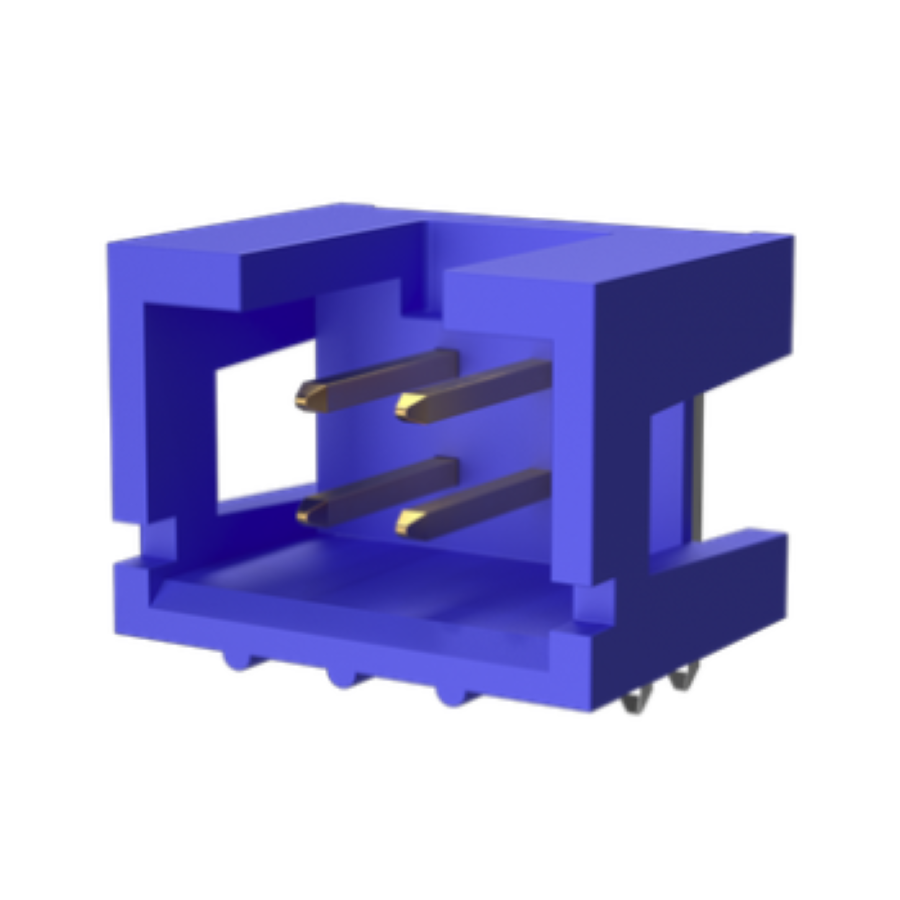

75867-132LF
Manufacturer:
Amphenol
Mfr.Part #:
75867-132LF
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:8 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 17.37 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -65 °C |
| Height | 9.5 mm |
| Packaging | Bulk |
| Voltage Rating | 500 V |
| Depth | 13.91 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Gold |
| Lead Length | 3.05 mm |
| Contact Material(Contact Finish) | Bronze, Nickel, Tin |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Orientation | Right Angle |
| Color | Blue |
| Gender | Pin (Male) |
| Number of Contacts | 8 |
| Connector Type | Header |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Thermoplastic |
| Max Voltage Rating (AC) | 500 V |
| Housing Color | Blue |
| Contact Mating Length | 5.9944 mm |
| Mating Post Length | 6 mm |
| Termination Post Length | 3.05 mm |
Stock: 2034
Distributors
pcbx
pcbxUnit Price$0.64460
Ext.Price$0.64460
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.64460 | $0.64460 |
| 10 | $0.54625 | $5.46250 |
| 25 | $0.51734 | $12.93350 |
| 50 | $0.48996 | $24.49800 |
| 100 | $0.46402 | $46.40200 |
| 300 | $0.43837 | $131.51100 |
| 500 | $0.41414 | $207.07000 |
| 1000 | $0.39436 | $394.36000 |
| 3000 | $0.37260 | $1117.80000 |
| 5000 | $0.35204 | $1760.20000 |
| 10000 | $0.33525 | $3352.50000 |
