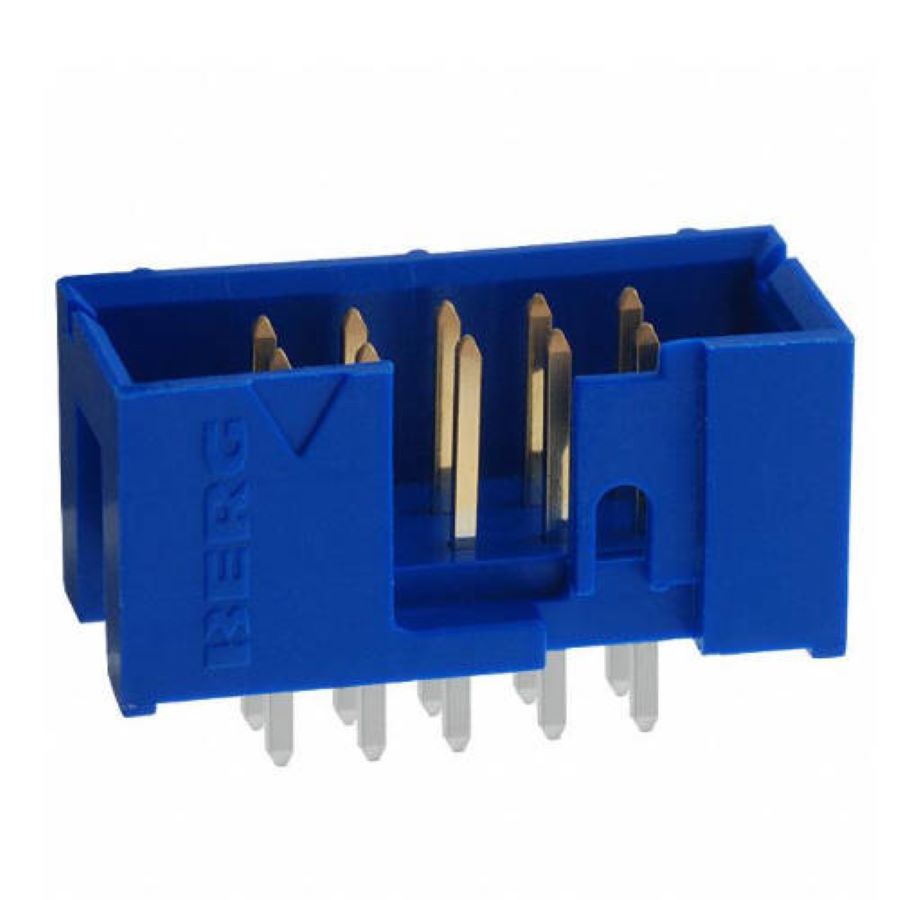

75869-101LF
Manufacturer:
Amphenol
Mfr.Part #:
75869-101LF
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:10 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 19.91 mm |
| Width | 9.55 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -65 °C |
| Height | 27.2 mm |
| Packaging | Tube |
| Voltage Rating | 500 V |
| Depth | 9.55 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Insulation Resistance | 100 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Lead Length | 3.05 mm |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.54 mm |
| Current Rating | 1 A |
| Max Current Rating | 2 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Color | Blue |
| Gender | Male |
| Number of Contacts | 10 |
| Hole Diameter | 1 mm |
| Number of Poles | 10 |
| Connector Type | Male Pin |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Thermoplastic |
| Max Voltage Rating (AC) | 500 V |
| Housing Color | Blue |
| Contact Mating Length | 5.9944 mm |
| Contact Gender | Male |
| Mating Post Length | 6 mm |
| Termination Post Length | 3.05 mm |
Stock: 662
Distributors
pcbx
pcbxUnit Price$0.42576
Ext.Price$0.42576
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.42576 | $0.42576 |
| 10 | $0.37703 | $3.77030 |
| 25 | $0.33770 | $8.44250 |
| 50 | $0.32860 | $16.43000 |
| 100 | $0.31974 | $31.97400 |
| 300 | $0.31760 | $95.28000 |
| 500 | $0.31547 | $157.73500 |
| 1000 | $0.28671 | $286.71000 |
| 3000 | $0.26057 | $781.71000 |
| 5000 | $0.23681 | $1184.05000 |
