75869-131LF
Manufacturer:
Amphenol
Mfr.Part #:
75869-131LF
Datasheet:
Description:

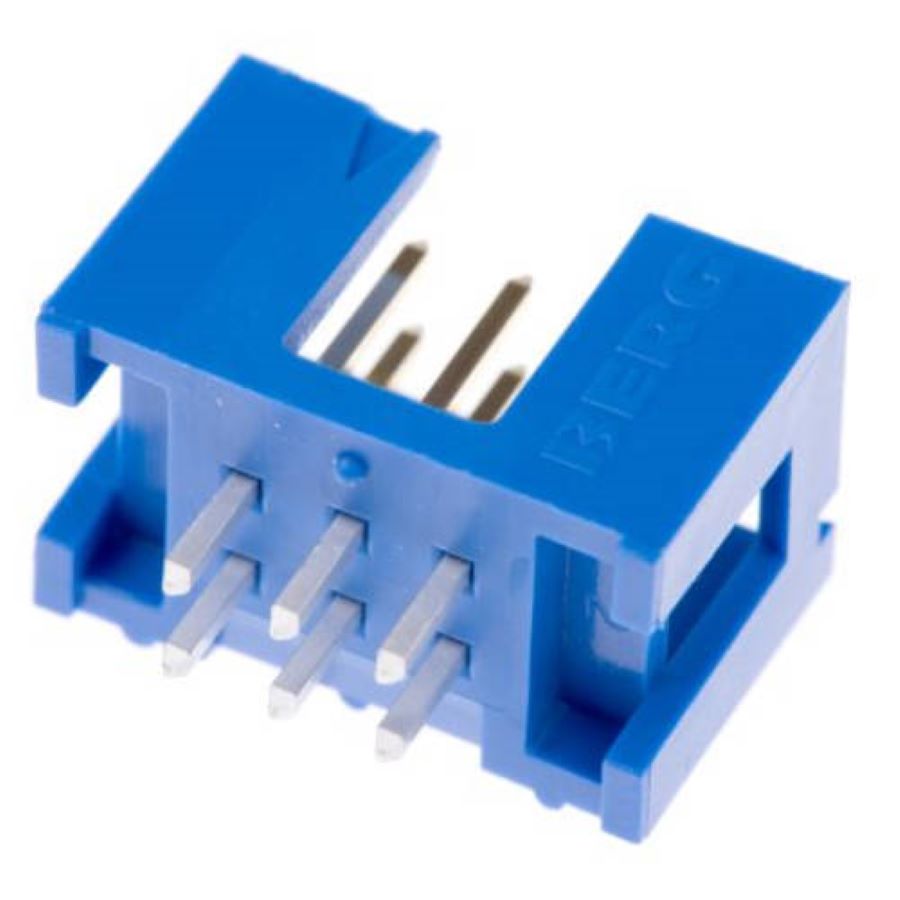

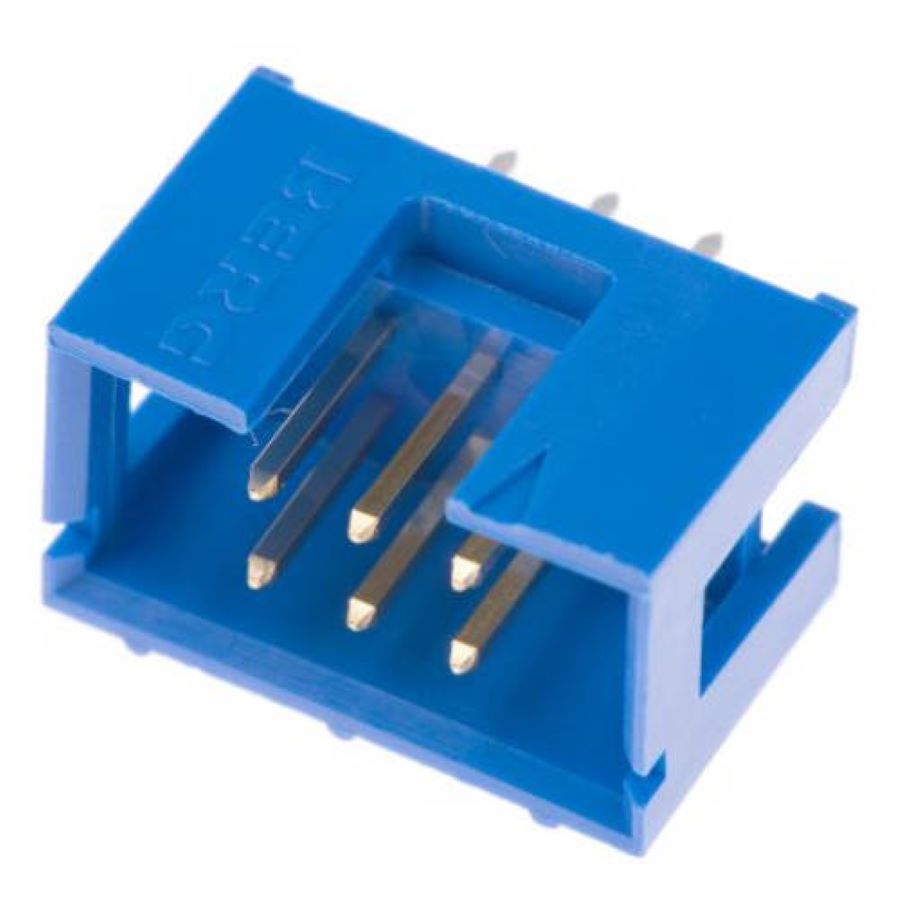

Headers and Wire Housings Through Hole Male Pin Number of Positions:6 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 14.83 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -65 °C |
| Height | 27.2 mm |
| Packaging | Bulk |
| Voltage Rating | 500 V |
| Depth | 9.55 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Lead Length | 3.05 mm |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Max Current Rating | 2 A |
| Orientation | Straight |
| Color | Blue |
| Gender | Male |
| Number of Contacts | 6 |
| Connector Type | Male Pin |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Thermoplastic |
| Max Voltage Rating (AC) | 500 V |
| Housing Color | Blue |
| Contact Mating Length | 5.9944 mm |
| Contact Gender | Male |
| Mating Post Length | 6 mm |
| Termination Post Length | 3.05 mm |
Stock: 66
Distributors
pcbx
pcbxUnit Price$0.58867
Ext.Price$0.58867
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.58867 | $0.58867 |
| 10 | $0.48202 | $4.82020 |
| 25 | $0.44504 | $11.12600 |
| 50 | $0.41089 | $20.54450 |
| 100 | $0.37937 | $37.93700 |
| 300 | $0.36230 | $108.69000 |
| 500 | $0.34600 | $173.00000 |
| 1000 | $0.33077 | $330.77000 |
| 3000 | $0.32654 | $979.62000 |
