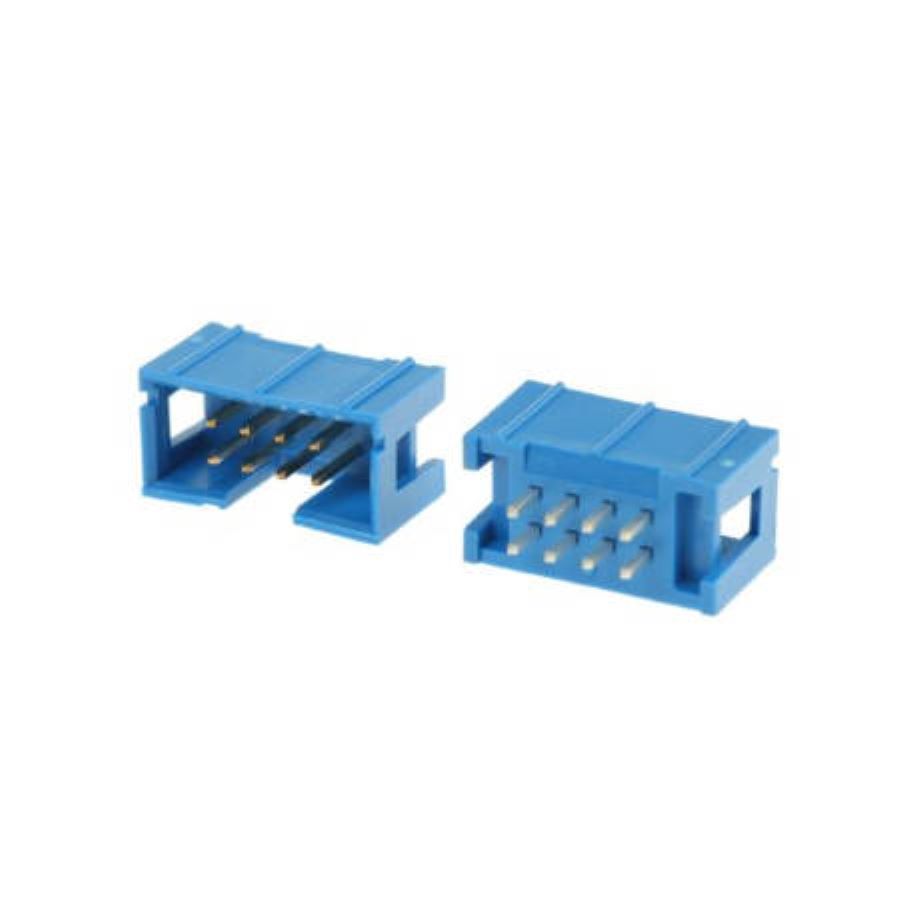

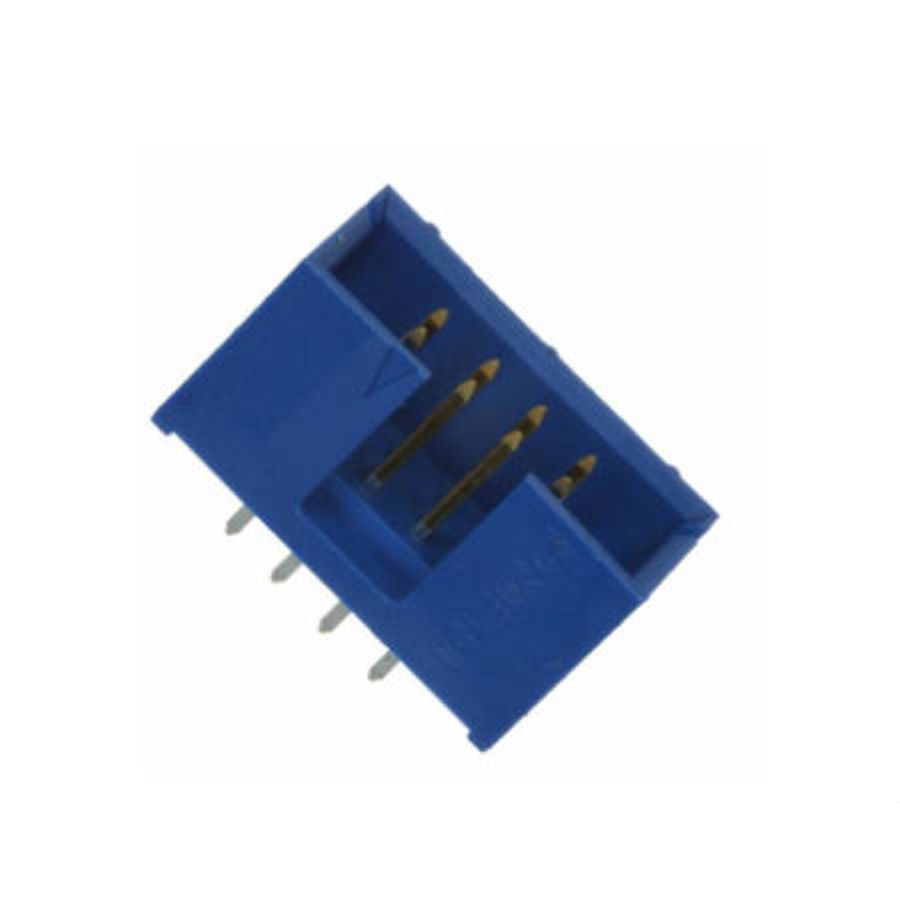

75869-132LF
Manufacturer:
Amphenol
Mfr.Part #:
75869-132LF
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:8 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 17.37 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -65 °C |
| Packaging | Bulk |
| Voltage Rating | 500 V |
| Depth | 9.55 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Lead Length | 3.05 mm |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Orientation | Straight |
| Color | Blue |
| Gender | Pin (Male) |
| Number of Contacts | 8 |
| Connector Type | Header |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Thermoplastic |
| Max Voltage Rating (AC) | 500 V |
| Housing Color | Blue |
| Contact Mating Length | 5.9944 mm |
| Mating Post Length | 6 mm |
| Termination Post Length | 3.05 mm |
Stock: 23
Distributors
pcbx
pcbxUnit Price$1.01328
Ext.Price$1.01328
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.01328 | $1.01328 |
| 10 | $0.83395 | $8.33950 |
| 25 | $0.75999 | $18.99975 |
| 50 | $0.69259 | $34.62950 |
| 100 | $0.63118 | $63.11800 |
| 300 | $0.60579 | $181.73700 |
| 500 | $0.58142 | $290.71000 |
| 1000 | $0.55872 | $558.72000 |
