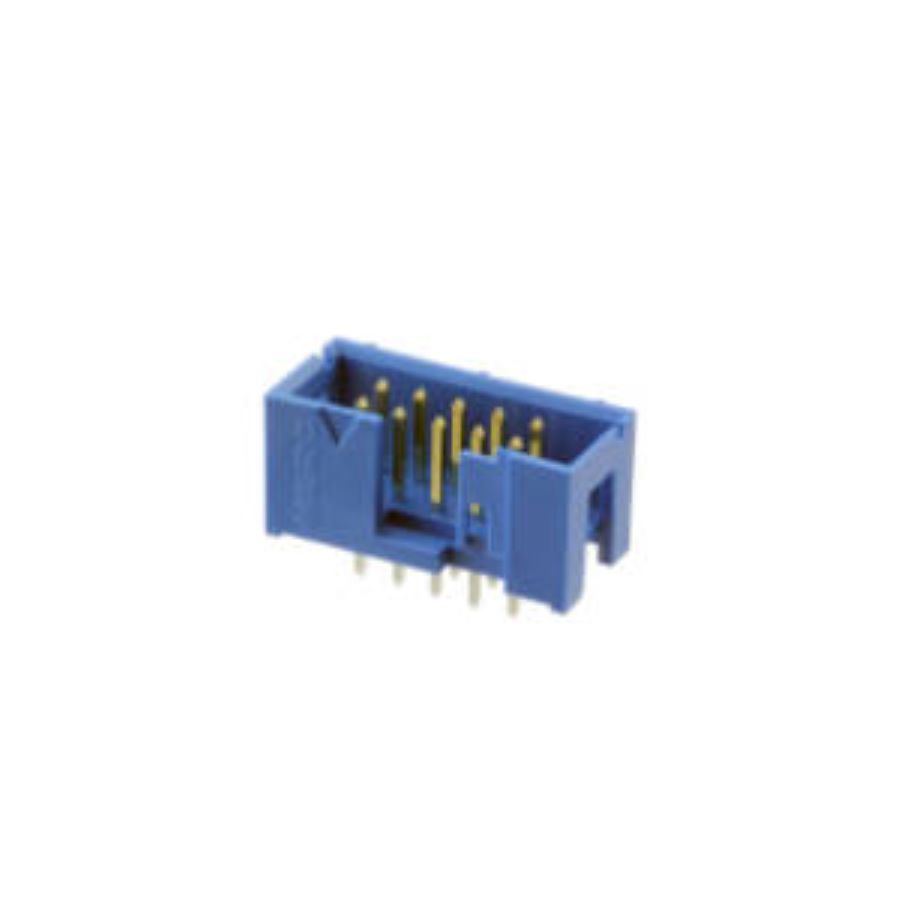

75869-301LF
Manufacturer:
Amphenol
Mfr.Part #:
75869-301LF
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:10 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 19.91 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -65 °C |
| Number of Pins | 10 |
| Packaging | Tube |
| Depth | 9.55 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Contact Plating | GXT, Gold |
| Lead Length | 3.05 mm |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Orientation | Straight |
| Color | Blue |
| Gender | Male |
| Number of Contacts | 10 |
| Connector Type | Male Pin |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Thermoplastic |
| Max Voltage Rating (AC) | 500 V |
| Housing Color | Blue |
| Contact Mating Length | 5.9944 mm |
| Mating Post Length | 6 mm |
Stock: 4274
Distributors
pcbx
pcbxUnit Price$0.76345
Ext.Price$0.76345
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.76345 | $0.76345 |
| 10 | $0.65060 | $6.50600 |
| 25 | $0.63863 | $15.96575 |
| 50 | $0.59389 | $29.69450 |
| 100 | $0.55229 | $55.22900 |
| 300 | $0.48849 | $146.54700 |
| 500 | $0.43206 | $216.03000 |
| 1000 | $0.38216 | $382.16000 |
