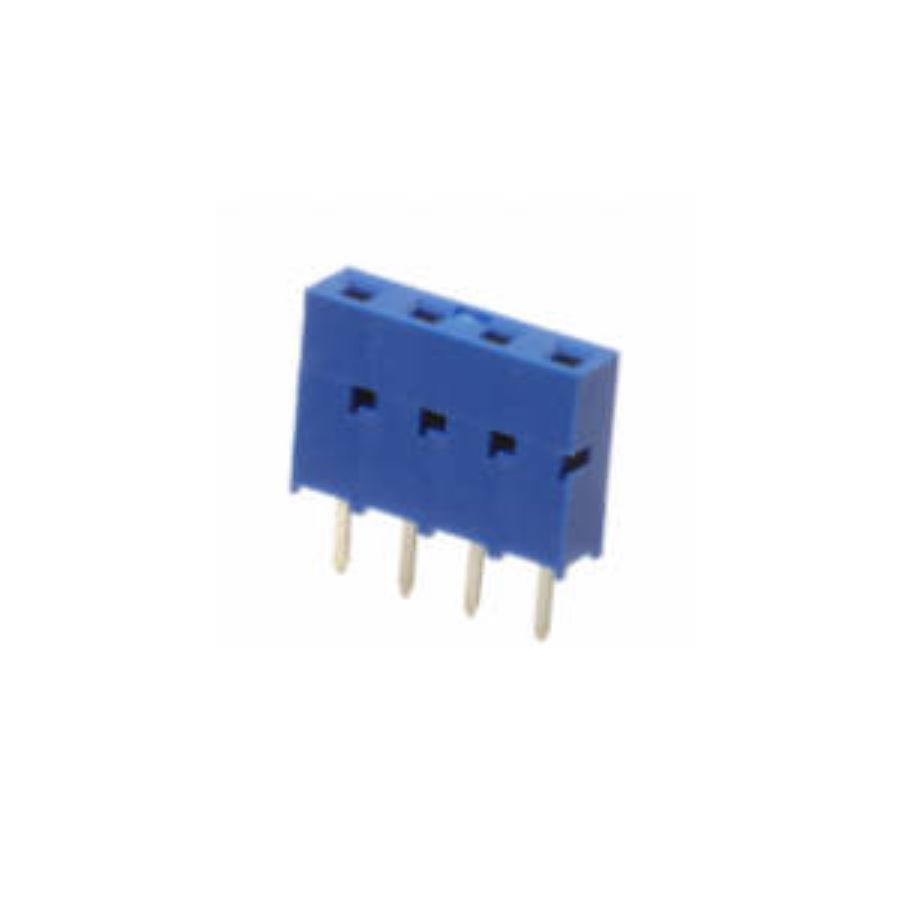

76341-304LF
Manufacturer:
Amphenol
Mfr.Part #:
76341-304LF
Datasheet:
Description:
Board to Board Connectors Through Hole Receptacle Number of Positions:4 Number of Rows:1 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 10.08 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -65 °C |
| Packaging | Bulk |
| Voltage Rating | 1000 V (1 kV) |
| Depth | 2.54 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Insulation Resistance | 100 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Phosphor Bronze |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Orientation | Straight |
| Color | Blue |
| Gender | Receptacle |
| Number of Contacts | 4 |
| Number of Poles | 4 |
| Connector Type | Receptacle |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Housing Material | Thermoplastic (TP) |
| Contact Resistance | 20 mΩ |
| Max Voltage Rating (AC) | 1 kV |
| Housing Color | Blue |
| Stack Height | 11 mm |
| Mounting Angle | Vertical |
Stock: 2249
Distributors
pcbx
pcbxUnit Price$0.36933
Ext.Price$0.36933
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.36933 | $0.36933 |
| 10 | $0.31718 | $3.17180 |
| 25 | $0.30777 | $7.69425 |
| 50 | $0.28698 | $14.34900 |
| 100 | $0.26760 | $26.76000 |
| 300 | $0.23596 | $70.78800 |
| 500 | $0.22725 | $113.62500 |
| 1000 | $0.21886 | $218.86000 |
| 3000 | $0.21118 | $633.54000 |
| 5000 | $0.20377 | $1018.85000 |
| 10000 | $0.19663 | $1966.30000 |
