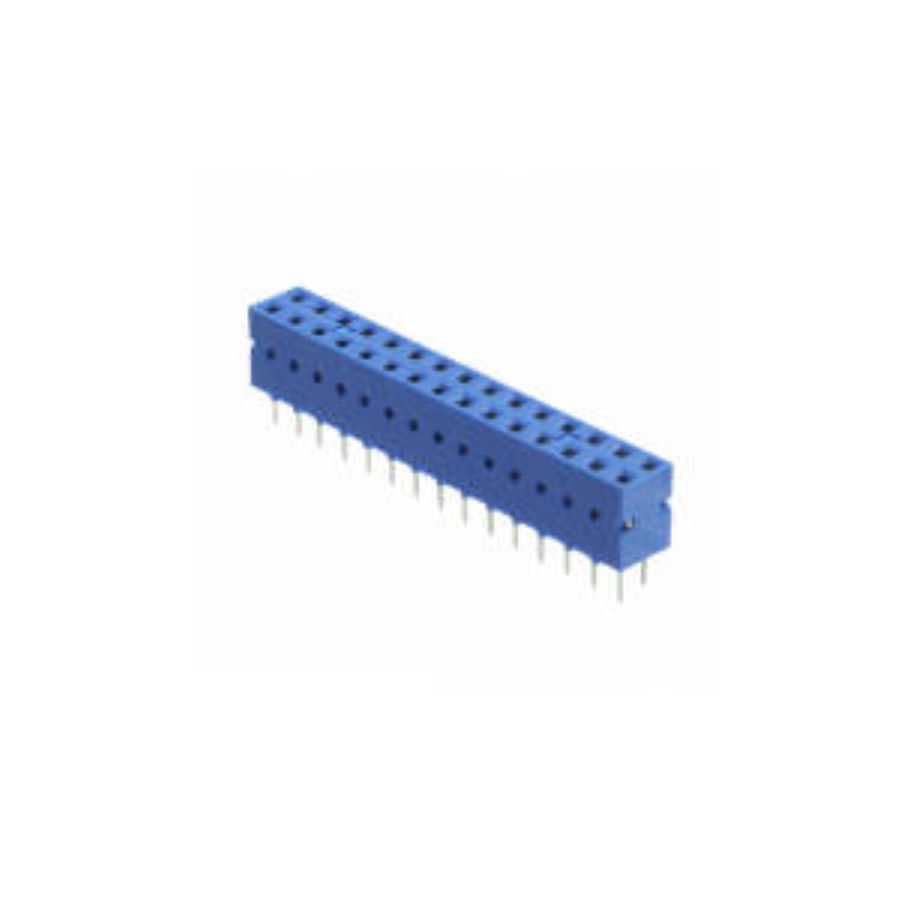

76342-315LF
Manufacturer:
Amphenol
Mfr.Part #:
76342-315LF
Datasheet:
Description:
Board to Board Connectors Through Hole Receptacle Number of Positions:30 Number of Rows:2 Row Spacing:2.54 mm Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 38.02 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -65 °C |
| Packaging | Tube |
| Voltage Rating | 1000 V (1 kV) |
| Depth | 5.08 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Insulation Resistance | 100 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Orientation | Straight |
| Color | Blue |
| Gender | Receptacle |
| Number of Contacts | 30 |
| Number of Poles | 15 |
| Connector Type | Receptacle |
| Number of Positions | 30 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Thermoplastic |
| Contact Resistance | 20 mΩ |
| Max Voltage Rating (AC) | 1 kV |
| Housing Color | Blue |
| Stack Height | 7 mm |
| Mounting Angle | Vertical |
Stock: 3
Distributors
pcbx
pcbxUnit Price$3.95731
Ext.Price$3.95731
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $3.95731 | $3.95731 |
| 10 | $3.86016 | $38.60160 |
| 25 | $3.82952 | $95.73800 |
| 50 | $3.79913 | $189.95650 |
| 100 | $3.76894 | $376.89400 |
