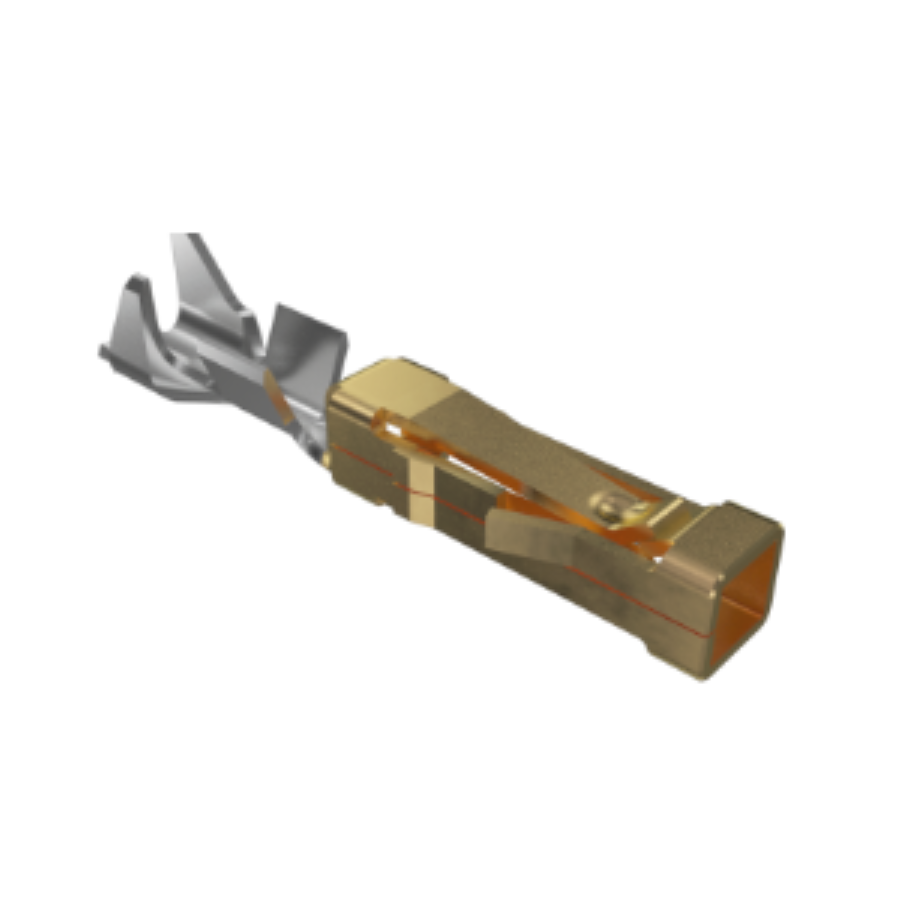

76347-302LF
Manufacturer:
Amphenol
Mfr.Part #:
76347-302LF
Datasheet:
Description:
Headers and Wire Housings Cable Connector, Crimp, PCB, Signal Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 11.56 mm |
| Termination | Crimp |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Reel |
| Voltage Rating | 1000 V (1 kV) |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Max Current Rating | 3 A |
| Orientation | Straight |
| Gender | Female |
| Connector Type | Connector, Crimp, PCB, Signal |
| Wire/Cable Gauge | 22 AWG |
| Number of Rows | 1 |
| Wire Gauge (Max) | 30 AWG |
| Wire Gauge (Min) | 22 AWG |
| Schedule B | 8536695050 |
Stock: 12961
Distributors
pcbx
pcbxUnit Price$0.10601
Ext.Price$0.10601
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.10601 | $0.10601 |
| 10 | $0.08720 | $0.87200 |
| 50 | $0.07747 | $3.87350 |
| 100 | $0.06882 | $6.88200 |
| 500 | $0.06463 | $32.31500 |
| 1000 | $0.06070 | $60.70000 |
| 3000 | $0.05854 | $175.62000 |
| 5000 | $0.05646 | $282.30000 |
| 10000 | $0.05446 | $544.60000 |
