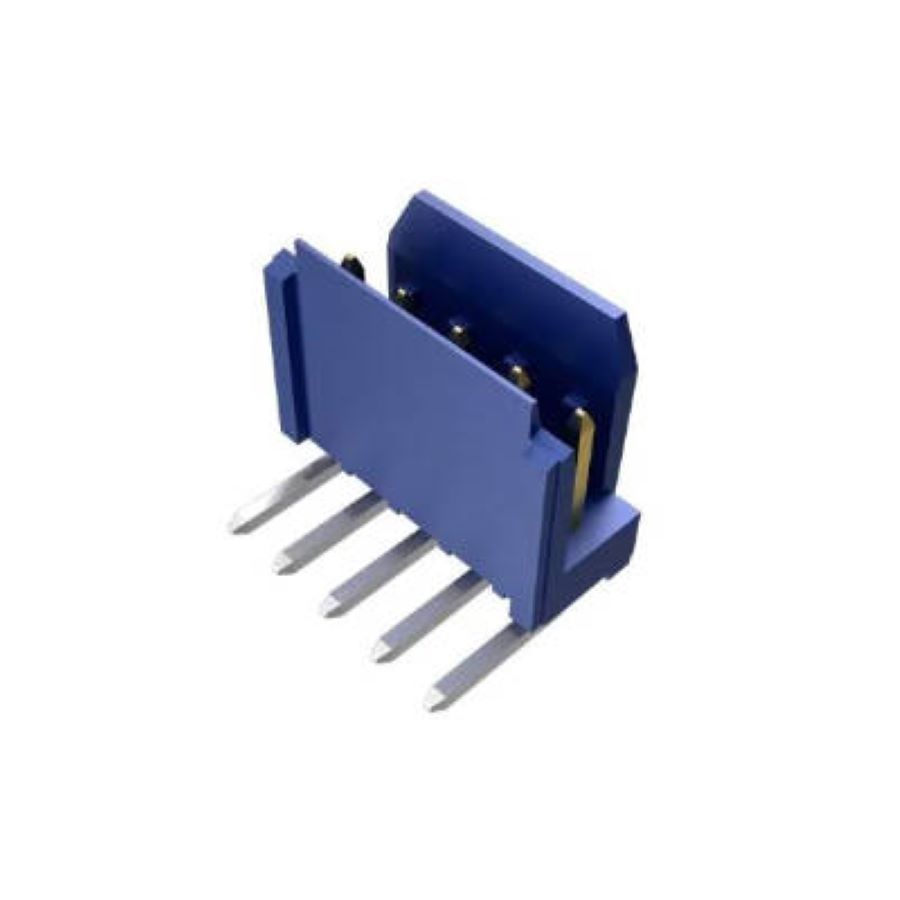

76382-304LF
Manufacturer:
Amphenol
Mfr.Part #:
76382-304LF
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:4 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 9.98 mm |
| Width | 9.34 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 4 |
| Packaging | Bulk |
| Voltage Rating | 1000 V (1 kV) |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 100 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Lead Length | 3.4 mm |
| Contact Material(Contact Finish) | Bronze, Gold, Nickel |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Orientation | Right Angle |
| Color | Blue |
| Gender | Pin (Male) |
| Number of Contacts | 4 |
| Connector Type | Header |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Housing Material | Polyester |
| Fastening Type | Friction |
| Max Voltage Rating (AC) | 1 kV |
| Housing Color | Blue |
| Contact Mating Length | 5.0038 mm |
| Mating Post Length | 5 mm |
| Schedule B | 8536694040 |
| Termination Post Length | 3.4 mm |
Stock: 428
Distributors
pcbx
pcbxUnit Price$0.53860
Ext.Price$0.53860
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.53860 | $0.53860 |
| 10 | $0.45653 | $4.56530 |
| 25 | $0.43281 | $10.82025 |
| 50 | $0.41032 | $20.51600 |
| 100 | $0.38900 | $38.90000 |
| 300 | $0.36700 | $110.10000 |
| 500 | $0.34624 | $173.12000 |
| 1000 | $0.32830 | $328.30000 |
