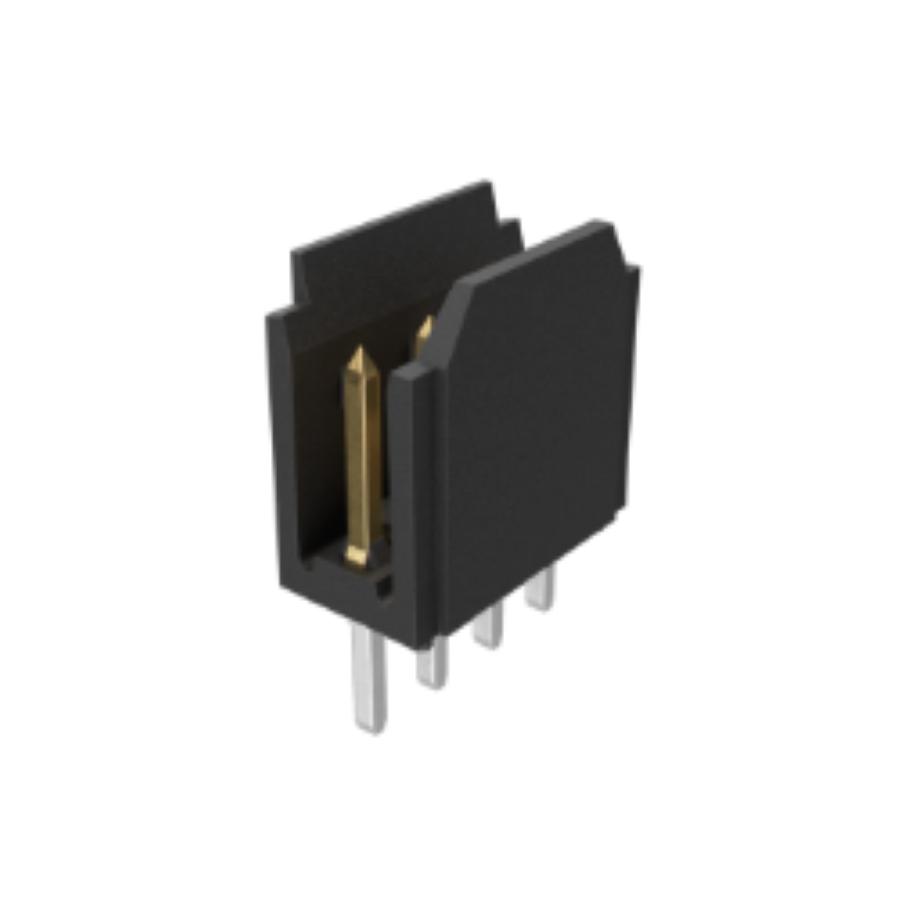

76384-302LF
Manufacturer:
Amphenol
Mfr.Part #:
76384-302LF
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:2 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 4.08 mm |
| Width | 4.7 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Packaging | Bulk |
| Voltage Rating | 1000 V (1 kV) |
| Depth | 5 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 100 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Lead Length | 3.4 mm |
| Contact Material(Contact Finish) | Copper |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Output Current | 1.4 A |
| Orientation | Straight |
| Color | Black |
| Gender | Male |
| Number of Contacts | 2 |
| Connector Type | Male Pin |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Thermoplastic |
| Fastening Type | Friction |
| Max Voltage Rating (AC) | 1000 V (1 kV) |
| Housing Color | Black |
| Contact Mating Length | 5.0038 mm |
| Mating Post Length | 5 mm |
| Termination Post Length | 3.4 mm |
