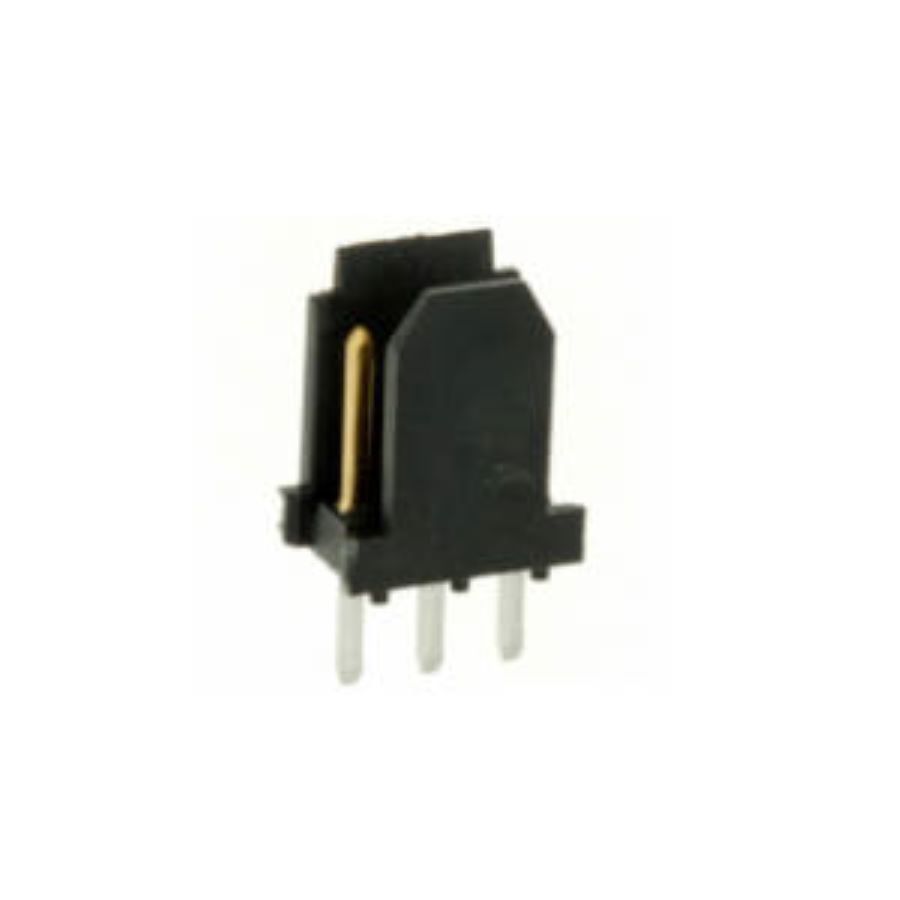

76384-303LF
Manufacturer:
Amphenol
Mfr.Part #:
76384-303LF
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:3 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 6.62 mm |
| Width | 4.7 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 3 |
| Packaging | Bulk |
| Voltage Rating | 1000 V (1 kV) |
| Depth | 5 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 100 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Lead Length | 3.4 mm |
| Contact Material(Contact Finish) | Copper |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Orientation | Straight |
| Color | Black |
| Gender | Male |
| Number of Contacts | 3 |
| Connector Type | Header |
| Contact Type | Male Pin |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Row Spacing | 2.54 mm |
| Housing Material | Thermoplastic |
| Fastening Type | Friction |
| Contact Style | Board to Cable/Wire |
| Max Voltage Rating (AC) | 1000 V (1 kV) |
| Housing Color | Black |
| Contact Mating Length | 5 mm |
| Mating Post Length | 5 mm |
| Termination Post Length | 3.43 mm |
Stock: 6
Distributors
pcbx
pcbxUnit Price$0.32573
Ext.Price$0.32573
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.32573 | $0.32573 |
| 10 | $0.27443 | $2.74430 |
| 25 | $0.25744 | $6.43600 |
| 50 | $0.24151 | $12.07550 |
| 100 | $0.22656 | $22.65600 |
| 300 | $0.21642 | $64.92600 |
| 500 | $0.20674 | $103.37000 |
| 1000 | $0.19749 | $197.49000 |
| 3000 | $0.18697 | $560.91000 |
| 5000 | $0.17701 | $885.05000 |
| 10000 | $0.16757 | $1675.70000 |
