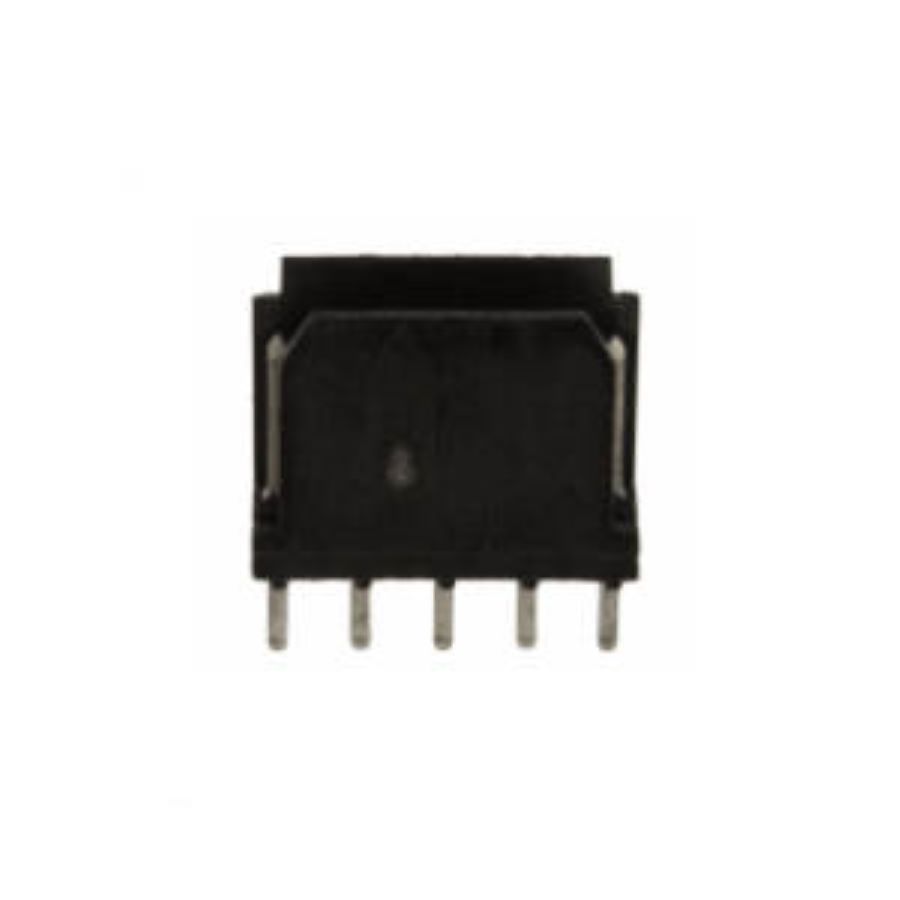

76384-405LF
Manufacturer:
Amphenol
Mfr.Part #:
76384-405LF
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:5 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 11.7 mm |
| Width | 4.7 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Bulk |
| Voltage Rating | 1000 V (1 kV) |
| Depth | 5 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Tin |
| Lead Length | 3.4 mm |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Orientation | Straight |
| Color | Black |
| Gender | Male |
| Number of Contacts | 5 |
| Connector Type | Male Pin |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Housing Material | Thermoplastic |
| Fastening Type | Friction |
| Max Voltage Rating (AC) | 1 kV |
| Housing Color | Black |
| Contact Mating Length | 5.0038 mm |
| Mating Post Length | 5 mm |
| Schedule B | 8536694040 |
| Termination Post Length | 3.43 mm |
Stock: 385
Distributors
pcbx
pcbxUnit Price$0.58220
Ext.Price$0.58220
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.58220 | $0.58220 |
| 10 | $0.49415 | $4.94150 |
| 25 | $0.47449 | $11.86225 |
| 50 | $0.46423 | $23.21150 |
| 100 | $0.44456 | $44.45600 |
| 300 | $0.40190 | $120.57000 |
| 500 | $0.36334 | $181.67000 |
| 1000 | $0.33086 | $330.86000 |
