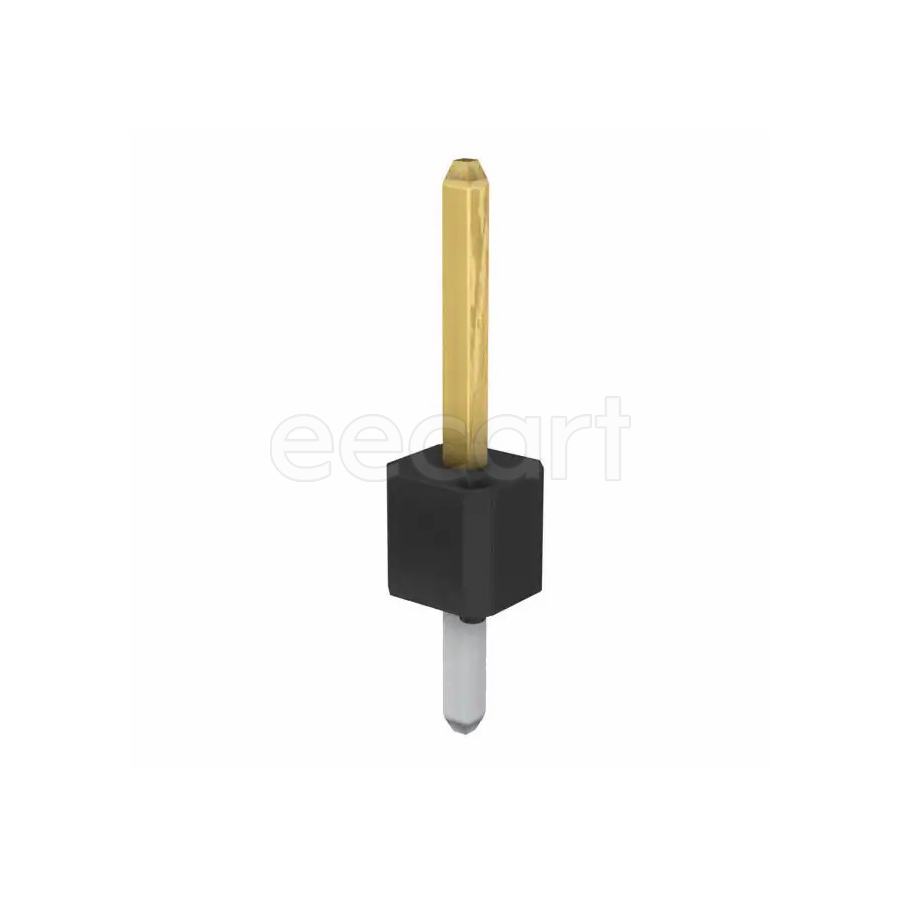

77311-118-01LF
Manufacturer:
Amphenol
Mfr.Part #:
77311-118-01LF
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:1 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 2.54 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -65 °C |
| Packaging | Bag |
| Voltage Rating | 1500 V (1.5 kV) |
| Depth | 2.4 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 5 GΩ |
| Contact Plating | GXT, Gold |
| Lead Length | 3.05 mm |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Color | Black |
| Gender | Male |
| Number of Contacts | 1 |
| Connector Type | Male Pin |
| Number of Positions | 1 |
| Number of Rows | 1 |
| Housing Material | Thermoplastic |
| Max Voltage Rating (AC) | 1.5 kV |
| Housing Color | Black |
| Contact Mating Length | 5.842 mm |
| Contact Gender | Male |
| Mating Post Length | 5.84 mm |
| Schedule B | 8535908040 |
| Termination Post Length | 3.05 mm |
Stock: 15262
Distributors
pcbx
pcbxUnit Price$0.07506
Ext.Price$0.07506
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.07506 | $0.07506 |
| 10 | $0.06070 | $0.60700 |
| 50 | $0.05891 | $2.94550 |
| 100 | $0.05718 | $5.71800 |
| 500 | $0.05550 | $27.75000 |
| 1000 | $0.05386 | $53.86000 |
