77311-118-02LF
Manufacturer:
Amphenol
Mfr.Part #:
77311-118-02LF
Datasheet:
Description:

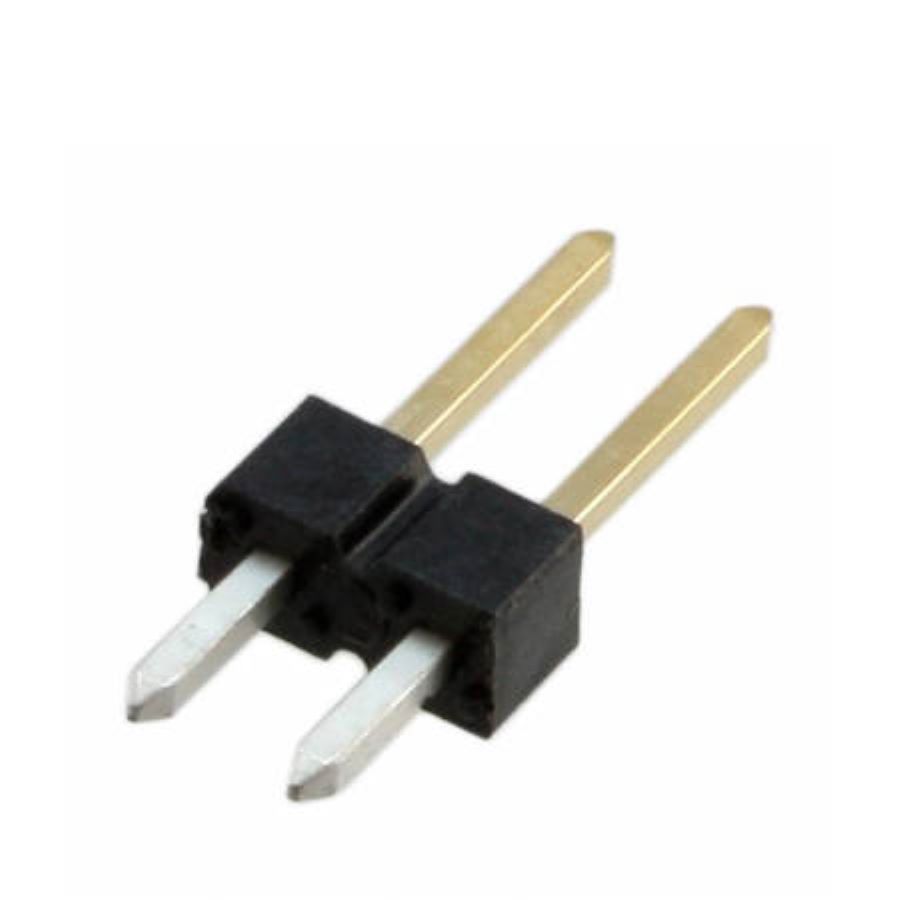

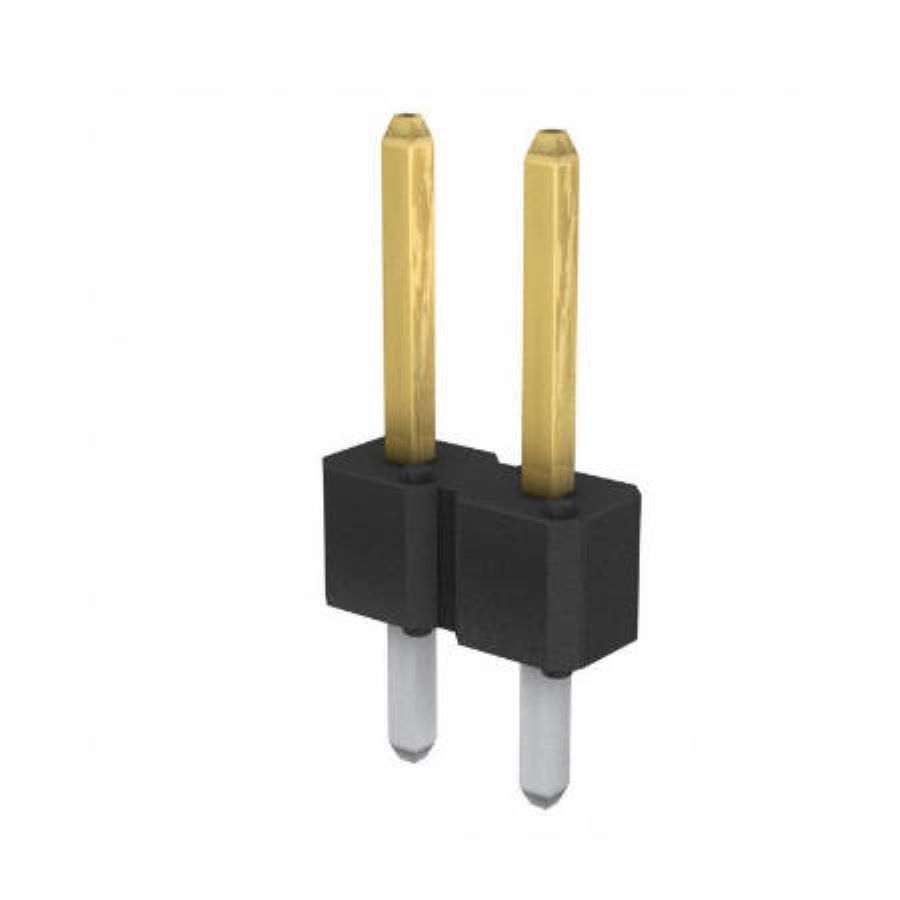

Headers and Wire Housings Through Hole Male Pin Number of Positions:2 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -65 °C |
| Height | 8.73 mm |
| Packaging | Bulk |
| Voltage Rating | 1500 V (1.5 kV) |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Gold, Nickel |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Color | Black |
| Number of Contacts | 2 |
| Connector Type | Male Pin |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Mating Post Length | 5.84 mm |
| Termination Post Length | 3.05 mm |
Stock: 383
Distributors
pcbx
pcbxUnit Price$0.15322
Ext.Price$0.15322
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.15322 | $0.15322 |
| 10 | $0.13897 | $1.38970 |
| 50 | $0.12605 | $6.30250 |
| 100 | $0.11551 | $11.55100 |
| 500 | $0.10585 | $52.92500 |
| 1000 | $0.09700 | $97.00000 |
| 3000 | $0.09105 | $273.15000 |
| 5000 | $0.08546 | $427.30000 |
