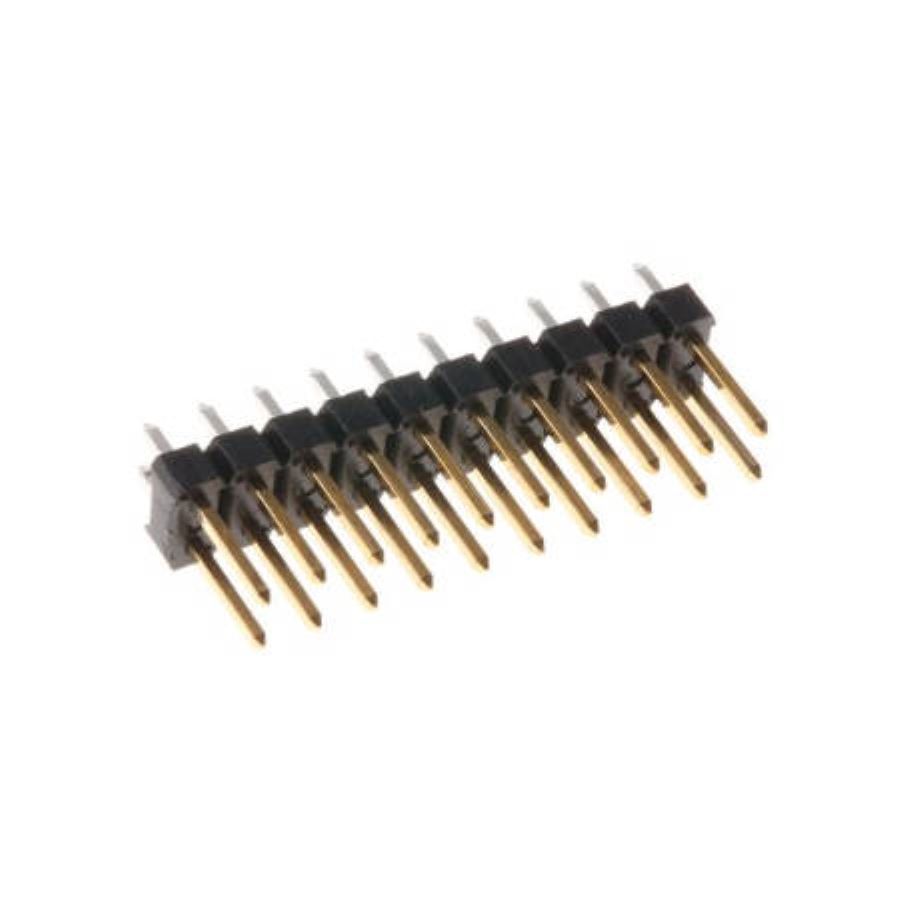

77313-101-20LF
Manufacturer:
Amphenol
Mfr.Part #:
77313-101-20LF
Datasheet:
Description:
Headers and Wire Housings Through Hole Header, Breakaway Number of Positions:20 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 25.4 mm |
| Termination | Solder |
| Max Operating Temperature | 130 °C |
| Min Operating Temperature | -65 °C |
| Material | Thermoplastic |
| Packaging | Bulk |
| Voltage Rating | 1500 V (1.5 kV) |
| Depth | 4.83 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 5 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Lead Length | 2.41 mm |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Color | Black |
| Gender | Pin (Male) |
| Number of Contacts | 20 |
| Connector Type | Header, Breakaway |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Thermoplastic |
| Max Voltage Rating (AC) | 1.5 kV |
| Housing Color | Black |
| Contact Mating Length | 5.842 mm |
| Contact Gender | Male |
| Mating Post Length | 5.84 mm |
| Termination Post Length | 2.41 mm |
Stock: 7
Distributors
pcbx
pcbxUnit Price$0.66957
Ext.Price$0.66957
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.66957 | $0.66957 |
| 10 | $0.56690 | $5.66900 |
| 25 | $0.53695 | $13.42375 |
| 50 | $0.50859 | $25.42950 |
| 100 | $0.48172 | $48.17200 |
| 300 | $0.45627 | $136.88100 |
| 500 | $0.43217 | $216.08500 |
| 1000 | $0.40935 | $409.35000 |
| 3000 | $0.38676 | $1160.28000 |
| 5000 | $0.36542 | $1827.10000 |
| 10000 | $0.34799 | $3479.90000 |
