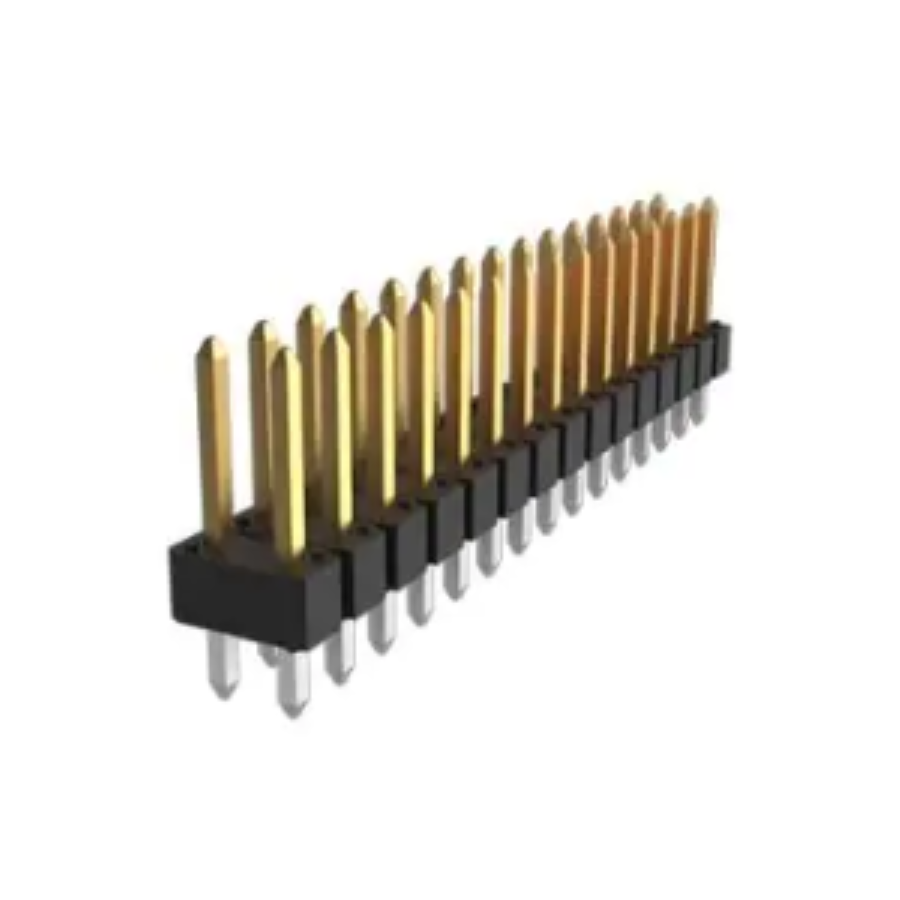

77313-422-14LF
Manufacturer:
Amphenol
Mfr.Part #:
77313-422-14LF
Datasheet:
Description:
Headers and Wire Housings Through Hole Header, Breakaway Number of Positions:14 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 17.78 mm |
| Termination | Solder Pin |
| Max Operating Temperature | 130 °C |
| Min Operating Temperature | -65 °C |
| Packaging | Bulk |
| Voltage Rating | 1500 V (1.5 kV) |
| Depth | 4.83 mm |
| RoHS | Compliant |
| Insulation Resistance | 5 GΩ |
| Contact Plating | Tin |
| Lead Length | 3.05 mm |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Orientation | Straight |
| Color | Black |
| Gender | Male |
| Number of Contacts | 14 |
| Connector Type | Header, Breakaway |
| Number of Positions | 14 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Thermoplastic |
| Max Voltage Rating (AC) | 1500 V (1.5kV) |
| Housing Color | Black |
| Contact Mating Length | 7.747 mm |
| Contact Gender | Male |
| Mating Post Length | 7.75 mm |
| Termination Post Length | 3.05 mm |
