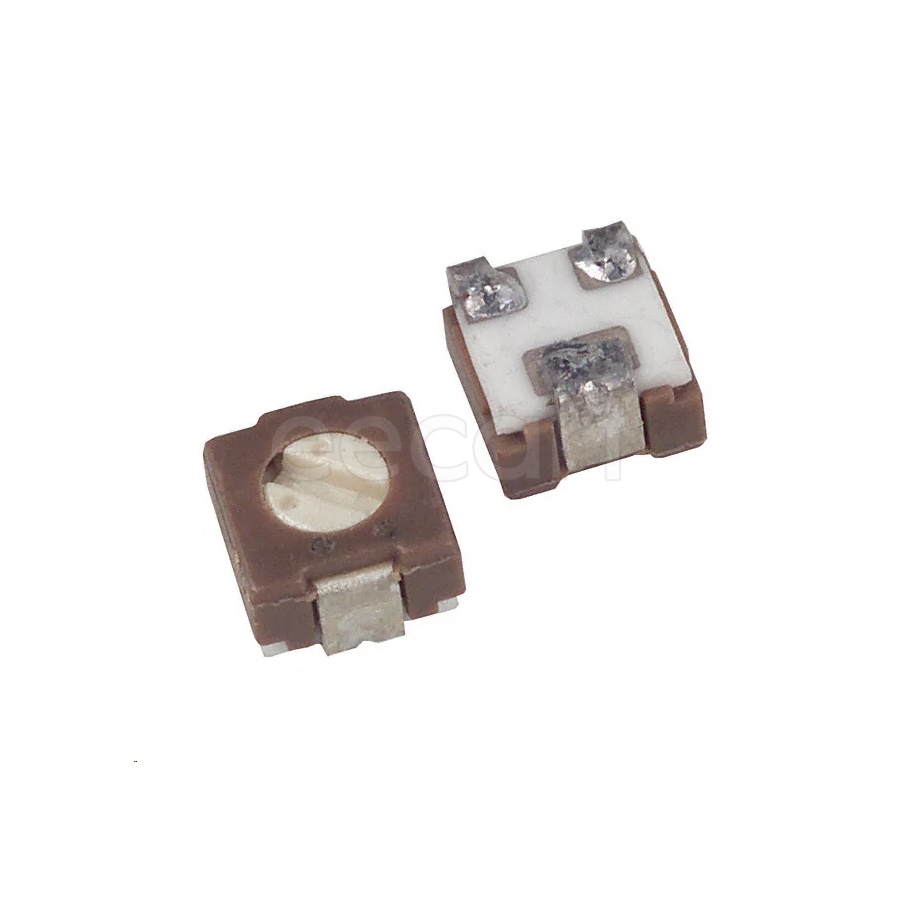

7813J-1-051E
Manufacturer:
Bourns
Mfr.Part #:
7813J-1-051E
Datasheet:
Description:
Rotary Switches SMD/SMT Number of Positions:2 Number of Decks:1 Current Rating:100 mA Screwdriver Slot
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 16 V |
| Length | 3.2004 mm |
| Termination | J-Bend |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Height | |
| Depth | 3.5 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Current Rating | 100 mA |
| Max Current Rating | 100 mA |
| Max Voltage Rating (DC) | 16 V |
| Orientation | Straight |
| Actuator Length | 0 m |
| Number of Poles | 1 |
| Throw Configuration | SPDT |
| Number of Positions | 2 |
| Contact Resistance | 2 Ω |
| Max Voltage Rating (AC) | 16 V |
| Illumination Type | Illuminated |
| Mechanical Life | 50 cycles |
| Number of Poles per Deck | 1 |
| Number of Decks | 1 |
| Contact Current Rating | 100 mA |
| Actuator Type | Screwdriver Slot |
| Washable | No |
| Contact Style | Non-Shorting |
| Packaging | Reel |
| Termination Style | SMD/SMT |
