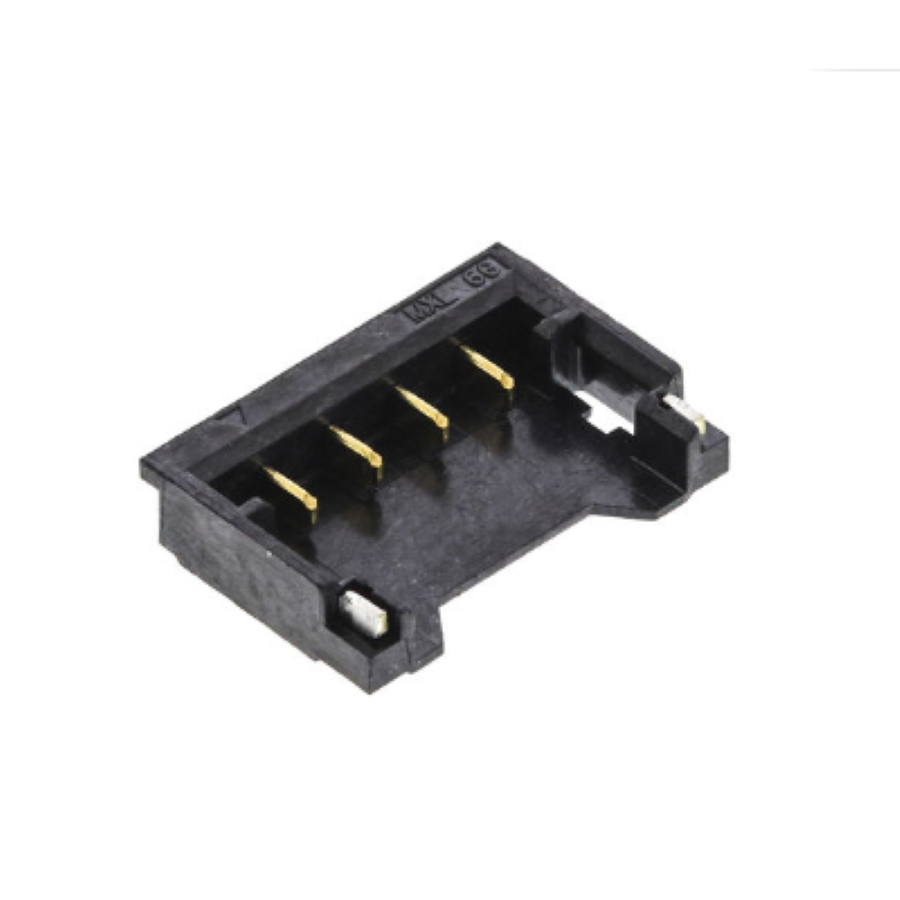

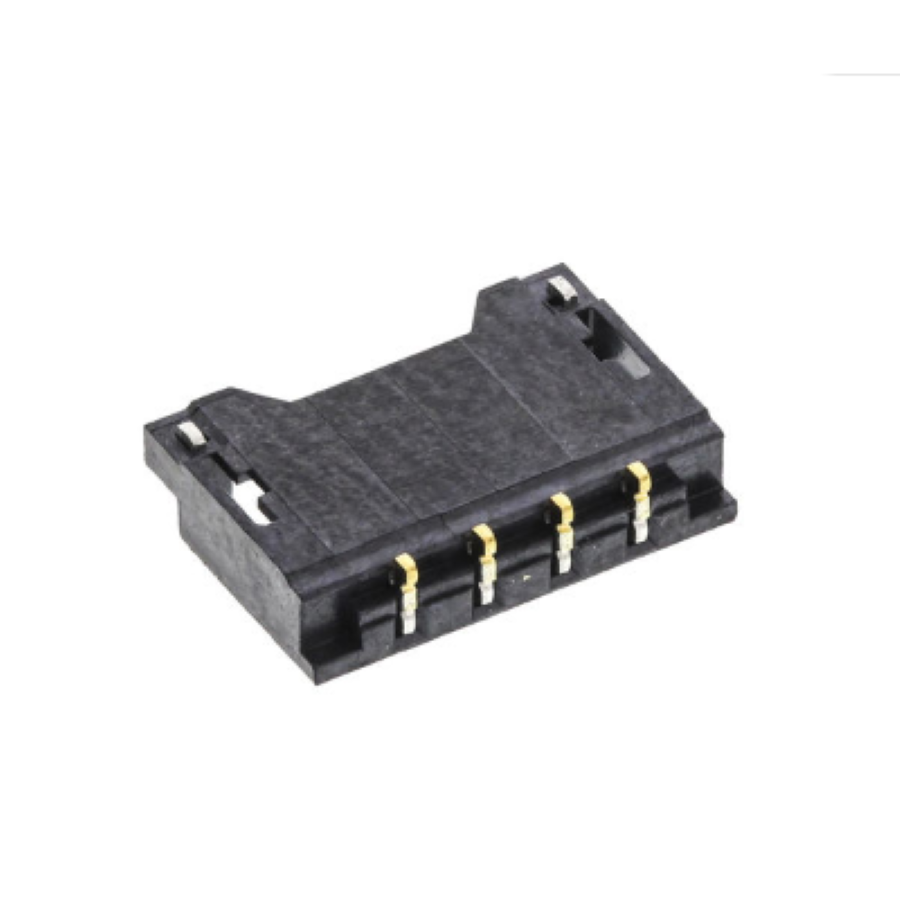

78171-0004
Manufacturer:
Molex
Mfr.Part #:
78171-0004
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Plug Number of Positions:4 Pitch:1.2 mm
| Parameter | Value |
|---|---|
| Length | 6.6 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Voltage Rating (AC) | 50 V |
| Number of Pins | 4 |
| Packaging | Reel |
| Voltage Rating | 50 V |
| Depth | 4.5 mm |
| Halogen Free | Low Halogen |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Copper |
| Pitch | 1.2 mm |
| Current Rating | 1.5 A |
| Number of Circuits | 4 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Gender | Pin (Male) |
| Number of Contacts | 4 |
| Connector Type | Plug |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Housing Material | Polymer |
| Contact Resistance | 20 mΩ |
| Max Voltage Rating (AC) | 50 V |
| Housing Color | Black |
| Plating | Gold |
| glow wire compliant | Non-compliant |
| Contact Gender | Female |
| Schedule B | 8536694040 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | TW |
Stock: 45264
Distributors
pcbx
pcbxUnit Price$0.20006
Ext.Price$0.20006
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.20006 | $0.20006 |
| 10 | $0.17440 | $1.74400 |
| 50 | $0.16473 | $8.23650 |
| 100 | $0.15560 | $15.56000 |
| 500 | $0.14680 | $73.40000 |
| 1000 | $0.13850 | $138.50000 |
| 3000 | $0.12870 | $386.10000 |
| 5000 | $0.11960 | $598.00000 |
| 10000 | $0.11114 | $1111.40000 |
