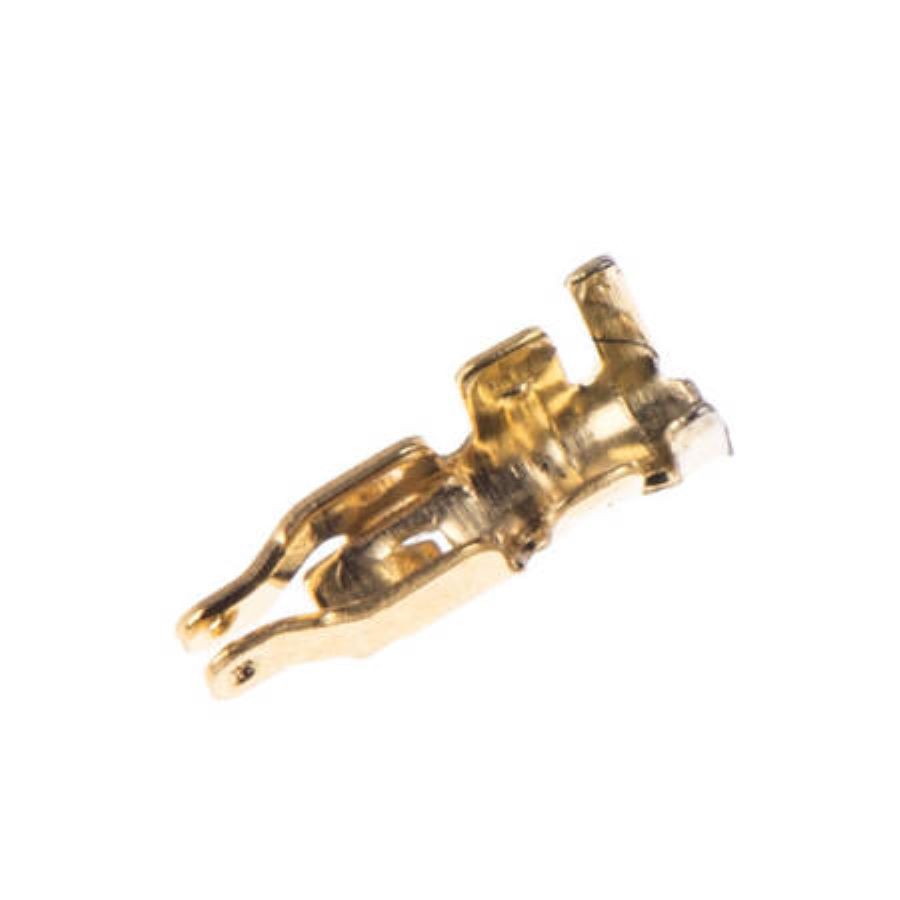

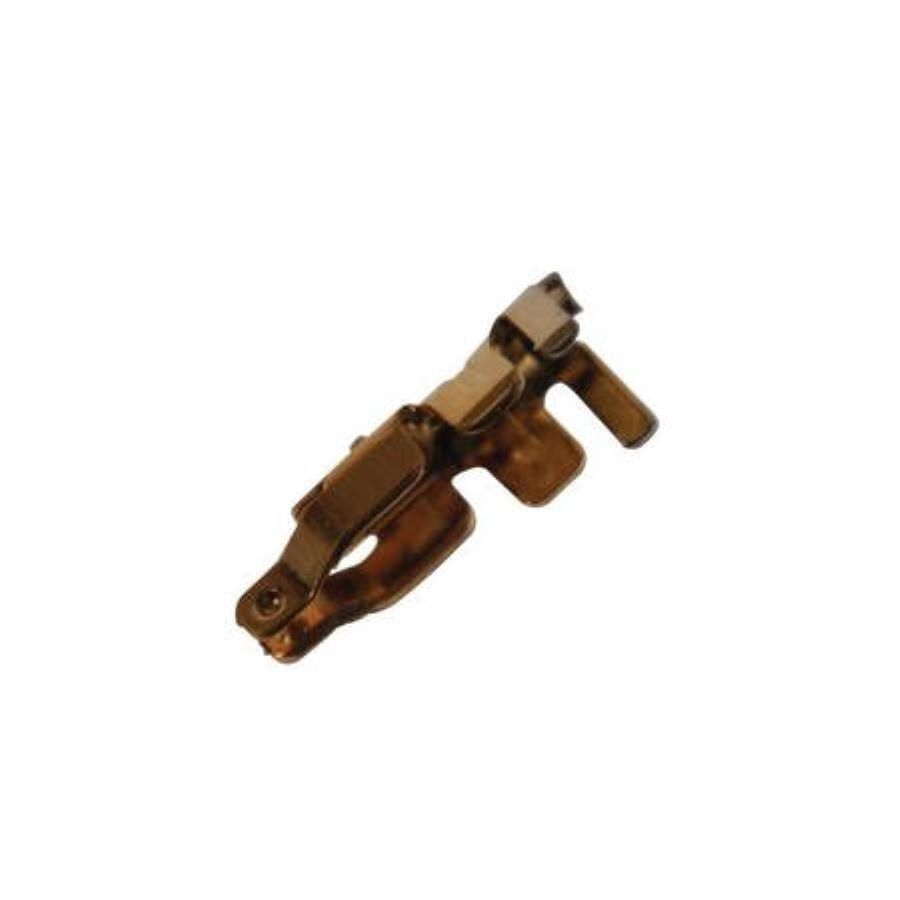

78172-0410
Manufacturer:
Molex
Mfr.Part #:
78172-0410
Datasheet:
Description:
Headers and Wire Housings Free Hanging, Plug-In Connector, PCB, Receptacle, Signal
| Parameter | Value |
|---|---|
| Length | 3.1 mm |
| Termination | Crimp |
| Height | 1.1 mm |
| Packaging | Reel |
| Voltage Rating | 50 V |
| Depth | 1.25 mm |
| Halogen Free | Low Halogen |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Weight | 58.003124 mg |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze, Gold |
| Current Rating | 1.5 A |
| Max Current Rating | 1.5 A |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Gender | Female |
| Shielding | Unshielded |
| Number of Contacts | 1 |
| Connector Type | Connector, PCB, Receptacle, Signal |
| Wire/Cable Gauge | 30 AWG |
| Number of Rows | 1 |
| Contact Resistance | 20 mΩ |
| Wire Gauge (Max) | 28 AWG |
| Wire Gauge (Min) | 30 AWG |
| Plating | Gold |
| glow wire compliant | Non-compliant |
| Contact Gender | Female |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
Stock: 111240
Distributors
pcbx
pcbxUnit Price$0.17282
Ext.Price$0.17282
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.17282 | $0.17282 |
| 10 | $0.08641 | $0.86410 |
| 50 | $0.06647 | $3.32350 |
| 100 | $0.05113 | $5.11300 |
| 500 | $0.03933 | $19.66500 |
| 1000 | $0.03025 | $30.25000 |
| 3000 | $0.02327 | $69.81000 |
| 5000 | $0.01790 | $89.50000 |
| 10000 | $0.01377 | $137.70000 |
| 30000 | $0.01377 | $413.10000 |
| 50000 | $0.01317 | $658.50000 |
