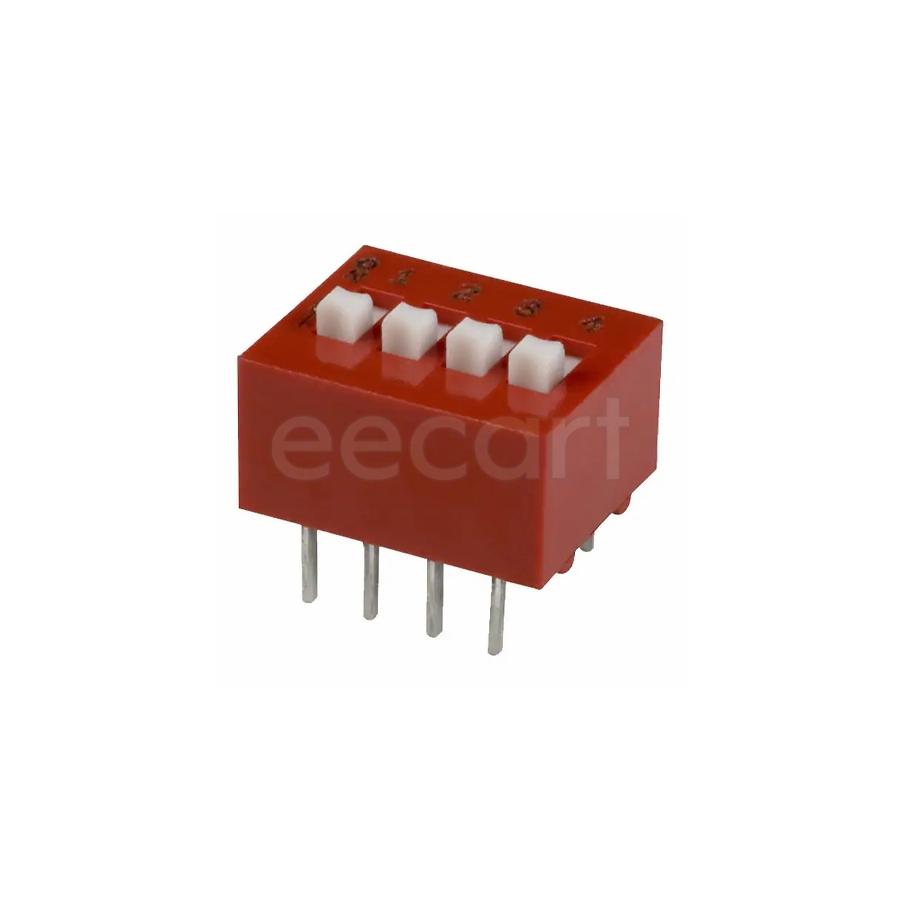

78B04ST
Manufacturer:
Grayhill
Mfr.Part #:
78B04ST
Datasheet:
Description:
DIP Switches Through Hole SPST Number of Positions:4 Current Rating:150 mA Slide
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 30 V |
| Length | 12.192 mm |
| Termination | PC Pin |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Height | 8 mm |
| Circuit Type | SPST |
| Packaging | Tube |
| Voltage Rating | 50 V |
| Depth | 9.65 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 5 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Lead Length | 2.54 mm |
| Contact Material(Contact Finish) | Brass, Gold |
| Pitch | 2.54 mm |
| Terminal Pitch | 2.54 mm |
| Current Rating | 150 mA |
| Max Current Rating | 150 mA |
| Max Voltage Rating (DC) | 30 V |
| Number of Circuits | 4 |
| Orientation | Straight |
| Body Material | Thermoplastic |
| Actuator Length | 1.27 mm |
| Throw Configuration | SPST |
| Number of Positions | 4 |
| Contact Resistance | 30 mΩ |
| Electrical Life | 2 kcycles |
| Mechanical Life | 2 kcycles |
| Contact Current Rating | 150 mA |
| Actuator Type | Slide |
| Washable | Yes |
Stock: 241
Distributors
pcbx
pcbxUnit Price$2.92899
Ext.Price$2.92899
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.92899 | $2.92899 |
| 10 | $2.92215 | $29.22150 |
| 25 | $2.59696 | $64.92400 |
| 50 | $2.30796 | $115.39800 |
| 100 | $2.05112 | $205.11200 |
| 300 | $1.82286 | $546.85800 |
| 500 | $1.62000 | $810.00000 |
| 1000 | $1.43970 | $1439.70000 |
