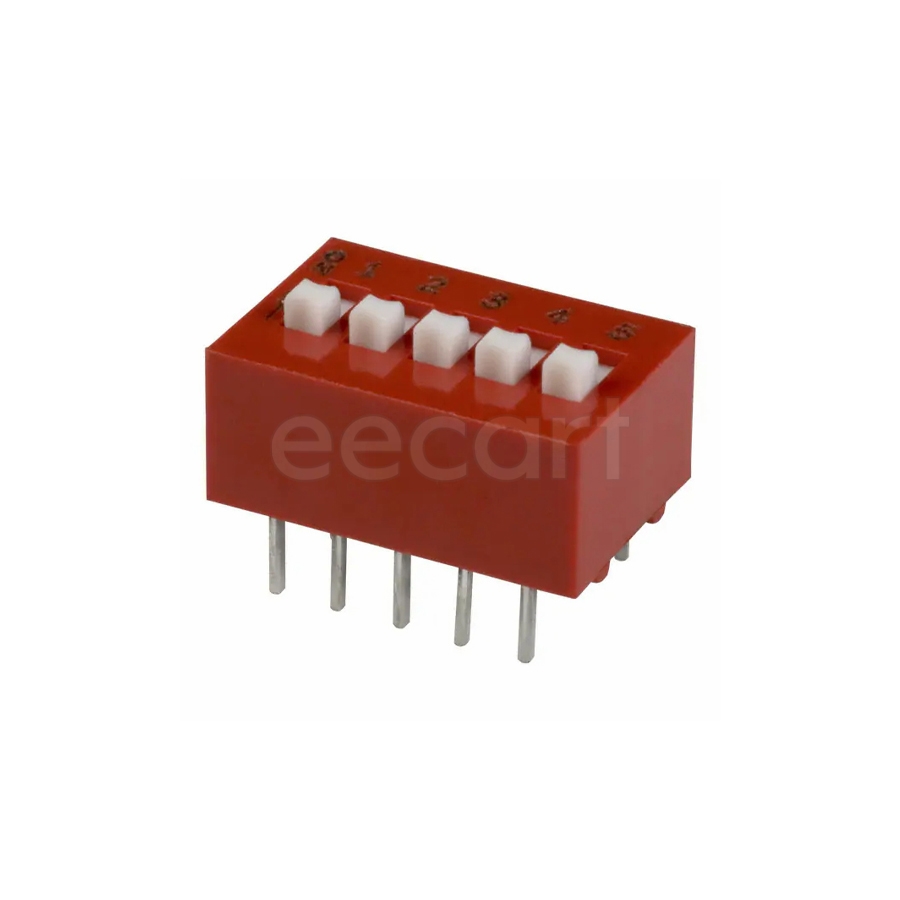

78B05ST
Manufacturer:
Grayhill
Mfr.Part #:
78B05ST
Datasheet:
Description:
DIP Switches Through Hole SPST Number of Positions:5 Current Rating:150 mA Slide
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 30 V |
| Length | 14.732 mm |
| Termination | PC Pin |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Height | 8 mm |
| Circuit Type | SPST |
| Packaging | Tube |
| Depth | 9.65 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Copper Alloy |
| Pitch | 2.54 mm |
| Terminal Pitch | 2.54 mm |
| Current Rating | 150 mA |
| Max Current Rating | 150 mA |
| Max Voltage Rating (DC) | 30 V |
| Orientation | Straight |
| Body Material | Thermoplastic |
| Actuator Length | 1.27 mm |
| Throw Configuration | SPST |
| Number of Positions | 5 |
| Electrical Life | 2 kcycles |
| Mechanical Life | 2 kcycles |
| Actuator Type | Slide |
| Washable | Yes |
Stock: 404
Distributors
pcbx
pcbxUnit Price$3.62319
Ext.Price$3.62319
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $3.62319 | $3.62319 |
| 10 | $3.59241 | $35.92410 |
| 25 | $3.31795 | $82.94875 |
| 50 | $3.06446 | $153.22300 |
| 100 | $2.83033 | $283.03300 |
| 300 | $2.61409 | $784.22700 |
| 500 | $2.41437 | $1207.18500 |
| 1000 | $2.22991 | $2229.91000 |
| 3000 | $2.05954 | $6178.62000 |
| 5000 | $1.90222 | $9511.10000 |
