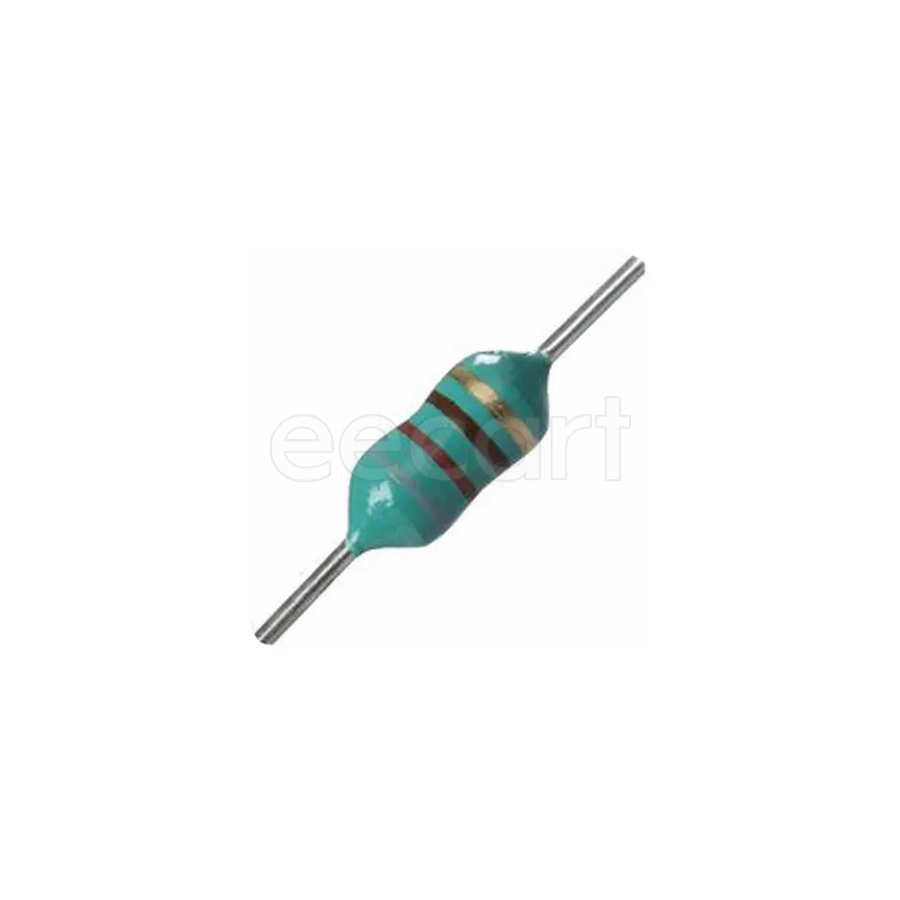

78F102J-RC
Manufacturer:
Bourns
Mfr.Part #:
78F102J-RC
Datasheet:
Description:
Fixed Inductors 7.11mmL×2.79mmD Through Hole 1 mH 5 % 60 mA 31.4 Ω
| Parameter | Value |
|---|---|
| Tolerance | 5 % |
| Length | 7.11 mm |
| Termination | Axial |
| Diameter | 2.79 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 2 |
| Resistance | 26 Ω |
| Height | 7.11 mm |
| Packaging | Bulk |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Diameter | 510 µm |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Lead/Base Style | Axial |
| Self Resonant Frequency | 1.2 MHz |
| Q Factor | 60 |
| Current Rating | 60 mA |
| DC Resistance (DCR) | 31.4 Ω |
| Test Frequency | 790 kHz |
| Military Standard | Not |
| Shielding | Unshielded |
| Inductance | 1 mH |
| Core Material | Ferrite |
| inductance tolerance | 5 % |
| Max DC Current | 60 mA |
| DC Current | 60 mA |
| Type | Wirewound |
Stock: 4869
Distributors
pcbx
pcbxUnit Price$0.13166
Ext.Price$0.13166
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.13166 | $0.13166 |
| 10 | $0.10857 | $1.08570 |
| 50 | $0.09872 | $4.93600 |
| 100 | $0.08977 | $8.97700 |
| 500 | $0.08143 | $40.71500 |
| 1000 | $0.07387 | $73.87000 |
| 3000 | $0.07068 | $212.04000 |
| 5000 | $0.06763 | $338.15000 |
