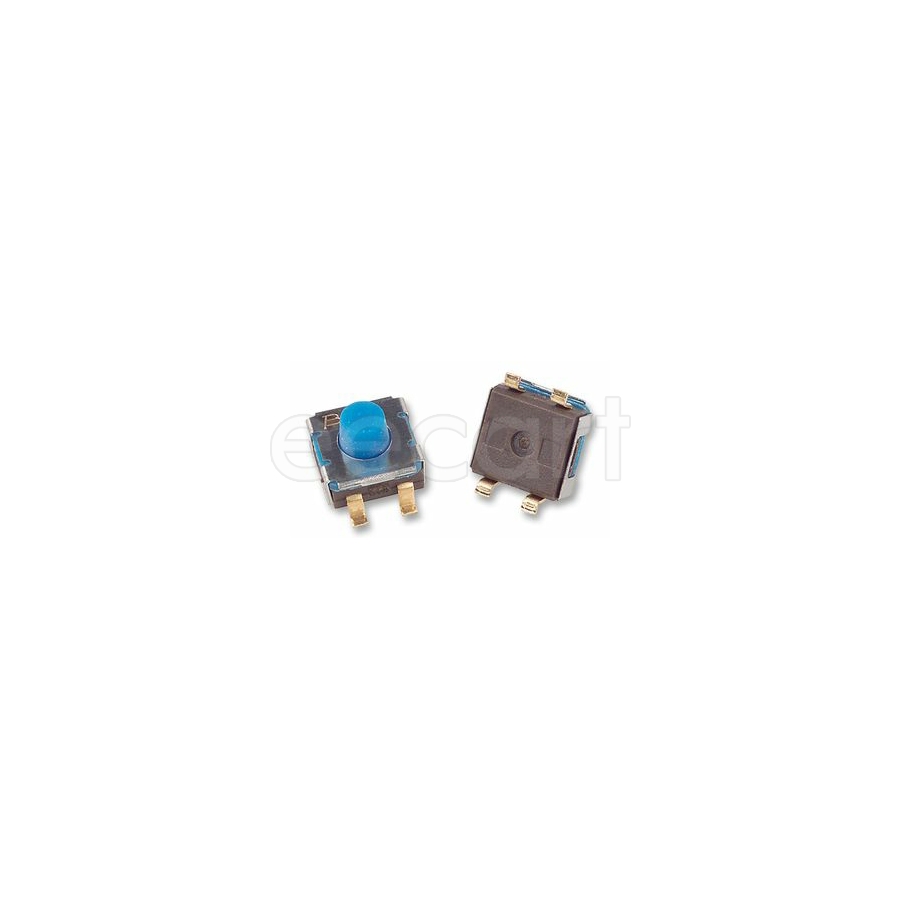

7914J-1-000
Manufacturer:
Bourns
Mfr.Part #:
7914J-1-000
Datasheet:
Description:
Tactile Switches SMD/SMT SPST-NO Off-Mom 2.94 N
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 16 V |
| Length | 5 mm |
| Width | 4.5 mm |
| Termination | J-Hook |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Height | 4.79 mm |
| Circuit Type | SPST-NO |
| Depth | 5 mm |
| RoHS | Compliant |
| Insulation Resistance | 100 MΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Silver |
| Contact Material(Contact Finish) | Gold |
| Current Rating | 100 mA |
| Max Current Rating | 100 mA |
| Max Voltage Rating (DC) | 16 V |
| Orientation | Straight |
| Actuator Length | 1.65 mm |
| Throw Configuration | SPST |
| Contact Resistance | 100 mΩ |
| Max Voltage Rating (AC) | 16 V |
| Switch Function | Off-Mom |
| Illumination Type | Illuminated, Non-Illuminated |
| Operating Force | 2.94 N |
| Actuator Material | Rubber |
| Mechanical Life | 100 kcycles |
| Contact Current Rating | 100 mA |
| Life (Cycles) | 500 kCycles |
| Packaging | Tube |
| Actuator Type | Standard |
Stock: 914
Distributors
pcbx
pcbxUnit Price$0.60700
Ext.Price$0.60700
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.60700 | $0.60700 |
| 10 | $0.53006 | $5.30060 |
| 25 | $0.46423 | $11.60575 |
| 50 | $0.44946 | $22.47300 |
| 100 | $0.43516 | $43.51600 |
| 300 | $0.40056 | $120.16800 |
| 500 | $0.36871 | $184.35500 |
| 1000 | $0.33940 | $339.40000 |
| 3000 | $0.33118 | $993.54000 |
| 5000 | $0.32316 | $1615.80000 |
