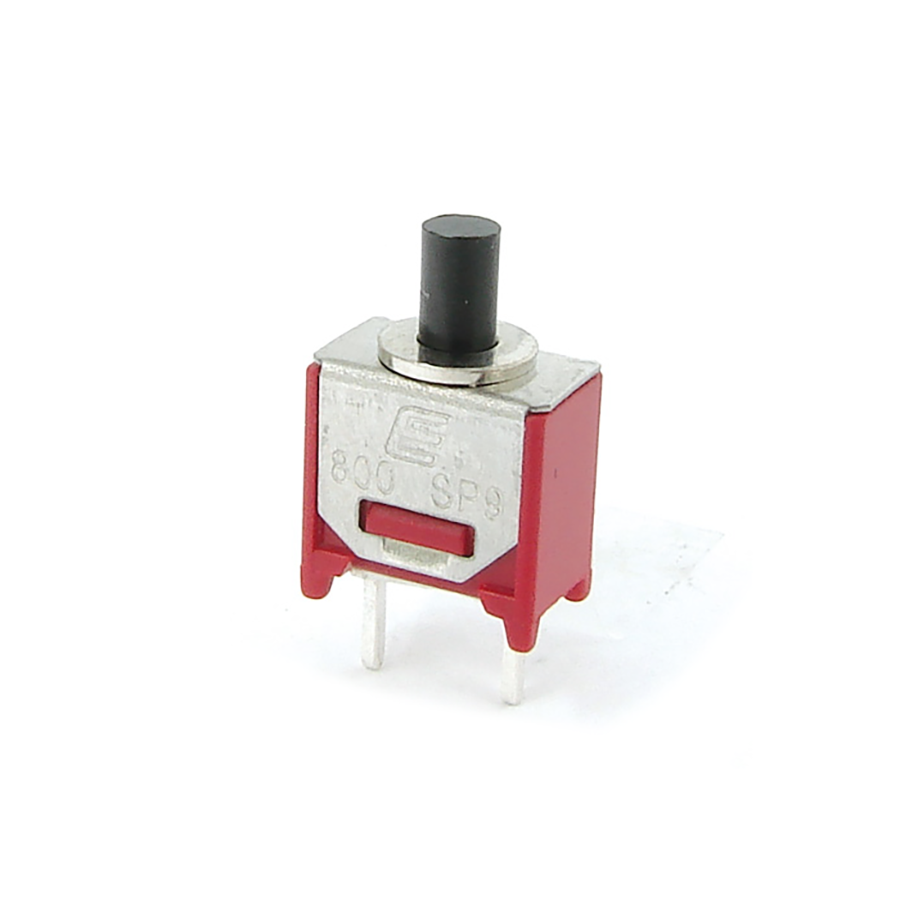

800SP9B6M6RE
Manufacturer:
E-Switch
Mfr.Part #:
800SP9B6M6RE
Datasheet:
Description:
Pushbutton Switches Through Hole SPST-NO Off-Mom Round, Plunger Non-Illuminated Standard Current Rating:400 mA
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 20 V |
| Length | 8.13 mm |
| Width | 5.08 mm |
| Termination | PC Pin |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -30 °C |
| Voltage Rating (AC) | 20 V |
| Power Rating | 400 mW |
| Circuit Type | SPST-NO |
| Packaging | Bulk |
| RoHS | Compliant |
| Contact Plating | Gold |
| Type | Standard |
| Current Rating | 400 mA |
| Max Voltage Rating (DC) | 20 V |
| Orientation | Right Angle |
| Actuator Length | 3.53 mm |
| Throw Configuration | SPST |
| Housing Material | Stainless Steel |
| Contact Resistance | 20 mΩ |
| Max Voltage Rating (AC) | 20 V |
| Switch Function | Off-Mom |
| Illumination Type | Non-Illuminated |
| Electrical Life | 50 kcycles |
| Mechanical Life | 50 kcycles |
| Contact Current Rating | 3 A |
| Actuator Type | Round, Plunger |
| Termination Style | PC Pin |
| IP Rating(Ingress Protection) | IP67 |
| Cap Color | Black |
Stock: 1471
Distributors
pcbx
pcbxUnit Price$2.18434
Ext.Price$2.18434
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.18434 | $2.18434 |
| 10 | $2.00224 | $20.02240 |
| 25 | $1.89025 | $47.25625 |
| 50 | $1.73380 | $86.69000 |
| 100 | $1.69618 | $169.61800 |
| 300 | $1.60597 | $481.79100 |
| 500 | $1.52056 | $760.28000 |
| 1000 | $1.43970 | $1439.70000 |
